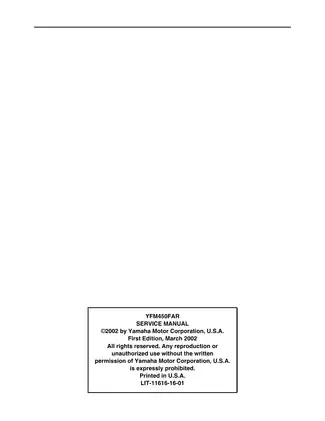

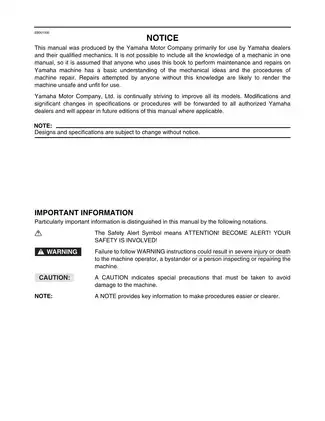

2003–2006 Yamaha YFM450FAR Kodiak 450 Service Manual (P/N LIT-11616-16-01)

• Coverage and document identity: Covers the Yamaha Kodiak 450 YFM450FAR, model codes 5ND1 and 5ND5. This is a 373-page PDF of Yamaha’s First Edition service manual dated March 2002, literature number LIT-11616-16-01, with cover code 5ND-F8197-10.
• Engine repair: Covers engine removal and installation plus top- and bottom-end service for the cylinder head, valve train, cylinder and piston, crankcase, crankshaft, oil pump, recoil starter, and A.C. magneto.
• V-belt transmission and clutch work: Documents the primary and secondary sheaves, V-belt, wet centrifugal clutch, internal transmission, park mechanism, and middle gear, including teardown, inspection, reassembly, shim selection, and backlash measurement.
• Four-wheel-drive and final-drive diagnosis: Details the front constant-velocity joints, gear-motor-controlled differential, 2WD/4WD/Diff-Lock operation checks, differential gear lash, rear axle, final drive, and drive shaft.
• Cooling and carburetion procedures: Provides radiator and cap testing, thermostat inspection, water pump mechanical-seal service, Mikuni BSR33 carburetor disassembly, and float-height and fuel-level adjustment.
• Chassis, steering, suspension, and brake service: Walks through wheel, hub, and brake-disc inspection; front and rear master cylinder and caliper repair; brake bleeding; and service of the steering stem, tie rods, steering knuckles, front arms, shock absorbers, and swingarm.
• Electrical fault tracing: Uses separate circuit diagrams and component tests to diagnose the D.C. CDI ignition, electric starting, charging, lighting, signal, fan/cooling, and 2WD/4WD selecting systems, followed by the complete machine wiring diagram.

Document Structure and Repair Coverage

The manual is organized around the liquid-cooled, forward-inclined 421cc SOHC single-cylinder engine used in the covered 5ND1 and 5ND5 machines. It goes well beyond periodic maintenance. The engine, drive train, chassis, and electrical chapters carry major jobs from removal and disassembly through inspection, reassembly, installation, adjustment, and final checks. Related torque tables, clearances, and wear limits are placed close to the repair procedures where they are needed.

Most removal and teardown sections begin with an exploded view and a numbered job-sequence table. Part names, quantities, service notes, lubricant symbols, replacement marks, and tightening references remain tied to the illustration. That layout is particularly useful when working through the engine, sheaves, differential, final drive, brakes, and steering, where assembly order and component orientation matter.

Periodic inspection and adjustment coverage includes valve clearance, idle and throttle controls, ignition-timing and compression checks, engine oil, coolant, V-belt inspection, and hydraulic brake bleeding. Separate procedures address select-lever cable and shift-rod adjustment, final and differential gear oil, toe-in, battery and fuse inspection, and headlight aiming.

A dedicated troubleshooting chapter groups likely causes for hard starting, poor idle or high-speed performance, abnormal drive train operation, shifting and clutch faults, overheating, weak braking, suspension problems, unstable handling, and lighting complaints. This gives technicians and experienced owners a factory fault-isolation reference before parts are removed or replaced.

Specifications, Diagrams, and Maintenance Data

Factory tables provide component-specific torque specifications, fluid capacities and approved lubricant types, inspection limits, clearances, carburetor adjustment data, middle-, final-, and differential-gear lash specifications, brake service data, and electrical voltage, resistance, amperage, and continuity values.

Electrical diagnosis is not limited to the final harness drawing. The manual supplies individual circuit diagrams and troubleshooting charts for the ignition, electric starter, charging, lighting, signal, cooling-fan, and 2WD/4WD selecting systems. Switch-continuity tables, bulb and socket checks, connector references, and component test specifications support circuit-level fault tracing.

Useful technical drawings include the Coolant Flow Diagrams, Oil Flow Diagrams, cable-routing layouts, front-differential 2WD/4WD/Diff-Lock operation views, gear-lash measurement setups, system circuit diagrams, and the full-page YFM450FAR Wiring Diagram with connector layouts and wire-color codes.

Special-tool callouts identify the crankcase separating tool YU-01135-A / 90890-01135, sheave holder YU-01880 / 90890-01701, sheave spring compressor YM-04134 / 90890-04134, gear-lash measurement tool YM-01475 / 90890-01475, and pocket tester YU-03112 / 90890-03112. These references show which repair operations call for Yamaha-specific holding, pressing, measuring, or electrical test equipment.

Manual-Specific Repair Notes

The middle driven-shaft and final-drive bearing retainers use left-hand threads. Treating them like conventional retainers can damage the threads or surrounding components. The front-differential gear motor must also remain correctly indexed to the shift-fork sliding gear; losing that relationship can leave the indicator out of sync with the actual 2WD or Diff-Lock position and prevent the selected mode from engaging.

Yamaha identifies the internal differential gear assembly as a factory-assembled unit rather than a field-disassembly item. Brake repair also depends on correct hose routing and uncontaminated specified fluid. Cooling-system work involves hot, pressurized coolant, while some electrical diagnosis requires live-circuit testing. Follow established ATV workshop safety practices or use a qualified technician when a repair exceeds your training or equipment.
