Ski-Doo RF Series 2007 Snowmobile Shop Manual (P/N 484 200 080)
628 Pages • ZIP Download: 3 Printable PDFs • 327.37 MB
Ski-Doo Models Covered & Key Technical Specifications
Models: Expedition Sport 550F, Expedition Sport V800, Freestyle Back Country 550F, Freestyle Park 550F, Freestyle Session 300F, Freestyle Session 550F, Legend Touring V800, Legend Trail V800, Tundra 300F, Tundra V800
Sub-models / Variants: 300F, 550F, V800 (B.U.D.S. variant: Platform RF)
Trade Names: Ski-Doo RF Series
Model Year: 2007
-
Engine types: 277 (300F), 552 (550F), V810 (V800; covered under Engine (810))
-
Oil system leak-test pressure: 21 kPa (3 PSI) for 300F/550F models
-
Torque reference: M14 fasteners at 12.9 grade specified at 200 Nm (148 lbf-ft)
-
Maintenance interval: 500 km (300 mi) initial check
-
Drive / reverse variants: 300F/550F — Bombardier Lite drive pulley, LPV 27 driven pulley, Rotax Electronic Reverse (RER); V800 — TRA IV drive pulley, LPV VSA driven pulley, mechanical reverse
Ski-Doo Manual Features & Selected Content Preview
The 2007 Ski-Doo RF Series shop manual (P/N 484 200 080) covers the listed Expedition Sport, Freestyle Back Country/Park/Session, Legend Touring/Trail, and Tundra models in their specified 300F, 550F, and V800 configurations.
Text Search, Bookmarks, and Wiring Detail
Navigation and diagram readability: None of the three PDFs supports text search. The main manual has section bookmarks, although some labels and destinations are imprecise; both wiring PDFs have page bookmarks. Small V800 schematic labels are readable when enlarged. Some 300F/550F labels and wire lines remain faint or incomplete at higher magnification.

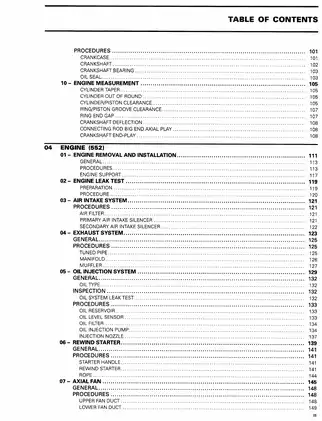

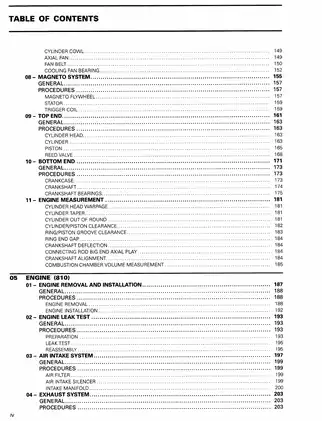

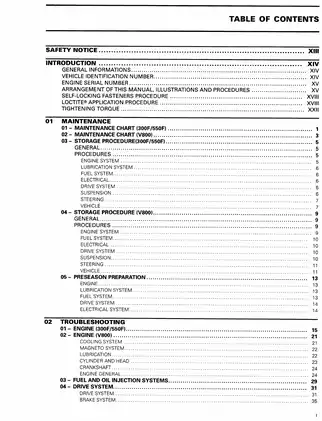

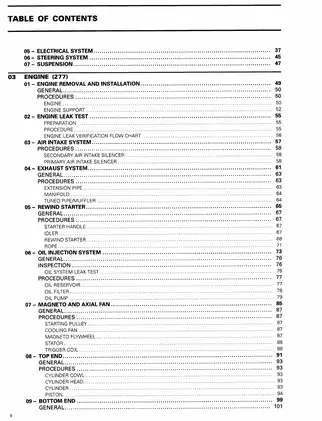

The ZIP download contains three printable PDFs: the 617-page shop manual, a 6-page Legend/Tundra (V800) wiring PDF, and a 5-page Freestyle/Tundra/Expedition (300F/550F) wiring PDF. The 628-page total includes the original cover, 22 pages of front matter, 19 blank pages, and one repeated page.
Rotax Engine, Fuel, and Drivetrain Service
This selected content overview highlights major repair areas. Additional topics include ski alignment and frame front-plate replacement.
-
Rotax engine repair: Engine removal, leak testing, top-end disassembly, crankcase repair, and crankshaft inspection in separate 277, 552, and 810 engine sections.
-
Carburetors and oil injection: 300F/550F carburetor overhaul and adjustment, 550F carburetor synchronization, and oil pump testing, bleeding, and cable adjustment.
-
V800 electronic diagnostics: B.U.D.S. fault-code tables, injector and sensor tests, ECM replacement, and the closed-throttle and idle-actuator reset procedure.
-
Pulleys and chaincases: Bombardier Lite and TRA IV drive pulley service, LPV 27 and LPV VSA driven pulley repair, alignment, and engine-specific chaincase procedures.
-
Suspension, track, and brakes: SC and SC-4 suspension removal and component replacement, track tension and alignment, brake pad and disc inspection, and hydraulic brake bleeding.
-
Electrical troubleshooting: Engine-specific ignition, charging, and starting tests, 300F/550F Rotax Electronic Reverse diagnosis, and checks for lights, instruments, and heated grips.
BRP wrote this manual for snowmobile mechanics already familiar with its service procedures and equipped with the required hand tools and special service tools.
Internal Engine Repair and Seasonal Maintenance
Separate maintenance charts and storage procedures distinguish the 300F/550F machines from the V800, with a dedicated preseason preparation section.
The 552 engine chapter includes reed-valve inspection, fan-belt adjustment, and combustion-chamber volume measurement. It explains how chamber volume determines cylinder-base gasket selection; incorrect gasket thickness can cause detonation and severe engine damage.
For the liquid-cooled SOHC V800 engine, coverage extends to valve-clearance adjustment, camshaft timing, valve-guide replacement, and crankshaft plain-bearing replacement. Step-by-step procedures also cover water-pump shaft and seal service, alongside lubrication-system inspection and oil-pressure diagnosis.
The V800 camshafts differ by cylinder. The manual warns that interchanging them can damage the engine.
B.U.D.S. Diagnostics and Fuel-System Fault Isolation
The V800 diagnostic connection instructions cover MPI and MPI-2 interfaces, including the MPI-2 (P/N 529 036 018) and supply T-harness (P/N 529 035 869). These procedures require B.U.D.S. software and compatible interface hardware. ECM replacement includes transferring vehicle information and completing the required resets.
The Fuel System Diagnostic Flow Chart connects fuel-pressure behavior with pump, injector, and leakage tests. It helps mechanics distinguish fuel-delivery faults before selecting components for replacement.
Chaincases, Suspension, and Repair Limits
The V800 chaincase chapter includes mechanical reverse linkage inspection and adjustment. Suspension procedures cover slider shoes, idler wheels, springs, and arms; general rear-suspension setup is referred to the appropriate Operator’s Guide.
The shock section explains hydraulic and HPG shock inspection and replacement decisions. BRP specifies that drive pulley repairs be performed by authorized dealers.
Electrical References and Workshop Tables
The Engine Leak Verification Flow Chart supports leak diagnosis, while the engine-side connector pinout identifies test connections. The SC-4 Front Arm and Shock Absorbers exploded view shows component relationships and fastening references.
Troubleshooting charts address drivetrain vibration, starting problems, and engine backfires. Factory tables provide torque values, lubrication requirements, fluid capacities, electrical test values, and wear and clearance limits.
Working on snowmobile drivetrains and electrical systems involves inherent physical hazards. The manual includes precautions for rotating tracks, spring-loaded pulleys, and pressurized fuel systems.
Examples of Valve Clearances and Starter Wear Limits
The V800 cylinder-head section specifies cold-engine valve clearances of 0.06–0.14 mm for intake valves and 0.11–0.19 mm for exhaust valves, alongside its adjustment procedures.
For 300F/550F electric starters, the brush inspection table distinguishes a new length of 10 mm from a 6 mm wear limit. Related instructions cover brush-holder insulation and armature testing.
