1998–2006 Honda CB600F Hornet Service & Repair Manual (P/N C4085-91017)

• Official 373-page Honda Motor Co., Ltd. service publication (P/N C4085-91017 1998) detailing the liquid-cooled DOHC inline four-cylinder engine

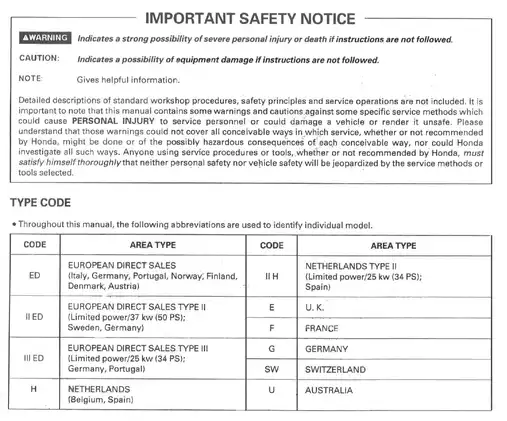

• Covers 1998–2006 CB600F Hornet models across diverse European and international variants, including market codes ED, II ED, III ED, H, II H, E, F, G, SW, and U
• Features 34 exploded-view mechanical assembly diagrams, 21 wiring and routing schematics, and 12 torque value reference tables
• Serves as the foundational reference for the entire production cycle, documenting factory-specified tolerances and maintenance procedures
• Delivers comprehensive step-by-step PDF repair sequences for valve clearance adjustments, carburetor synchronization, and front suspension overhauls
• Details exact component teardowns for the hydraulic brake network, ignition system, clutch, gearshift linkage, and crankcase

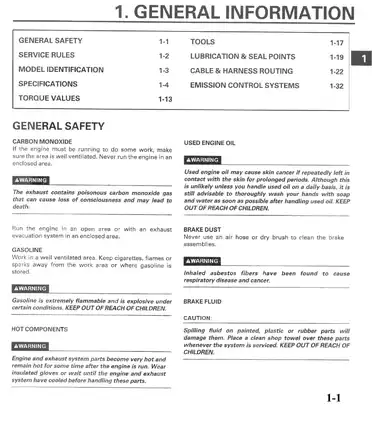

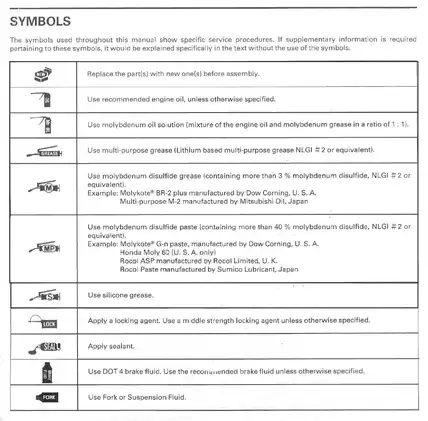

Manual Organization and Content Coverage

This factory manual documents chassis, electrical, and drivetrain specifications for the complete production run. General information chapters define model identification codes for international markets and pinpoint exact engine and frame serial number locations for quick shop verification. Detailed sections provide servicing parameters for the fuel, cooling, and lubrication systems, alongside procedures for frame body panel removal and exhaust maintenance. The technical documentation follows a logical progression by motorcycle location, starting with fundamental lubrication diagnostics before moving into complex engine, transmission, and suspension assemblies. To expedite electrical fault finding, the manual includes complete Wiring diagrams. Mechanics will also find a highly detailed lubrication system diagram, precise cable and harness routing schematics, emission control routing views, and starter clutch exploded drawings. By outlining strict factory-approved sequences for component overhauls, this documentation prevents costly dealership visits and helps independent technicians increase bay turnover rates with precise, reliable rebuilds. For systematic fault isolation, dedicated troubleshooting sections guide the user through logical testing procedures.

Specifications and Technical Highlights

Critical clearances and torque values are clearly mapped out for mechanical assessment during any major repair. For instance, the cylinder head specification table lists the intake valve clearance at 0.16 +/- 0.03 mm. In the frame and drivetrain section, the rear axle nut torque is documented at 88 N-m (65 lbf-ft). The fuel system section specifies a 13.7 mm float level to ensure consistent operation across all carburetors. When servicing these specific CB600F models, technicians should be aware that the carburetors are notoriously sensitive to vacuum leaks at the intake boots, which are frequently misdiagnosed as clogged pilot jets. Furthermore, over-torquing the cam chain tensioner bolts during routine checks can easily strip the soft aluminum cylinder head threads. Cooling system capacity is noted at 2.0 liters, alongside other essential reference values like spark plug gap settings of 0.8–0.9 mm and starter motor brush length service limits of 4.5 mm. Severe personal injury or equipment damage can occur if the specified workshop safety procedures are ignored when handling flammable fuel systems or high-tension electrical components. Always rely on these standard practices and original OEM documentation before applying any specifications to active service work.
