Polaris Phoenix 200 ATV Service & Repair Manual, 2012–2013 (P/N 9923979)

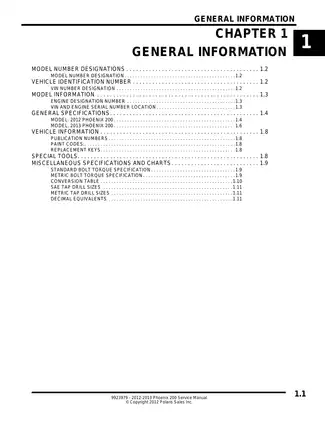

Polaris factory service publication P/N 9923979, printed August 2012, covers 2012–2013 Phoenix 200 ATVs with the ES20PFE engine, inline F/N/R transmission, non-EBS CVT, and 2x4 shaft drive. Model-number and VIN decoding, plus engine serial-number identification, support vehicle matching.

Text Search, Bookmarks and Wiring Detail

Search and diagram access: The manual’s body text is searchable, with embedded bookmarks for chapters, individual procedures, the index, and the wiring diagram. The final wiring sheet’s circuit labels are not text-searchable. Small wire codes and connector details require zooming.

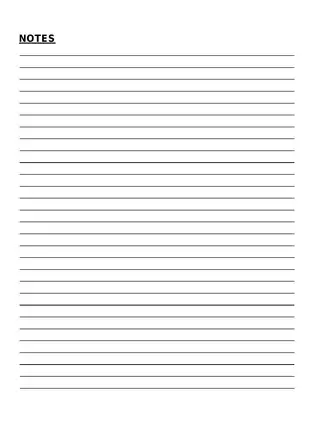

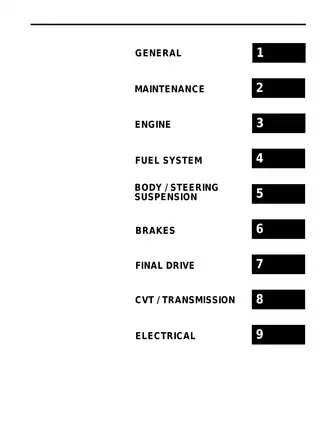

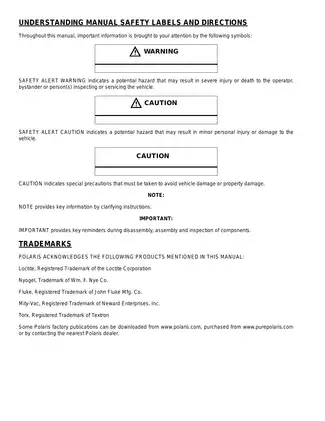

One printable English PDF contains 227 pages: four front-matter pages, 218 chapter pages, four index pages, and one wiring-diagram sheet. Six notes pages are already included in that total.

Engine, Chassis and Driveline Repair

The following selected topics show the service and repair coverage rather than the complete contents. Other procedures include spark-arrestor cleaning and headlight aiming.

• Engine repair: Engine removal and installation, top-end teardown, valve-seat reconditioning, crankcase separation, internal inspection, and reassembly.

• Carburetor service: Cleaning, float-height adjustment, needle-and-seat leak testing, fuel-level checks, and rich, lean, or poor-idle troubleshooting.

• Body and suspension: Body-panel removal, steering-spindle and ball-joint service, steering-post assembly, A-arm replacement, and front and rear shock replacement.

• Brake repair: Front hydraulic bleeding, master-cylinder removal and installation, caliper rebuilding, pad and disc service, and rear mechanical drum-brake repair.

• Final drive: Front and rear hub service, swing-arm removal, drive-shaft work, rear gearcase disassembly and assembly, and rear-axle inspection.

• CVT and transmission: Drive and driven clutch service, belt inspection, transmission teardown, input/output shaft service, output-shaft shimming, and shift-detent service.

• Electrical diagnosis: CDI ignition, Throttle Release Switch (TRS), ignition-coil and pulse-coil testing, stator/alternator checks, and starter-system diagnostic charts.

Written primarily for certified Polaris Master Service Dealer technicians in a properly equipped shop, this manual assumes mechanical knowledge, familiarity with shop procedures, and access to the specified tools.

Maintenance Planning and Adjustments

The maintenance section maps pre-ride, 25-hour, 50-hour, and 100–300-hour intervals. Severe-use provisions address mud, water, sand, heavy loads, high-RPM operation, extended idling, and short trips in cold weather. These charts and the lubrication locations provide a reference for planning regular service around operating conditions.

Coverage includes engine oil and filter changes, transmission and rear gearcase lubrication, valve-clearance checks, and compression testing. CVT drying, shift-cable adjustment, steering alignment, suspension preload, brake inspection, and wheel/hub torque checks are also documented.

Before transmission, gearcase, wheel, suspension, or brake work, secure the ATV on a stable lift or support and follow the factory safety precautions for the procedure being performed.

Internal Engine Work and Timing

Step-by-step engine procedures are supported by cam-lobe wear limits, cylinder taper and out-of-round limits, piston-to-cylinder clearances, ring end gaps, connecting-rod clearances, and crankshaft runout limits.

The crankshaft’s internal components are replaced as an assembly. The oil pump is also a non-serviceable assembly; the manual covers removal, inspection, replacement, and drive-chain installation rather than an internal pump rebuild.

Two camshaft-timing methods accommodate the stator housing being installed or removed. The repair notes warn of severe engine damage from incorrect cam-to-crank timing and oil-pressure loss if the crankshaft-end oil-passage plunger is damaged during flywheel work.

Tool references include the PA-47308 Flywheel Puller, 2871293-B Crankshaft Slotted Nut Socket, and PA-47344 Balance Shaft Slotted Nut Socket.

Carburetor Settings and Fuel Diagnosis

Throttle/TRS adjustment, choke freeplay, fuel/air mixture adjustment, and float-bowl draining are covered alongside carburetor inspection. The 2012 and 2013 jetting charts differ, so the model-year information helps select the appropriate altitude and temperature settings.

The needle-and-seat pressure test and fuel-level check support diagnosis of fuel-control problems before replacement parts are selected. Referenced tools include the 2870975 Mity-Vac pressure test tool and 2872314 Carburetor Float Adjustment Tool.

Chassis, Gearcase and Transmission Details

The chassis procedures include steering alignment and component-specific torque requirements. Incorrect tie-rod positioning during jam-nut tightening can damage the rod ends, leading to premature wear or breakage.

Rear gearcase assembly includes bevel-gear shimming, while the transmission’s output-shaft shimming procedure sets pinion depth and provides no backlash adjustment. These are separate procedures for different assemblies.

CVT reference data includes belt-width, clutch-friction, and driven-spring inspection limits. Brake tables distinguish front-pad, disc, and rear-shoe wear measurements; lubrication sections provide fuel, engine-oil, transmission, and rear gearcase capacity data.

Special-tool references include the PA-47310 Swing Arm Pivot Bolt Removal Tool, PA-47360 Gearcase Input Shaft Collar Tool, and PA-47309 Transmission Shaft Collar Tool.

Electrical Tests and Illustrated References

Charging-system diagnosis includes stator-leg resistance and output tests, key-off current-draw checks, and the charging “break even” test. Starter voltage-drop testing helps locate resistance at connections; battery coverage includes load and conductance testing. The starter motor is replaced as a complete service part.

Illustrated references include the Engine Exploded View, Oil Flow Diagram, and Throttle Opening vs. Fuel Flow chart. The Caliper / Master Cylinder Exploded View, Rear Gearcase - Exploded View, and Electrical Components Exploded View support assembly identification alongside ignition, charging, and starter diagnostic flowcharts.

A Sample of Engine Inspection Specifications

For the ES20PFE engine, the compression reference is 160–190 psi, with readings affected by cranking speed because of the automatic compression release. The cylinder-leakage service limit is 10%.

The cylinder-head inspection data specifies a 0.05 mm (0.002 in.) warpage limit. Intake and exhaust valve-clearance procedures specify 0.07 mm (0.003 in.), illustrating the adjustment detail provided alongside the internal inspection tables.
