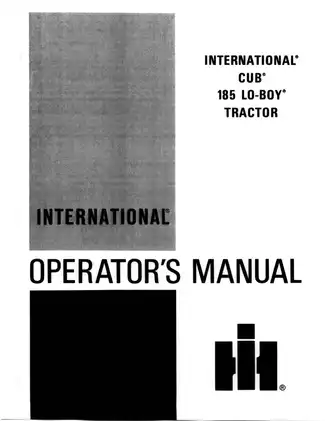

International Cub 185 Lo-Boy Tractor Operator’s Manual, 1970s–1980s (P/N 1 084 466 R1)

International Harvester Operator’s Manual, P/N 1 084 466 R1, August 1975 issue, for the International Cub 185 Lo-Boy tractor. It covers operation, lubrication, routine maintenance, and equipment setup. This is not a full shop repair manual; internal engine, transmission, final-drive, hydraulic-pump, and steering-gear overhaul require separate service documentation.

Printable PDF and Section Access

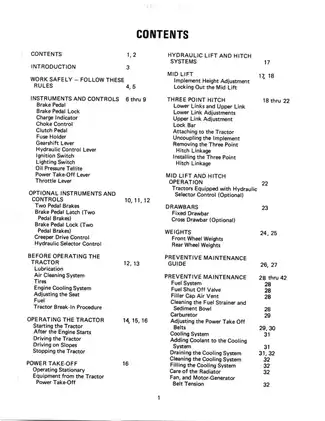

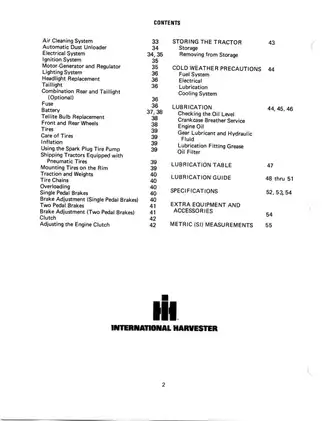

Text search and bookmarks: PDF text search is not available. Two embedded bookmarks open the additional cover and the manual’s front cover; individual chapters are not bookmarked. Use the printed contents pages to locate sections.

One printable, English-language 60-page PDF, 8.38 MB. The total includes the 59-page IH publication and one additional front-cover page.

Tractor Operation, Hitch Setup, and Routine Service

The following selected topics show the manual’s coverage rather than reproduce its full contents. Additional subjects include seat adjustment and use of the spark-plug tire pump.

• Controls and operation: Starting, break-in, gear selection, direct and creeper ranges, slope operation, braking, shutdown, and stationary PTO work.

• Hydraulic lift and hitch: Mid-lift height adjustment, three-point hitch leveling, restraining chains, float lockout, lock-bar setup, and linkage removal and installation.

• Implement compatibility: Category I hitch mounting dimensions, tractor-specific PTO requirements, fixed and optional cross drawbars, and front and rear wheel weights.

• Engine maintenance: Fuel-strainer and sediment-bowl cleaning, carburetor idle adjustment, cooling-system care, air-cleaner servicing, and automatic dust-unloader inspection.

• Electrical service: Distributor and spark-plug maintenance, motor-generator and regulator information, lighting and fuse replacement, battery care, and booster-battery precautions.

• Chassis and lubrication: Single- and two-pedal brake adjustment, engine-clutch adjustment, front-wheel toe-in, belt servicing, lubrication maps, schedules, and fluid specifications.

This manual is suited to owners and operators handling routine upkeep, with illustrated controls and maintenance instructions; the schedule identifies valve checks and cylinder-head bolt service for an IH dealer.

Controls, Driving, and PTO Use

The instrument section identifies the brake pedal and lock, clutch, gearshift, hydraulic and PTO levers, ignition and lighting switches, throttle, choke, charge indicator, and oil-pressure Tellite. Separate optional-control pages explain the creeper drive, two-pedal brakes, and hydraulic selector.

Pre-operation checks address lubrication, air cleaning, tires, coolant, seat position, and fuel. Starting instructions explain the clutch and PTO safety switches. Operating guidance distinguishes normal and creeper-range applications and explains why the two brake pedals must be latched together for transport.

PTO compatibility: The PTO does not conform to ASAE/SAE standards and is restricted to driven implements made specifically for this tractor. Category I hitch compatibility alone does not establish PTO compatibility.

Mid Lift, Three-Point Hitch, and Drawbars

The lift chapters explain how the mid lift and optional three-point hitch share hydraulic control. Without the optional selector, one lift system must be mechanically locked out while the other operates; the selector provides alternate hydraulic operation.

Lower-link mounting positions, leveling screws, upper-link length, restraining chains, float-lockout pins, and the lock bar are explained in relation to implement setup. Drawings identify the links, rockshaft arms, hydraulic cylinder, pivot pins, and mounting points so the installed configuration can be checked before use.

The optional cross drawbar requires a clevis-type implement hitch and is not for PTO equipment. Wheel-weight instructions address steering control and traction. Raised or PTO-driven equipment must be lowered, securely blocked, and shut down before adjustment or disconnection.

Preventive Maintenance and Adjustments

The maintenance guide begins with first-10-hour service and continues through 500-hour and periodic work. Illustrated procedures include step-by-step instructions for fuel-strainer cleaning, oil-filter replacement, and belt removal and replacement.

Cooling and air cleaning: The thermo-siphon cooling system uses neither a thermostat nor a water pump. Coverage includes draining, flushing, refilling, radiator care, and fan/motor-generator belt tension. Air-cleaner servicing identifies IH compressed-air cleaning tool 407 073 R1 and explains element replacement and dust-unloader orientation.

Ignition and electrical equipment: Distributor service includes breaker-point adjustment and timing checks with a power timing light. Component and cable-location illustrations support ignition, charging, lighting, fuse, battery, and Tellite service; there is no complete wiring schematic. Booster-battery guidance warns that reversed polarity can permanently damage electrical components.

Service cautions: A blocked metering passage in the oil-filter retaining bolt can restrict or stop flow through the filter element. Poor air-cleaner sealing or an incorrectly fitted dust unloader can admit dirt and accelerate engine wear.

Brake sections distinguish single-pedal linkage adjustment from two-pedal equalization. The clutch section relates insufficient release clearance to slipping, overheating, and premature facing replacement.

Lubrication, Storage, and Reference Drawings

The lubrication guide covers engine oil and filter service, hydraulic-filter replacement, transmission and rear-axle oil changes, creeper-drive checks, and grease points. It specifies IH Hy-Tran Fluid and the stated IH B-6 requirements, with a temperature-based engine-oil chart.

Storage and return-to-service instructions address fuel, exposed hydraulic-cylinder surfaces, coolant, battery care, exhaust closure, lubrication, and tire protection. Cold-weather guidance covers winter-grade fuel, battery condition, lubricant viscosity, and antifreeze practice.

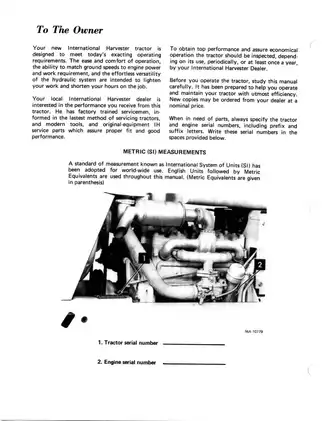

Visual references include the hydraulic lift layout, Category I mounting drawing, single- and two-pedal brake linkages, clutch linkage and clearance drawing, oil-filter flow section, and lubrication-point maps. Reference tables add direct and creeper ground speeds, PTO speed and shaft dimensions, tire pressures and loads, tractor dimensions and weights, and SI conversions.

Examples of Clutch and Wheel-Alignment Settings

Clutch adjustment data specifies .090-inch (2.3 mm) clearance between the release bearing and release levers, corresponding to approximately 1 inch (25 mm) of free pedal travel. The accompanying drawing identifies the linkage and clutch-brake components.

For front-wheel alignment, the manual specifies 1/4-inch (6 mm) toe-in, with the comparison measurements taken at rim points at hub height. These values accompany the illustrated checking and adjustment procedures.
