International Cub Lo-Boy 224401+ Operator's Manual (79 P.)
International Cub Lo-Boy tractor operator instructions featuring Touch-Control system, Fast-Hitch hitch mechanism, and dual ignition options. Complete lubrication guide, maintenance schedules, and troubleshooting for agricultural tractor operation and service.
Manual Preview

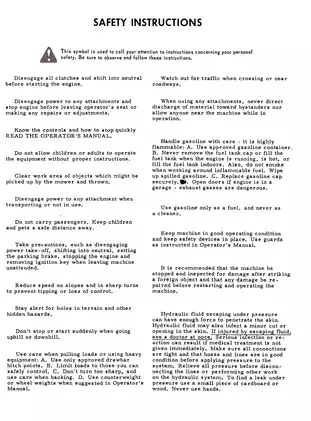

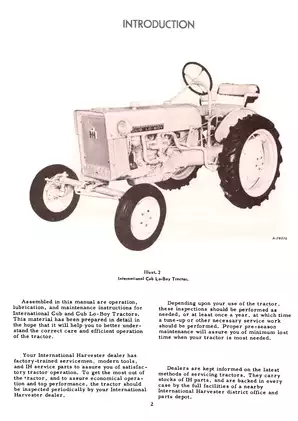

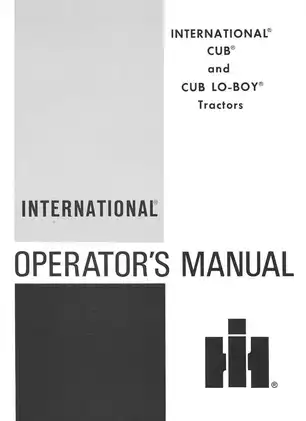

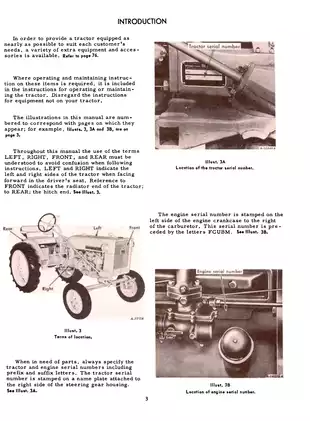

Sample pages from the International Cub Lo-Boy 224401+ Operator's Manual (79 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
International Cub Lo-Boy (224401 and up) — 1950s–1960s Structured Automotive Blueprint | Cub Lo-Boy Series Volume.
- Measured RPM Specs: 2,000 rpm is calibrated to the full load engine speed Architecture.
- Fundamental Weight Data: For optimal tractor balance, the wheelbase reaches 69-1/4 inches Benchmarks.
- Baseline Resolution Data: The spark plug gap provides 0.023-inch spacing between electrodes Range.
- Approved Twist Specifications: The engine stroke governs 2-3/4 inches (70 mm) displacement Sequences.
- Reference Deviation Limits: Valve clearance establishes 0.015 inch when the engine is cold Baseline.
- Published Throughput Data: Maximum belt pulley speed determines 1,665 rpm operational output Requirements.
Professional Workshop Service Manual & Technical Specifications
Complete Quality Shop Manual: International Cub Lo-Boy Operator's Manual Troubleshooting-Index
Repair-Classification: International Cub Lo-Boy (224401 and up) // Model-Designation: Tractor Operation / Engine System Logic // Service-Level: Complete documentation for owner maintenance.
| Specification | Baseline | Framework |
|---|---|---|
| Document Scope | Operations, lubrication, maintenance | Complete procedures for tractor systems |
| System Coverage | Engine, transmission, hydraulic, electrical | All major component groups documented |
| Reference Data | Torque specifications, capacity charts | Component service intervals and thresholds |
Repair procedures are structured around the engine and gasoline fuel system, which includes carburetor operation and ignition timing data, covering the cooling system and lubrication components, along with transmission and belt pulley operations, and establishing comprehensive electrical wiring diagrams for both 6-volt and 12-volt configurations.
Tool requirements are listed for adjustments to the engine speed control lever, brake pedal mechanisms, and the Touch-Control hydraulic hitch system. Installation guidelines are provided for pneumatic tires, wheel weights, and front axle configurations to match various crop spacings and working depths. Maintenance guidelines are included for the air cleaner oil cup, crankcase breather, and all lubrication fittings requiring periodic service at specified hour intervals. OEM guidelines are included for storage procedures, seasonal operation in freezing temperatures, and removal from long-term storage. Transmission service information covers gear oil selection, drain intervals, and capacity specifications for both fixed-speed and variable-tread configurations.
The manual documents torque specifications for the cylinder head bolts and engine spark plugs to ensure proper fastening and thermal transfer performance.
This operator's manual provides comprehensive reference data for the International Cub Lo-Boy tractor models (serial numbers 224401 and up), assembling detailed information on operation, lubrication, and maintenance across 79 pages. The document includes complete specifications for engine performance parameters, transmission speeds based on pneumatic tire sizing, power take-off shaft rotation speeds, and electrical system configurations for both 6-volt and 12-volt starting systems. Extensive wiring diagrams illustrate magneto ignition systems and battery ignition units with charge indicator circuits, generator belt tension adjustment procedures, and fuel system component identification. The manual contains methodical explanations of the Touch-Control hydraulic hitch system, including air purging procedures and fluid level verification, as well as detailed troubleshooting tables addressing hard starting, irregular operation, power loss, overheating, brake performance, and tire wear patterns with corresponding remedies for each condition.
