1996 Chevrolet Camaro Owner's Manual PDF (P/N 10275780 A)

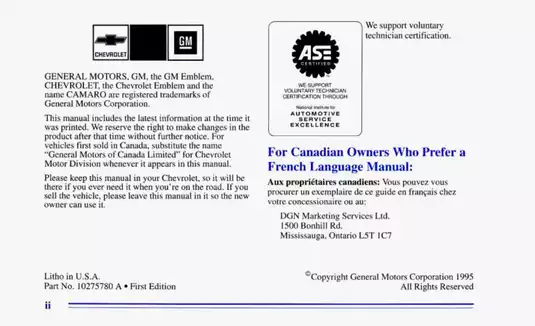

This 1996 Chevrolet Camaro owner's manual covers coupe and convertible models with the 3800 L36 V6 and 5.7L LT1 V8. It is the General Motors Corporation First Edition, P/N 10275780 A, with a 1995 copyright.

• Driver controls and restraints: Seat adjustments, safety belts, the Supplemental Inflatable Restraint (SIR) system, instrument warnings, ABS, and optional LT1 ASR traction control.

• Locks and security: Remote Lock Control transmitter matching and resynchronization, theft-deterrent feature customization, and PASS-Key II operating information.

• Roof equipment: Optional Twin Lift-off Roof Panel removal and storage, convertible top operation, boot-cover installation, and manual top operation after a power loss.

• Routine care: Fluid-level checks, air cleaner replacement, engine-specific reference data, and Short Trip/City and Long Trip/Highway maintenance schedules.

• Lighting and electrical references: Halogen headlamp replacement and aiming, replacement-bulb listings, main fuse-block charts, and underhood fuse and relay assignments.

• Roadside procedures: Jump-starting, flat tire changes, compact spare use, towing illustrations, and separate V6 and V8 radiator-filling instructions.

It suits Camaro owners who need guidance on controls and routine care; the maintenance sections require appropriate knowledge, tools, and replacement parts.

Controls, Security, and Roof Equipment

Seat instructions distinguish 4-way manual and 6-way power adjustments. Restraint coverage explains rear lap-shoulder belt routing, child restraint installation, and air bag readiness warnings.

Remote Lock Control coverage distinguishes the three-button and four-button transmitters. PASS-Key II information explains security-light behavior and starting problems associated with the ignition key's resistor pellet.

The audio section covers standard and Delco-Bose cassette and CD systems. Delco-Loc II instructions address activation, disabling, and unlocking after battery power loss using the owner's existing code; a forgotten code requires dealer assistance.

Convertible top instructions include releasing hydraulic pressure for manual operation during an electrical failure. Coupe roof-panel guidance covers sunshades, latch engagement, storage, and weatherstrip alignment.

Cooling, Fluid Checks, and Scheduled Care

Separate engine compartment views identify the L36 and LT1 service points. Fluid guidance distinguishes automatic transmission hot and cold checks, manual transmission level checks, hydraulic clutch care, and standard versus limited-slip rear axle lubrication.

The maintenance chapter separates owner checks from periodic inspections assigned to a qualified service center. It includes starter-switch and Brake-Transmission Shift Interlock checks, recommended lubricants, and service-record pages alongside the driving-condition schedules.

The LT1 cooling section warns that an incorrect radiator-fill procedure can cause overheating and severe engine damage. DEX-COOL guidance explains how silicated coolant can cause premature corrosion in the engine, heater core, and radiator.

Lighting, Roadside Work, and Repair Scope

The 55 x 135 mini-quad headlamp section explains horizontal and vertical aim indicators and identifies accident-related conditions that require dealer recalibration. Tire-loading labels, instrument cluster views, and maintenance charts provide further visual references.

Fuse-usage tables connect fuse positions with the circuits they protect, helping owners identify the relevant fuse before investigating an inoperative accessory.

This is an operating and routine-care reference. The manual directs readers to a separate Chevrolet Service Manual for more detailed repair instructions. Observe its precautions for hot pressurized coolant, explosive battery gases, and air bag service.

A Sample of Engine-Specific Spark Plug Data

These spark plug entries are a small selection of the engine-specific reference data in the manual.

For the 3800 L36 (Code K), it lists AC Type 41-601 spark plugs with a 0.060-inch gap. The LT1 (Code P) entry specifies AC Type R45LTSP plugs with a 0.050-inch gap.

Text Search, Bookmarks, and PDF Contents

Search and diagram detail: Embedded OCR supports searches through the main text, with some recognition errors; certain image-based tables and illustration labels are not searchable. Bookmarks link the main sections and selected subsections. Some small underhood fuse-layout labels remain difficult to read when enlarged, while the accompanying usage tables are legible.

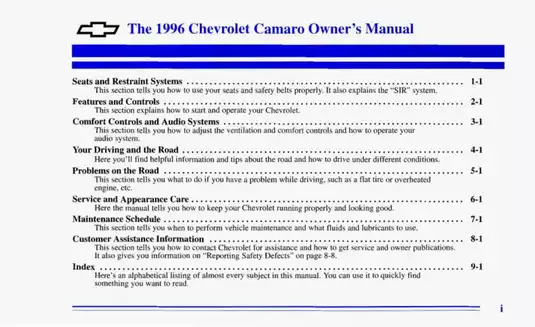

One printable English-language PDF contains 402 pages in total, including the front and back covers, original introductory material, and 17 notes pages. These pages are already included in the total.
