Cagiva Models Covered & Key Technical Specifications

Models: Elefant 350, Elefant 650

Sub-models / Variants: 350, 650

Model Years: 1985–1995 (1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995)

Serial Numbers: Elefant 650 gearbox/clutch layouts: up to and including 1N000989; from 1N000990


  • Engine: L-configuration 90-degree 4-stroke twin

  • Displacement (Elefant 350): 349 cc (21.28 cu.in.)

  • Displacement (Elefant 650): 650 cc (39.61 cu.in.)

  • Bore x Stroke (Elefant 350): 66 mm x 51 mm

  • Bore x Stroke (Elefant 650): 82 mm x 61.5 mm

  • Compression ratio: 10:1 (650), 10.3:1 (350)

  • Max power (Elefant 350): 36.5 hp at 8000 rpm

  • Max power (Elefant 650): 57.5 hp at 7500 rpm

  • Carburetor: Dell'Orto PHF 30 DD (350) or PHF 36 DD (650)

  • Clutch: Dry (650) or oil bath (350)

  • Transmission: 5-speed constant-mesh

  • Front fork: Hydraulic telescopic, double-acting

  • Fuel capacity: 17.5 liters (4.62 US gal)

Cagiva Manual Features & Selected Content Preview

This Cagiva factory workshop manual, P/N 49828, covers maintenance, diagnosis, and repair of the Elefant 350 and Elefant 650.

PDF Access and Wiring Detail

Search, navigation, and diagrams: PDF text search is not available, and there are no embedded PDF bookmarks. Small wiring-diagram labels and wire-color references require zooming; the printed contents and indexes provide section references.

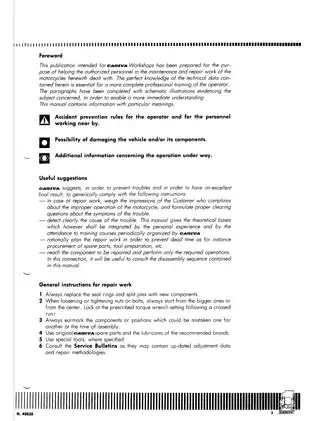

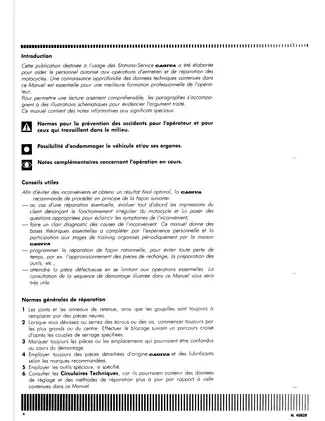

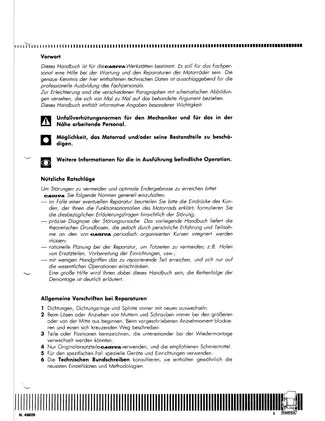

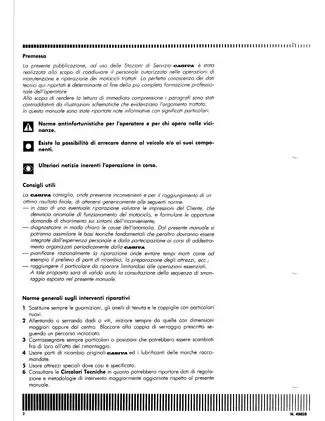

Supplied as one printable, 241-page PDF in US Letter format, with Italian, English, French, and German text. The original cover, introductory pages, section dividers, and indexes are included in that total.


Engine Overhaul, Drivetrain, and Chassis Service

These selected contents outline the main workshop areas. Other topics include air-filter service and rear-damper preload and damping adjustments.

  • Engine repair: Step-by-step engine removal, timing-belt and pulley removal, cylinder-head and piston work, crankcase separation, internal inspection, and reassembly with valve timing.

  • Fuel-system service: Dell'Orto carburetor overhaul, float-height inspection, accelerator-pump delivery specifications, vacuum-gauge synchronization, idle setting, and throttle and starter-cable adjustment.

  • Clutch and gearbox: Wet- and dry-clutch procedures, gear-selection inspection, shaft and bushing clearances, and serial-specific exploded drivetrain layouts.

  • Chassis and brakes: Steering-bearing adjustment, front-fork overhaul and oil service, swingarm and rear-damper removal, wheel-bearing replacement, caliper and master-cylinder overhaul, and hydraulic bleeding.

  • Electrical diagnosis: Wiring and electronic-ignition schematics, ignition-component resistance checks, regulator/rectifier information, stroboscopic advance checks, and symptom/cause/remedy tables.

  • Service data and tools: Component-specific torque tables, maintenance schedules, fluid capacities, wear limits, fits, clearances, and illustrated Cagiva/Ducati special-tool references.

Cagiva prepared this manual for its workshops and authorized service personnel. Independent mechanics or highly experienced owners should expect to need comparable repair skills, precision measuring equipment, and the specified tools.

Internal Engine Inspection and Valve Timing

The overhaul chapters cover cylinders and pistons, wrist pins and connecting-rod bushings, crankshaft journals and bearing selection, valve seats and guides, rocker arms, camshafts, the starter freewheel, and the oil pump.

Inspection limits and the disassembly sequences support repair planning before reassembly. For example, the manual identifies the treated cylinder bores as unsuitable for conventional regrinding and distinguishes cylinder/piston matching categories.

Reassembly illustrations cover rocker-arm shimming, opening and closing clearances, ignition rotor and pickup positioning, and timing-mark alignment. The illustrated tool chart identifies timing-belt tensioner 88713.0748, closing-rocker/spring tool 88713.0143, and connector-pin tool 88713.0114.

The manual specifically warns that sharp bending or contamination by oil, gasoline, or solvent can permanently damage the toothed timing belts.

Clutch Variants and Serial-Specific Layouts

The main specifications distinguish the 350's oil-bath clutch and mechanical release from the 650's dry clutch and hydraulic release. Separate gearbox/clutch exploded views identify the Elefant 650 up to serial 1N000989 and from 1N000990; the earlier layout also identifies the Elefant 350. These drawings help distinguish the assemblies before drivetrain work.

Section J includes hydraulic-clutch master-cylinder and release-piston inspection, seal replacement, and bleeding. The main summary assigns this section to the Elefant 650, while its section pages carry the factory heading “Alazzurra 650.”

Electrical Fault Tracing and Illustrated References

The electrical section identifies Ducati or Saprisa alternator arrangements, Bosch ignition control, and Motoplat coils. Troubleshooting tables address starting faults, engine noise, clutch slip or drag, shifting problems, overheating, steering and suspension symptoms, weak braking, charging faults, and battery sulfation.

Illustrated references include the desmodromic valve opening-and-closing chart, lubrication-circuit layout, timing-belt and pulley assemblies, gearbox/clutch exploded views, full wiring diagram, and separate electronic-ignition schematic. A numbered wire-color table accompanies the electrical diagrams.

Starter-motor coverage includes removal/refitting information, specifications, and cable checks; the electrical section directs starter-motor faults to an authorized Cagiva workshop.

The manual warns that disconnecting the battery while the engine is running can damage the regulator. Hydraulic clutch and brake fluid can damage paint; engine removal calls for a suitable lift and secure support.

Examples of Carburetor and Ignition Check Data

Float-height inspection: Both carburetor types use a 17.5–18.5 mm reference between the float base and carburetor-body flange, with the float-bowl flange vertical and the float tang lightly touching the needle.

Ignition resistance checks: The pickup specification is 220 ohms ±5%. The ignition-coil high-voltage circuit is specified at 8,800 ohms ±20%.
