1995 Cagiva River 600 Workshop Manual Extracts with Supplement (P/N 8000 79525)

This PDF contains workshop manual sections for the 1995 Cagiva River 600, publication P/N 8000 79525, from the May 1995 edition and the February 1996 supplement. Coverage centers on engine, transmission, and carburetor repair.

Navigation and language coverage: PDF text search and embedded bookmarks are unavailable, and sections are stored out of order. Text appears in English, Italian, French, German, and Spanish, but the valve-clearance, throttle, and steering-bearing adjustment pages are only in French, German, and Spanish.

• Engine repair: Engine removal, cylinder-head disassembly, valve-seat replacement, cylinder-piston matching, crankshaft bearing removal, balance-countershaft servicing, and reassembly.

• Clutch and transmission: Primary drive teardown, wet-clutch inspection, gearbox toothed selector service, desmodromic shift-drum assembly, and shaft/shim positioning.

• Carburetor service: Mikuni vacuum-carburetor operation, overhaul notes, exploded views, and separate configuration tables for the SE BST 40-217 and D/CH SE BST 40-243.

• Maintenance and adjustments: Oil and filter service, clutch settings, rear-brake and shift-pedal adjustment, rear-damper preload, and steering-column bearing adjustment.

• Troubleshooting: Symptom/cause/remedy tables covering clutch slip, gear-selection faults, power loss, overheating, charging faults, and starter problems.

• Starter and alternator: Flywheel extraction, stator and pickup positioning, starter freewheel inspection, and the supplement's revised starter-gear requirements.

Written for Cagiva workshop personnel, the manual supplements professional mechanical training and calls for precision measuring equipment and dedicated service tools.

Engine Overhaul and Gearbox Assembly

Cylinder/piston measurement views and matching-class tables help assess component fit before an engine rebuild. The overhaul section covers cylinder-bore wear, valve-gear checks, and oil-pump inspection, and explains why the treated cylinder bore cannot simply be rebored.

Valve-seat cutting profiles accompany seat replacement and guide work. The manual warns that excessive seat cutting changes the valve stem's relationship to the rocker arm.

Gearbox shaft drawings show washer and retaining-ring positions. Camshaft timing-mark illustrations, rocker-arm end-play adjustment, and cylinder-head nut tightening notes support reassembly.

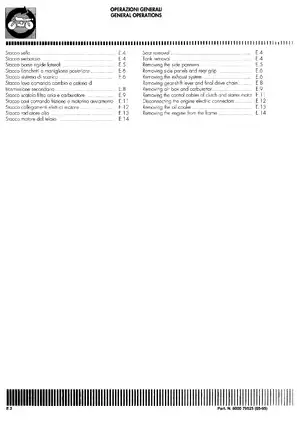

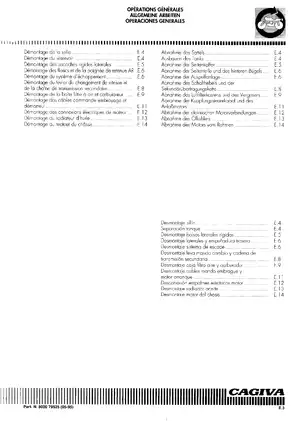

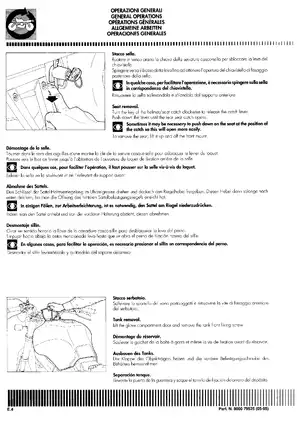

The removal procedures identify flywheel extractor 800039523 and crankshaft bearing tool 000YA2300. Engine removal also covers the swingarm pivot connection and oil-cooler mountings.

Mikuni Carburetor Variants and Starter Update

The D/CH configuration table distinguishes German/Swiss carburetor settings from the other documented version, including needle position and air-screw adjustment. An exploded carburetor view accompanies descriptions of the starting, idle, main, and float circuits.

Carburetor cleaning notes address the risk of damaging the diaphragm and float with compressed air.

The February 1996 supplement specifies a clutch-type intermediate starter gear and a matching freewheel assembly under kit 8000 84707. This distinction helps identify the documented component combination before ordering parts for starter repair.

Electrical References and Coverage Limits

Electrical references cover charging and starting faults, a 160 W alternator rating, and dashboard bulbs. They also distinguish the GB headlamp specification.

The standalone chassis/suspension, brake, electrical-system, lubrication-circuit, special-tool, and tightening-torque chapters listed in the contents are absent. There are no wiring diagrams or front-fork oil replacement procedures.

Use suitable lifting equipment for heavy engine components and follow the manual's safety precautions before disassembly.

Piston Fit and Cold Valve Clearances

The cylinder/piston matching section specifies a preferred assembly clearance of 0.020-0.040 mm and a wear limit of 0.070 mm, measured at a stabilized 20°C.

Cold valve-clearance figures differ by dated section: the May 1995 adjustment page gives 0.03 mm intake and 0.05 mm exhaust; the February 1996 supplement gives 0.05 mm intake and 0.10 mm exhaust.

Printable PDF with the February Supplement

One printable 185-page PDF contains 166 pages from the May 1995 manual, an 18-page February 1996 supplement, and one final blank page. These totals already include the covers, section dividers, front matter, and blank pages.
