Cagiva Gran Canyon 1998 Repair Manual (P/N 8000 88560)

This Cagiva workshop publication (P/N 8000 88560, dated July 1998) covers the 1998 Gran Canyon, with factory procedures for engine repair, electronic injection, chassis service and electrical checks.

PDF Access, Languages and Diagram Detail

Search and navigation: PDF text search and embedded bookmarks are not available. Small pin numbers and wire-color codes in the sideways wiring diagrams require zooming and page rotation. Printed section references and indexes provide navigation.

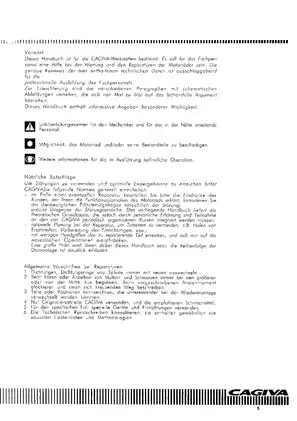

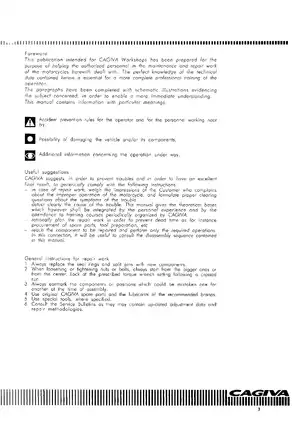

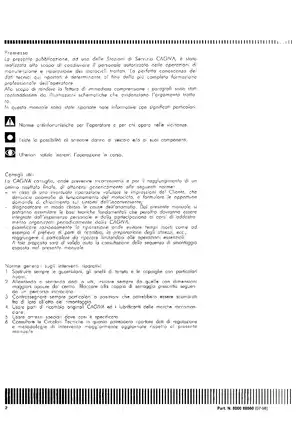

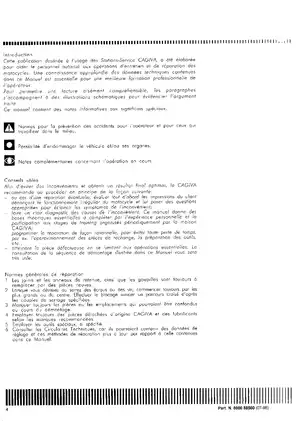

One printable PDF contains 430 pages, including the original cover, introductory pages, indexes and seven blank divider pages. Text is provided in English, Italian, French, German and Spanish.

Engine Overhaul, Injection Checks and Chassis Service

The following is a selection of covered work, rather than a complete contents list. Other topics include air-filter replacement and throttle- and starter-control cable adjustment.

• Engine repair: Engine removal, crankcase separation, cylinder and piston inspection, crankshaft assessment, internal transmission checks and reassembly.

• Desmodromic valve train: Valve-clearance checks, rocker-arm and adjuster inspection, timing-belt tension adjustment and pulley timing procedures.

• Fuel injection and ignition: Marelli I.A.W. 1.6M operating phases, sensor functions, component checks, EPROM replacement and fuel-circuit documentation.

• Suspension and wheels: Marzocchi fork overhaul, wheel-bearing replacement, rim and axle checks, swingarm inspection and rear-suspension linkage service.

• Brakes and clutch hydraulics: Disc and pad inspection, pad replacement, brake bleeding, clutch-actuator removal and hydraulic clutch bleeding.

• Electrical diagnosis: Wiring diagrams, charging-system checks, ignition-coil resistance specifications and starting-safety circuit tests.

Written for Cagiva workshop personnel, this manual assumes mechanical repair knowledge and experience with the specified workshop tools.

Engine Inspection and Desmodromic Timing

The overhaul chapters extend to cylinder and piston matching, valve-guide and valve-seat replacement, connecting-rod bearing selection and crankshaft inspection. Internal gearbox coverage includes selector-fork wear checks and shaft and selector-drum shimming; clutch coverage includes plate, spring and housing inspection.

Timing and service tools: Step-by-step instructions cover cylinder-compression testing and timing-belt tension adjustment. The belt procedure identifies gauge 051.2.001.1A and tensioning tool 88713.1215. Desmodromic valve-gear drawings identify the opening and closing rockers, adjusters and split rings, alongside valve-timing diagrams.

Maintenance schedules and component-specific inspection limits support routine servicing and repair planning. The compression-test section connects abnormal readings with possible valve, piston-ring, cylinder and cylinder-head sealing faults.

Marelli Injection and EPROM Service

The injection chapter explains the Alfa/N control strategy, sensor inputs and changes in fueling and ignition during starting, acceleration and deceleration. Fuel-circuit illustrations show the pump, filter, regulator and injector connections.

Diagnostic equipment: Component checks specify the MATHESIS tester, including checks involving the injectors, fuel pump, sensors and ignition components.

EPROM replacement coverage includes chip orientation, removal and insertion tools, sealing and ECU-disconnection precautions. The adjacent CO trimmer can break if forced beyond its stops; the manual also specifies plastic adjustment tools.

Fork Overhaul, Rear Suspension and Brakes

Marzocchi fork procedures cover dismantling, seal and guide-bushing inspection, oil replacement and reassembly. Troubleshooting distinguishes causes of excessively soft or hard fork action. Steering-bearing adjustment illustrations and swingarm-linkage checks support chassis inspection.

Rear-shock scope: The Sachs shock is covered for removal, adjustment and external checks. The manual specifies replacement of a defective unit rather than internal rebuilding.

Brake service includes disc wear and distortion checks, pad replacement and hydraulic bleeding. Separate clutch-hydraulic instructions cover fluid draining, actuator removal and bleeding.

Wiring and Starting-System Checks

The electrical section contains a two-sheet vehicle wiring diagram, an electronic-injection system diagram and a wiring-color key. Alternator insulation checks, regulator-rectifier checks and ignition-coil resistance data support component testing. A starting-safety table relates gearbox, side-stand and clutch-switch inputs to starting and engine operation.

Safety Notice: Fuel-system work, brake hydraulics and engine servicing require appropriate workshop precautions and protective equipment. The rear shock contains pressurized gas and must not be opened.

Compression and Oil-Pressure Specification Preview

For a warmed engine tested with the throttle fully open, the compression section specifies 9–11 bar as standard, an 8 bar minimum and a maximum difference of 2 bar between cylinders.

The oil-pressure check distinguishes hot and cold engine conditions. With the engine hot at 1,100–1,300 rpm, the specified minimum is 1.1 bar; the accompanying diagnosis discusses pressure-relief valve, pump and engine-wear causes.
