Sharp AL-2030/2040CS/2050CS Copier Service Manual, 2000–2004 (P/N 00ZAL2040CS2E)

Sharp’s after-sales service manual for the AL-2030, AL-2040CS, and AL-2050CS digital multifunctional systems, P/N 00ZAL2040CS2E, issued February 2008. It covers mechanical repair, service simulations, factory adjustments, and electrical diagnosis.

Searchable PDF and Circuit Diagram Detail

Text search and diagram navigation: The PDF contains searchable text and embedded bookmarks for the technical chapters and subsections. Small pin numbers and component labels in the checked wiring diagrams and dense circuit schematics are readable when enlarged.

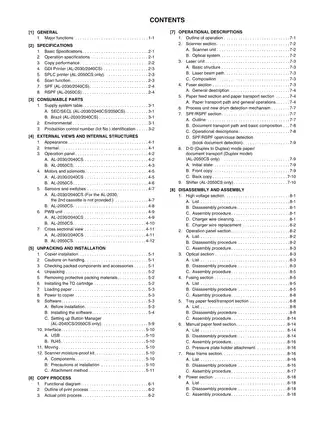

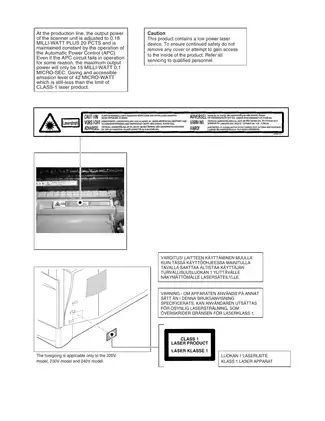

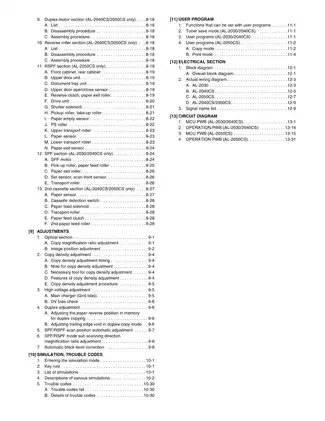

One printable English PDF contains 172 pages, including five opening pages with the cover, laser cautions, and contents, plus three closing pages covering lead-free solder, battery cautions, and publication details.

Copier Mechanisms, Calibration, and Fault Diagnosis

The following selected coverage highlights the repair and diagnostic sections. Other topics include consumable-cartridge identification and user-program settings.

• Mechanical repair: Step-by-step disassembly and assembly procedures for the transfer charger, optical carriage, fusing unit, paper-feed systems, rear frame, power section, and operation panel.

• Feeder and duplex service: SPF and RSPF procedures, plus second-cassette, duplex-drive, reverse-roller, and shifter service for the applicable models.

• Factory adjustments: Scan magnification, image position, center offset, copy density, charger and developing-bias checks, duplex placement, feeder calibration, and black-level correction.

• Service diagnostics: Simulation codes for motors, solenoids, lamps, sensors, fusing control, LSU operation, configuration, counters, ROM, memory, and image-quality functions.

• Electrical reference: Overall block diagrams, model-specific actual wiring diagrams, sensor and signal tables, cross-sectional views, copy-process diagrams, and MCU/operation PWB schematics.

This after-sales manual is intended for qualified service personnel performing internal repairs, electrical checks, and calibration.

Copy Process and Model Differences

The operational sections follow Scorotron DC charging and laser exposure through developing, transfer, separation, drum cleaning, optical discharge, and heat-pressure fusing. They explain how the CCD scanner, MCU, LSU, paper feed, and fuser exchange image and timing signals.

Functional diagrams and separate cross-sectional views help trace document and paper paths before the machine is opened for repair. The AL-2030 uses the single-cassette configuration; the AL-2040CS and AL-2050CS include second-cassette and duplex hardware.

The AL-2030 and AL-2040CS use SPF/GDI arrangements, while the AL-2050CS uses RSPF/SPLC, electronic sorting, and a shifter. Separate panel, motor/solenoid, sensor, PWB, feeder, and wiring information shows which repair procedure applies.

Legacy Software Setup and Scanner Moisture Protection

Installation coverage includes USB and RJ45 pinouts, IP-address and LPR printing setup, Button Manager, Sharpdesk, and the original Windows 98/Me/2000/XP/Vista environment. These are period installation instructions rather than current driver support.

AL-2030 software installation covers printing. On the AL-2040CS and AL-2050CS, scanning requires USB; the LAN connection supports printing only.

Scanner moisture-proof kit DKIT-0016QSZZ has component part codes and illustrated placement instructions for reducing condensation in humid installations.

Mechanical Repair and Post-Repair Calibration

Fusing-unit procedures reach the thermistor, heater lamp, heat roller, pressure roller, separation pawls, and thermostat. Optical service includes carriage removal and CCD-MCU harness installation, while paper-transport procedures cover rollers, clutches, the LSU, and control-board access.

Rear-frame procedures cover scanner, main, and exhaust-fan motors, the NIC PWB, and the MCU PWB. The AL-2050CS RSPF section includes the reverse clutch, drive unit, shutter solenoid, pickup and transport rollers, and paper sensors.

The adjustment chapter identifies when calibration is required after optical, PWB, or EEPROM work. It distinguishes print-start and scan-start settings, edge-void and center-offset adjustments, duplex memory-reverse positioning, and SPF/RSPF scan-position and magnification calibration.

Sharp gray-scale charts UKOG-0162FCZZ and UKOG-0089CSZZ are identified for copy-density work. The AL-2050CS automatic black-level correction also uses UKOG-0162FCZZ.

Simulation Tests and Trouble-Code Diagnosis

Simulation entries explain model-specific controls, main/sub codes, display behavior, and each test’s purpose. Checks include mirror and feeder aging, panel LEDs and keys, cooling-fan operation, feed and resist solenoids, motor operation, high-voltage outputs, shading, and self-print patterns. Flash ROM program-writing mode and its error displays are also documented.

Trouble-code tables connect fault conditions with possible causes and check/remedy information. They cover IMC and EEPROM errors, LSU and laser faults, shading and copy-lamp failures, thermistor and fuser-temperature problems, scanner lock/return faults, and motor-lock conditions.

This lets a technician connect an error display with the affected circuit, harness, sensor, motor, or PWB.

Wiring and Board-Level Schematics

The electrical section separates the AL-2030/2040CS and AL-2050CS architectures. Actual wiring diagrams cover each model, with additional feeder, second-cassette, and NIC connections.

MCU and operation PWB schematics show board-level circuits. Signal tables cover laser, motor, high-voltage, fuser, USB, network, feeder, and shifter functions; sensor tables distinguish paper-exit, paper-transport, cassette, door, drum-reset, and feeder inputs.

Repair Cautions and Service Limits

Connecting or disconnecting the MCU-to-LSU harness with power applied can destroy the LSU IC, and residual voltage remains briefly after shutdown. The manual also identifies position-sensitive LSU mounting, the SIM 41-06 requirement after carriage replacement, and RSPF reassembly points where the paper-exit Mylar or harness can be pinched.

Laser-optical faults call for replacement of the complete optical unit rather than its internal parts. Closing material covers lead-free PWB identification and soldering precautions, plus battery replacement and disposal.

Service involves laser exposure, high-voltage circuits, stored charge, and fuser heat, requiring proper isolation and workshop precautions.

Optical Calibration Values: A Short Preview

For optical calibration, the manual specifies a copy-magnification range of 100 ± 1.0% in the main and sub scanning directions, checked with a scale at normal magnification.

The image-position section gives a print center-offset standard of 0 ± 2 mm from the paper center, with separate cassette and manual-feed adjustment modes.
