HP LaserJet M1522n / M1522nf MFP Service Manual, 2008 (P/N CB534-90945)

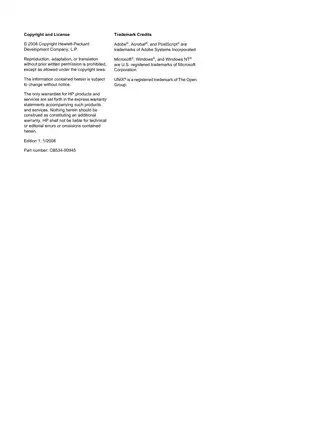

This HP factory service manual covers the 2008 LaserJet M1522n MFP and fax-equipped M1522nf MFP, Edition 1 (January 2008), P/N CB534-90945. It documents maintenance, fault diagnosis, and repair through field-replaceable unit replacement.

Searchable PDF, Bookmarks, and Page Count

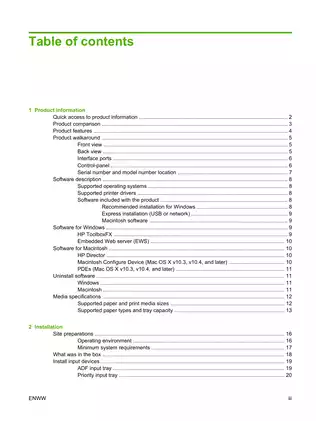

Text search and diagram detail: Searchable text covers the main chapters, parts lists, and index. Embedded bookmarks provide chapter and subsection navigation. Small pin numbers and signal labels in the overall circuit diagram require zooming for comfortable reading.

The download contains one printable, English-language 290-page PDF, including 18 opening pages, 270 numbered pages, and two closing pages comprising a blank page and the back cover.

Print Engine, Scanner, and Fax Service

The following selected topics outline the service coverage. Additional material includes HP ToolboxFX management functions and embedded Web server configuration.

• Print-engine repair: Step-by-step replacement procedures for the formatter, power supply, laser/scanner assembly, main motor, fuser, paper-pickup assembly, and drive-gear assembly with drive belt.

• Scanner and ADF service: Removal and replacement of the scanner assembly, control panel, ADF pickup roller, separation pad, input-tray flag, and ADF scanner glass.

• Functional checks: Engine test page, drum-rotation and half self-tests, heating-element and high-voltage contact checks, plus post-service print, copy, and fax tests.

• Fault isolation: Control-panel message tables, jam-clearing procedures, print/scan/copy/fax troubleshooting, and a repetitive-image-defect reference.

• Service functions: Scanner calibration, NVRAM and Super NVRAM initialization, control-panel display and button tests, firmware-version checks, and firmware update instructions.

• Electrical and parts references: Circuit diagrams, connector-location views, illustrated FRU tables, exploded assembly views, and alphabetical and numerical parts lists.

Internal servicing is for personnel trained to service this printer; the electrical checks and ESD precautions assume suitable bench equipment and service knowledge.

Component Breakdown and System Architecture

The operational-theory chapter follows the base unit through WAIT, standby, initial rotation, printing, and last rotation. A separate power-on sequence covers CPU initialization, sensor checks, main-motor drive, fuser heating, laser/scanner startup, high-voltage control, and cartridge detection.

It explains how the formatter and engine controller coordinate the laser/scanner, image-formation, and pickup/feed/delivery subsystems. The image process is traced through primary charging, laser exposure, developing, transfer, separation, fusing, and drum cleaning.

Scanner and ADF operation: Optical-system coverage explains the LED, mirrors, lens, and CCD. The ADF discussion follows the pick/feed/lift cycle and relates paper-present and form-sensor signals to mispicks, stalls, and long-document jams.

M1522nf fax system: The manual explains the V.34 subsystem, PSTN operation, safety isolation, regional fax-card versions, signaling, ring detection, and nonvolatile fax-page storage. Fax diagnosis includes activity logs, call reports, and T.30 protocol tracing for transmission and reception problems.

Diagnostics and Service Decisions

The diagnostic material is organized to separate a formatter, print-engine, scanner, ADF, media-path, or fax fault before parts are changed. The half self-test distinguishes image formation and development from transfer and fusing. The repetitive-defect reference relates measured defect spacing to specific rollers or the fuser sleeve.

Configuration and network reports support checks of device settings and connections. The service-mode sections distinguish ordinary NVRAM initialization from Super NVRAM initialization; these reset functions clear stored settings and fax data.

The visual references include the engine-control-system circuit diagram, ADF paper path, laser/scanner system, pickup/feed/delivery system, ECU connector view, and overall product circuit diagram.

FRU Replacement, Parts Selection, and Repair Limits

Chapter 5 contains 105 numbered figures, including the scanner/ADF and base-unit parts-removal-order diagrams. HP limits this chapter to FRU replacement and does not support individual subassembly repair or component-level troubleshooting.

The scanner is replaced as a complete assembly because opening it outside a cleanroom can contaminate its optics. The parts section identifies scanner hinge tool P/N 5185-7441 for supporting the raised scanner when its link assemblies are disengaged.

Chapter 7 provides seven exploded assembly views and 14 tables covering localized whole-unit replacements, control-panel bezels, documentation, and parts. The listings distinguish copy and fax formatters, regional fax cards, Western and Asian control panels, and voltage-specific fuser and engine-controller assemblies.

Appendix B separately contains five specification tables covering physical dimensions, electrical requirements, power consumption, environmental limits, and acoustic emissions.

Bending flat flexible cables or straightening their factory folds can damage them; incomplete connector seating can short a PCA. Fuser replacement notes also address transferring the original delivery-sensor PCA to the replacement assembly.

Disconnect power for parts removal, keep the laser/scanner protective cover installed, and use ESD protection around sensitive electronics. Powered checks should be limited to the diagnostic procedures defined in the manual.

Fuser Resistance Specifications: Selected Examples

The unplugged-product heating-element check specifies normal resistance of 25 ±10 ohms for the 110 V version and 80 ±20 ohms for the 220 V version.

The same section gives normal thermistor resistance of 370 kΩ ±50 kΩ at 20°C (68°F), measured across each specified pin pair at J206.
