2003 Canon CLC5100 Series Service Manual

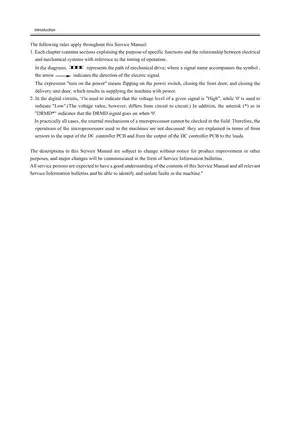

• 910-page PDF for the Canon CLC5100 Series / CLC5100, dated September 30, 2003. It covers technical theory, installation, maintenance, and repair of the main copier. Canon issued the manual for all sales localities, so some regional settings or procedures may not apply to every machine.
• System coverage spans the original exposure and scanner drive, 3-line CCD and analog/digital image processing, four-color laser exposure, image formation, pickup/feeding and duplex paths, fixing, control electronics, high-voltage control, and scheduled maintenance.
• Factory repair procedures cover removal and replacement of the process unit, photosensitive drums, charging and developing assemblies, transfer unit and cleaning components, laser/BD/mirror units, feed and duplex assemblies, fixing rollers, heaters, thermistors, cleaning webs, motors, PCBs, sensors, and switches.
• Adjustment and calibration work includes CCD/shading setup, image-position registration, laser power, intensity, and focus, SALT and PASCAL controls, developer replacement, transfer-belt and charging adjustments, fixing nip, paper-width and pickup timing, solenoid settings, skew correction, controller RAM initialization, high-voltage checks, and photointerrupter testing.
• Diagnostic coverage includes image faults, faulty feeding, malfunctions, main-unit jams, electrical component reference tables, detailed self-diagnosis error codes, service-mode readings, test prints, jam/error histories, counters, and machine-specific option settings.
• Installation and relocation sections document the Card Reader-A1, NE Controller-A1, Control Card V, DA Unit-A1, original tray, toner and starter loading, post-installation image checks, machine relocation, and use of the FG6-1585-000 crane transport kit.
• Special tools and technical drawings are both documented. Tool examples include the FY9-4013 laser power checker, FY9-3002-000 mirror positioning tool, FY9-3024-000 S-B gap adjusting tool, and TKN-0197 potential sensor checker; diagram support includes block diagrams, circuit drawings, timing charts, paper-path views, and component-removal illustrations.

Main-Unit Repair Depth

This is a main-unit service manual, not an operator-level guide. Canon divides the machine into six functional blocks—pickup/feeding, original exposure, image processing, laser exposure, image formation, and control—and then traces the relationship between sensors, controller inputs, PCB outputs, mechanical drive, and operating timing. That structure is useful when a symptom crosses systems, such as a color-registration fault that can involve the correction-pattern CCD, laser mirrors, transfer belt position, controller data, or service-mode calibration.

The repair chapters go well beyond assembly identification. They document scanner lamp, CCD, reader controller, laser unit, BD unit, polygon motor driver, process unit, drum, hopper, developer, transfer unit, paper pickup, duplex, delivery/reversing, fixing, power-supply, drive, and control-board work. Image-quality theory covers shading correction, 3-line CCD position matching, background removal, color-space correction, UCR, output masking, moire removal, density processing, SALT development control, PASCAL auto-gradation correction, and four-color image-displacement correction.

The system-configuration section identifies the RDF-E3, Side Paper Deck-R1, Buffer Path Unit-D1, Staple Sorter-F2, Stacker-B1, Editor-F1, Control Card V, and original tray. Option coverage is concentrated in configuration, installation, interface, and service-mode sections; the detailed teardown and replacement chapters are centered on the CLC5100 base unit.

Diagnostics, Service Mode, and Reference Data

Troubleshooting is organized around image faults, paper-feed faults, malfunctions, and main-unit jams, followed by component tables for clutches, solenoids, motors, fans, sensors, switches, lamps, heaters, PCBs, LEDs, variable resistors, and check pins. The self-diagnosis chapter supplies cause and description tables for the machine's E-codes, while Service Mode is broken into DISPLAY, ADJUST, FUNCTION, OPTION, TEST, and COUNTER areas for live status checks, calibration, controlled operation, test output, history review, and configuration.

Representative technical figures include Functional Construction, Outline of Electrical Circuitry, Sequence at Power-On, Forming and Reading Correction Patterns, Sequence of Operations (transfer unit), and Controlling Temperature of the Fixing Roller. The reference chapters also provide scheduled-maintenance charts, periodically replaced parts, consumable and durable lists, adjustment tolerances, service-mode data, and electrical test specifications tied to the covered repair procedures.

Machine-Specific Safety and Repair Cautions

The CLC5100 uses two separate power systems and two receptacles; disconnecting only one plug leaves the other circuit energized. Both power plugs must be disconnected before internal service. Laser-area work also requires the machine-specific precautions in the manual, particularly when the hopper or shutter-opening tools leave the protective shutter open.

Two repair traps are called out clearly. Laser power must be adjusted after laser-unit replacement, and exceeding the recorded setting can damage the laser diode. The manual also warns against treating an E000 condition as a simple reset when the thermistor fault remains, because continued heating can damage the fixing roller.
