2003 Suzuki SV1000 Supplementary Service Manual (P/N P/N 99500-39250-03E)

• Coverage and document set: 2003 Suzuki SV1000SK3 (SV1000S) and SV1000K3 (SV1000) with the liquid-cooled DOHC 90-degree V-twin, six-speed transmission, and fuel injection. 511 PDF pages total — Suzuki SV1000S Service Manual, 479 pages and dated February 2003; Suzuki SV1000 Supplementary Service Manual, 32 pages and dated May 2003.

• Engine and drivetrain repair: Covers engine removal and installation plus top- and bottom-end disassembly and reassembly. Internal repair sections address cam timing; valve, guide, and seat service; cylinder/piston inspection; connecting-rod and crankshaft bearing selection; clutch and transmission work; gearshift service; and starter clutch and torque-limiter inspection.

• FI diagnosis and fuel service: Includes user- and dealer-mode self-diagnosis, fail-safe tables, circuit tests, malfunction-code fault isolation, fuel-pressure and pump-discharge testing, pump/filter service, throttle-body disassembly and cleaning, injector checks, TP/STP sensor adjustment, fast-idle setting, and throttle-valve synchronization.

• Chassis and hydraulic repair: Details front-fork overhaul and setup, steering-damper and steering-stem service, wheel-bearing inspection, rear-shock and swingarm work, front and rear caliper/master-cylinder overhaul, brake bleeding, clutch release/master-cylinder repair, tire service, and wheel balancing.

• Cooling and lubrication: Provides cooling-circuit pressure testing; radiator-cap, fan-switch, ECT-sensor, and thermostat checks; water-pump disassembly with mechanical-seal service; oil-pressure testing; oil-cooler service; and lubrication-system flow references.

• Electrical and emissions: Covers charging, generator/regulator, starter and side-stand/ignition interlock, ignition, combination meter, relays, switches, lamps, and battery diagnosis, plus PAIR, heated-oxygen-sensor, and evaporative-emissions systems where applicable by market code.

• Diagrams and shop data: Named visuals include the FI System Wiring Diagram; full wiring diagrams grouped for E-02/E-19 and E-03/E-24/E-28/E-33; Cooling Circuit; Engine Lubrication Flow Chart; Engine Lubrication Circuit; and K3 harness, cable, and hose routing views. Related sections supply troubleshooting tables, component-specific torque data, capacities, pressure-test specifications, clearances, wear limits, and electrical test values.

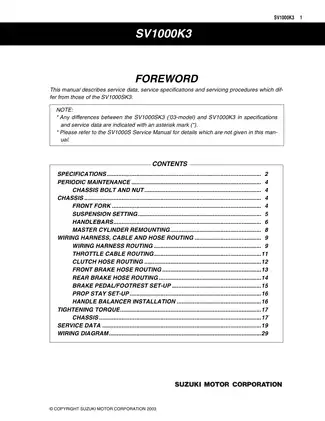

The SV1000S manual carries the main inspection, repair, and overhaul procedures; the SV1000 supplement focuses on service data, specifications, and procedures that differ from the SK3. Suzuki states that the main manual is written for mechanics who already have sufficient motorcycle-service knowledge, skills, and equipment—including the specified special tools—so it is not an entry-level repair guide. This set is not a blanket reference for later SV1000 model years.

K3/SK3 Scope and Publication Pairing

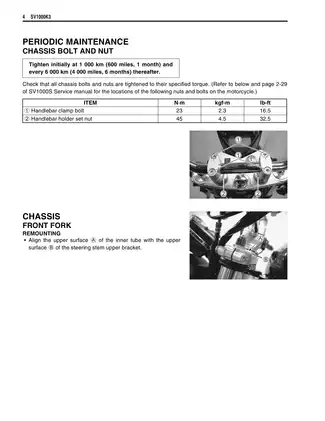

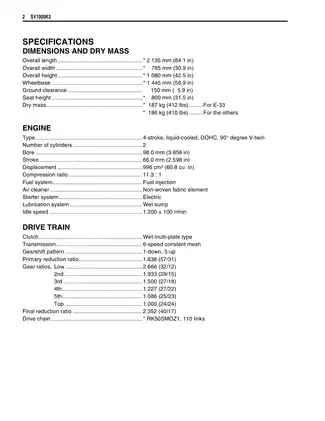

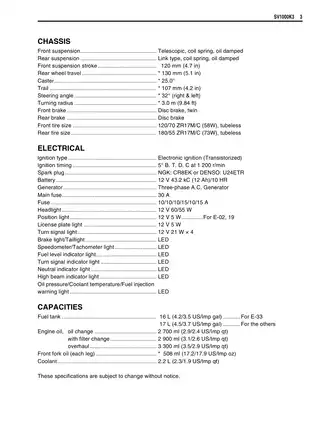

For the SV1000K3, the supplement concentrates on the front-end and control-layout details that differ from the SK3. It covers front-fork remounting and suspension settings, handlebar disassembly and remounting, front brake and clutch master-cylinder positioning, and handlebar-balancer installation. Separate drawings show the K3 wiring harness, throttle cables, clutch and brake hoses, brake pedal/footrest arrangement, and fuel-tank prop stay. Parts and setup data also distinguish the K3's 110-link drive chain from the SK3's 108-link entry, along with different front-fork oil and suspension specifications.

The manual maps E-02 to the UK, E-03 to the USA except California, E-19 to the EU, E-24 to Australia, E-28 to Canada, and E-33 to California. These codes separate the applicable wiring, heated-oxygen-sensor, fuel-system, and evaporative-emissions information.

The included base manual is P/N 99500-39250-03E, while the supplement is P/N 99501-39540-01E. The supplement cover directs the reader to SV1000S base manual P/N 99500-39250-01E; the companion base PDF in this set carries the -03E number.

Tools, Specifications, and Repair Cautions

Diagnostic tools include the mode-selection switch (09930-82720), the carburetor balancer set used for throttle-body synchronization (09913-13121), and fuel-pressure test adapters (09940-40211 and 09940-40220). Major repair tools include the crankcase separating tool (09920-13120), rotor holder (09930-44541), and front-fork oil-seal installer (09940-52861).

During camshaft reassembly, uneven journal-holder drawdown can damage the cylinder head or holder thrust surfaces; the manual also identifies the dedicated high-strength bolts used there. In the throttle-body section, snapping a disconnected throttle valve shut can damage both the valve and body. The STV actuator must not be removed or disassembled and is supplied only as part of the throttle-body assembly.

Fuel-pressure work calls for controlled pressure release and strict ignition-source precautions. Brake and clutch hydraulic repairs require the specified fluid, complete bleeding, and final operation and leak checks before the motorcycle returns to service.
