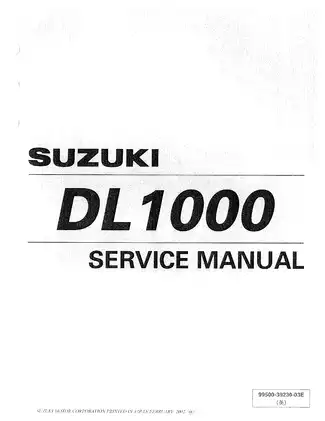

Suzuki DL1000 V-Strom 2003–2012 Service & Parts Manual Set (P/N 99500-39230-03E)

This factory set combines the repair procedures of the original DL1000 workshop manual with the exact component identification found in Suzuki’s K2/K3/K4 parts catalog.

Coverage limit: The service manual supplies the base repair procedures. Apart from the two K3 update sheets, this set does not contain a complete K3 or K4 service supplement. The catalog’s exploded drawings are intended for parts identification, not assembly instructions.

PDF Search, Navigation, and File Contents

Search and navigation: Neither PDF supports text search. The service manual has Spanish-labeled bookmarks, including an incorrect section destination; the parts catalog has section bookmarks. Small wiring-diagram labels require zooming.

The ZIP download contains two printable English PDFs totaling 568 pages, including the covers, five blank service-manual pages, one duplicated catalog preface page, and the two K3 update sheets within the parts-catalog file.

Engine Overhaul, FI Diagnosis, and Model-Specific Parts

These selected highlights outline the main workshop and parts-reference content rather than reproduce the full contents list. Other included topics include air-cleaner and spark-plug service, along with drive-chain inspection and adjustment.

• Engine and transmission: Step-by-step engine removal and installation, top- and bottom-end disassembly, clutch repair, transmission service, and final engine reassembly.

• Fuel-injection diagnosis: ECM self-diagnosis and dealer modes, malfunction-code charts, fail-safe information, and sensor and actuator tests.

• Cooling and lubrication: Cooling-circuit testing, radiator and water-pump service, oil-pressure checks, and lubrication-system reference diagrams.

• Chassis and hydraulics: Front-fork, steering, wheel, and swingarm service, brake caliper and master-cylinder repair, and brake and hydraulic-clutch bleeding.

• Electrical troubleshooting: Charging, ignition, starter, side-stand interlock, relay, meter, and battery diagnosis, supported by system diagrams and test charts.

• Emissions systems: PAIR air-supply inspection and hose routing, crankcase ventilation information, and E-33 evaporative-emission system checks.

• Parts identification: Model-specific exploded views for engine, transmission, electrical equipment, frame, suspension, brakes, fuel tank, bodywork, labels, and optional items, followed by an OEM part-number index.

This set is suited to experienced mechanics and technicians with the knowledge, skills, workshop equipment, and special tools required by the service manual.

Market Differences and K3 Updates

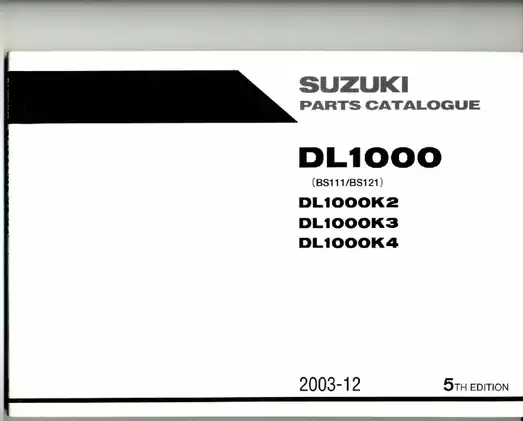

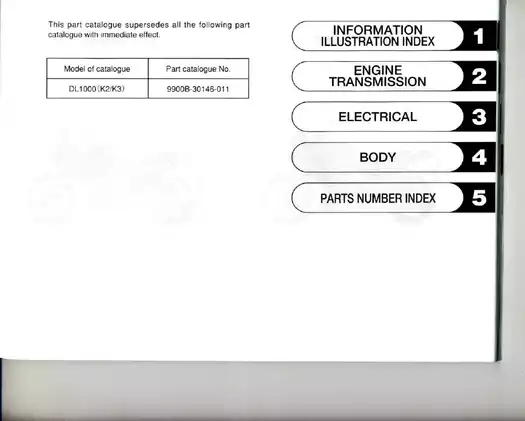

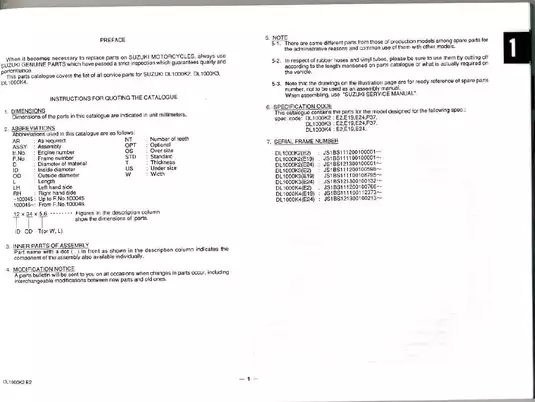

The catalog’s specification codes and starting frame numbers help distinguish regional wiring, lighting, emissions, bodywork, and other market-dependent parts before an order is placed. This fifth edition supersedes the earlier DL1000(K2/K3) Parts Catalogue No. 9900B-30146-011.

The K3 update sheets document the revised clutch-cover drain hose, changed intake valves, fork preload-adjuster hardware, and optional center stand. They also distinguish residue around the coolant-pump mechanical-seal drain from a failure-caused leak.

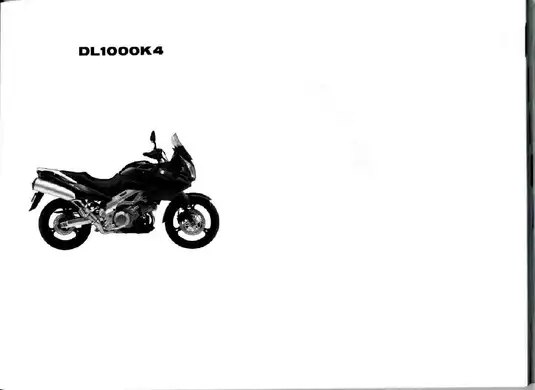

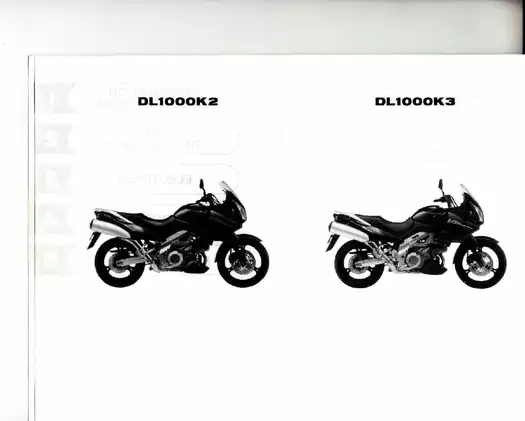

K3 front-fork parts are not readily interchangeable with the K2 arrangement. The catalog also provides separate K4 transmission and fuel-pump figures, allowing parts selection to follow the appropriate model-specific breakdown.

Internal Engine Inspection and Special Tools

The engine chapters cover cylinder-head and camshaft service, piston and connecting-rod inspection, cylinder and piston measurements, valve-guide replacement, cam timing, and tappet-shim selection. Compression and oil-pressure testing, crankshaft journal-bearing selection and replacement, and starter-clutch inspection extend the coverage beyond routine maintenance.

Factory tool callouts include the 09930-82710 mode select switch, 09920-13120 crankcase separating tool, and 09913-60230 journal-bearing remover/installer, alongside application-specific holders, pullers, installers, gauges, and electrical test equipment.

During camshaft installation, unevenly drawing down the journal holders can damage the cylinder-head or holder thrust surfaces.

Fuel-System Service and Circuit References

Fuel-system procedures cover fuel-pressure inspection and fuel pump, filter, injector, and throttle-body service. Throttle-valve synchronization, TPS and STP sensor adjustment, and fast-idle checks address setup as well as fault diagnosis.

Reversed battery polarity or incorrect meter connections at the ECM and sensor circuits can damage electronic components.

The FI System Wiring Diagram and full-vehicle E-02/E-19, E-03/E-28/E-33, and E-24 wiring diagrams support circuit tracing. The Cooling Circuit, Engine Lubrication Flow Chart, and Engine Lubrication Circuit show the corresponding fluid paths.

Parts Breakdown and Workshop Reference Data

The catalog uses 66 numbered parts figures with model-specific variants, OEM nomenclature, quantities, remarks, millimeter dimensions, and color codes. Exploded views include the starter clutch, throttle body, fuel delivery pipe, cooling system, transmission, wiring harness, front damper, cowling, and brake hydraulics.

Assembly-specific reference tables include tightening torques, service limits, clearances, fluid capacities, bearing and shim selection data, suspension settings, and electrical test values.

Fuel-pressure testing, brake and clutch hydraulic service, hot cooling-system work, and engine handling require proper isolation, lifting support, and standard shop safety practices.

Selected Valve-Clearance and Coolant-Sensor Data

For the base DL1000K2 engine, the tappet-clearance section specifies cold intake clearance of 0.10–0.20 mm and cold exhaust clearance of 0.20–0.30 mm. These inspection ranges accompany the shim-selection tables used for valve-clearance adjustment.

The coolant-temperature sensor test data specify approximately 2.45 kΩ at 20°C (68°F). The temperature-resistance table provides additional reference points for evaluating the sensor’s response as temperature changes.
