1995–1998 Honda CBR600F3 Factory Service Manual PDF

This Honda factory service manual covers the 1995–1998 CBR600F3 in 49-state, California, and Canada configurations. The publication carries a November 1995 date and includes separate information for early and later production versions.

The file is a 375-page English PDF scan with black-and-white technical illustrations.

• Engine repair: Compression testing, cylinder-head and valve service, cam timing, piston inspection, crankshaft measurement, and bearing selection.

• Clutch and transmission: Clutch disassembly, gearshift linkage service, crankcase separation, and inspection of transmission gears, shafts, shift forks, and shift drum.

• Fuel and intake: Carburetor overhaul, float-level checks, synchronization, pilot-screw adjustment, and Direct Air Intake system diagnosis, with California emissions procedures.

• Cooling and lubrication: Cooling-system pressure tests, thermostat inspection, water-pump replacement, oil-pressure diagnosis, and oil-pump and oil-cooler service.

• Suspension and steering: Fork disassembly, seal replacement, steering-bearing adjustment, wheel-bearing service, and rear suspension linkage inspection.

• Hydraulic brakes: Front and rear master-cylinder and caliper overhaul, pad and disc inspection, fluid replacement, and bleeding.

• Electrical repair: Charging and ignition troubleshooting, starter-motor overhaul, safety-interlock checks, fuel-pump tests, and wiring diagrams for regional configurations.

Honda wrote this manual for qualified professional technicians with the training, tools, and equipment needed for motorcycle service.

Engine, Clutch, and Transmission Repair

Opening sections cover motorcycle identification and scheduled maintenance intervals, followed by frame, bodywork, fuel-tank, and exhaust removal. Torque tables, engine clearances, wear limits, fluid capacities, and oil-viscosity recommendations for different ambient temperatures support the repair chapters.

Cylinder head and crankshaft: Valve-shim selection and cam-timing procedures accompany valve-guide replacement and seat-refacing instructions. Crankshaft inspection includes bearing-clearance measurement and color-coded main and connecting-rod bearing selection tables.

Camshaft installation cautions explain how uneven tightening can break a camshaft holder.

Access and assembly: Cylinder-head and clutch service can be performed with the engine installed; crankcase separation and internal transmission work require engine removal. Exploded transmission views show gear, washer, and snap-ring positions, while clutch instructions distinguish friction-disc types and judder-spring placement.

Carburetors, Direct Air Intake, and Emissions

Regional carburetor identification tables distinguish early and later versions, including VP61A and VP61B for 49-state models. Adjustment procedures cover the idle-drop method and high-altitude settings.

Direct Air Intake (D.A.I.): Troubleshooting charts connect intake symptoms with vent tubing, the air-vent solenoid, its relay, and the speedometer signal. These checks help distinguish an intake-control fault from a carburetor problem before repair.

California coverage includes evaporative-emissions canister and purge-valve tests, plus Pulse Secondary Air Injection (PAIR) control- and check-valve service. Carburetor cautions explain how compressed air can damage installed vacuum diaphragms.

Cooling and Lubrication Service

The cooling chapter distinguishes engine-thermostat tests from carburetor thermovalve tests. Water-pump repair is limited to leak diagnosis and replacement of the complete assembly.

A lubrication flow diagram supports oil-pressure troubleshooting; related procedures cover the pressure-relief valve, oil pump, and oil cooler. Oil-pan installation distinguishes the earlier gasket arrangement from the later sealant joint.

Suspension, Steering, and Hydraulic Brakes

Fork procedures identify early/later spring, fluid, and rebound-setting differences. Chassis sections cover steering geometry and bearing preload, swingarm pivots, and shock-linkage bearing service, while brake specifications distinguish front-disc versions.

Rear-shock coverage addresses removal, installation, and mounting bearings, without an internal damper overhaul procedure. Tubeless-tire removal, repair, and remounting are referred to Honda’s separate Common Service Manual, which is not included.

Securely support the motorcycle for wheel or suspension work and follow the manual’s shop-safety precautions.

Electrical Diagnosis and Wiring Diagrams

Charging and no-spark troubleshooting charts accompany regulator/rectifier, alternator, ignition-pulse-generator, and throttle-position-sensor tests. Peak-voltage checks specify an adapter such as Honda tool 07HGJ-0020100; ignition timing is inspected, not adjusted.

Four complete wiring diagrams distinguish 1995 from later versions and separate California wiring from 49-state/Canada wiring. Cable and harness routing illustrations show installation paths around the frame and engine.

File Format, Navigation, and Readability

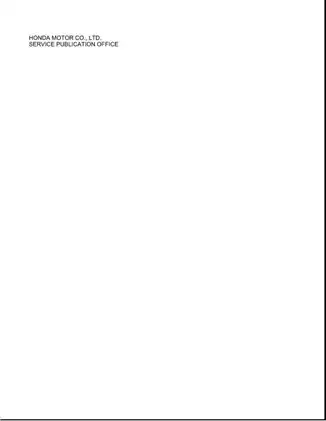

The 375-page total includes 359 service and index pages, one cover, five preliminary pages, nine blank “MEMO” pages, and one appended page of external parts links. All of these pages are already included in the stated total; the links page is not an embedded parts catalog.

Text search: The scanned workshop pages have no searchable text layer. Only the appended parts-links page contains selectable text.

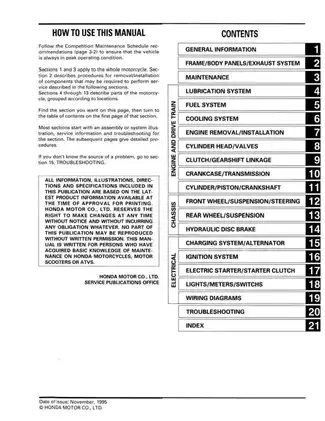

Navigation: Embedded PDF bookmarks provide access to all 20 service chapters, the index, and introductory material.

Wiring readability: The black-and-white schematics require zooming for small labels. Some wire-color and connector markings remain difficult to read when enlarged.
