1995–1996 Honda CBR600F3 Factory Service & Repair Manual PDF

This Honda Motor Co., Ltd. factory service manual covers the 1995–1996 Honda CBR600F3 in 49-state, Canada, and California configurations. The publication carries a December 1994 issue date and documents maintenance, diagnosis, and mechanical repair of the liquid-cooled inline-four motorcycle.

The download contains a 358-page scanned PDF with chapter bookmarks. Its pages are image-only, with no embedded searchable text; separate parts-catalog images and exploded views are also included in the ZIP.

• Maintenance and adjustment: Scheduled maintenance, oil/filter service, valve-clearance inspection and shim adjustment, carburetor synchronization, drive-chain replacement, clutch checks, and steering-head bearing inspection.

• Engine and transmission repair: Engine removal and installation, cylinder-head and valve repair, clutch inspection, crankcase separation, transmission disassembly, and crankshaft/piston service.

• Fuel and emissions: Constant-velocity carburetor overhaul, pilot-screw adjustment, U.S.-market high-altitude settings, Direct Air Intake diagnosis, and California secondary-air and EVAP procedures.

• Lubrication and cooling: Oil-pressure testing, oil-pump inspection, radiator-cap and cooling-system pressure tests, thermostat checks, water-pump replacement, and coolant bleeding.

• Chassis and brakes: Body-panel removal, wheel and steering service, fork disassembly, rear-suspension inspection, brake bleeding, and front/rear master-cylinder and caliper repair.

• Electrical troubleshooting: Charging, ignition, starter, meter, switch, speed-sensor, and fuel-pump tests, supported by diagnostic flowcharts and four year/market-specific wiring diagrams.

Honda wrote this manual for readers with basic maintenance knowledge of its motorcycles, scooters, or ATVs; the repair chapters call for additional skills, measuring equipment, and specified service tools.

Model Identification and Regional Differences

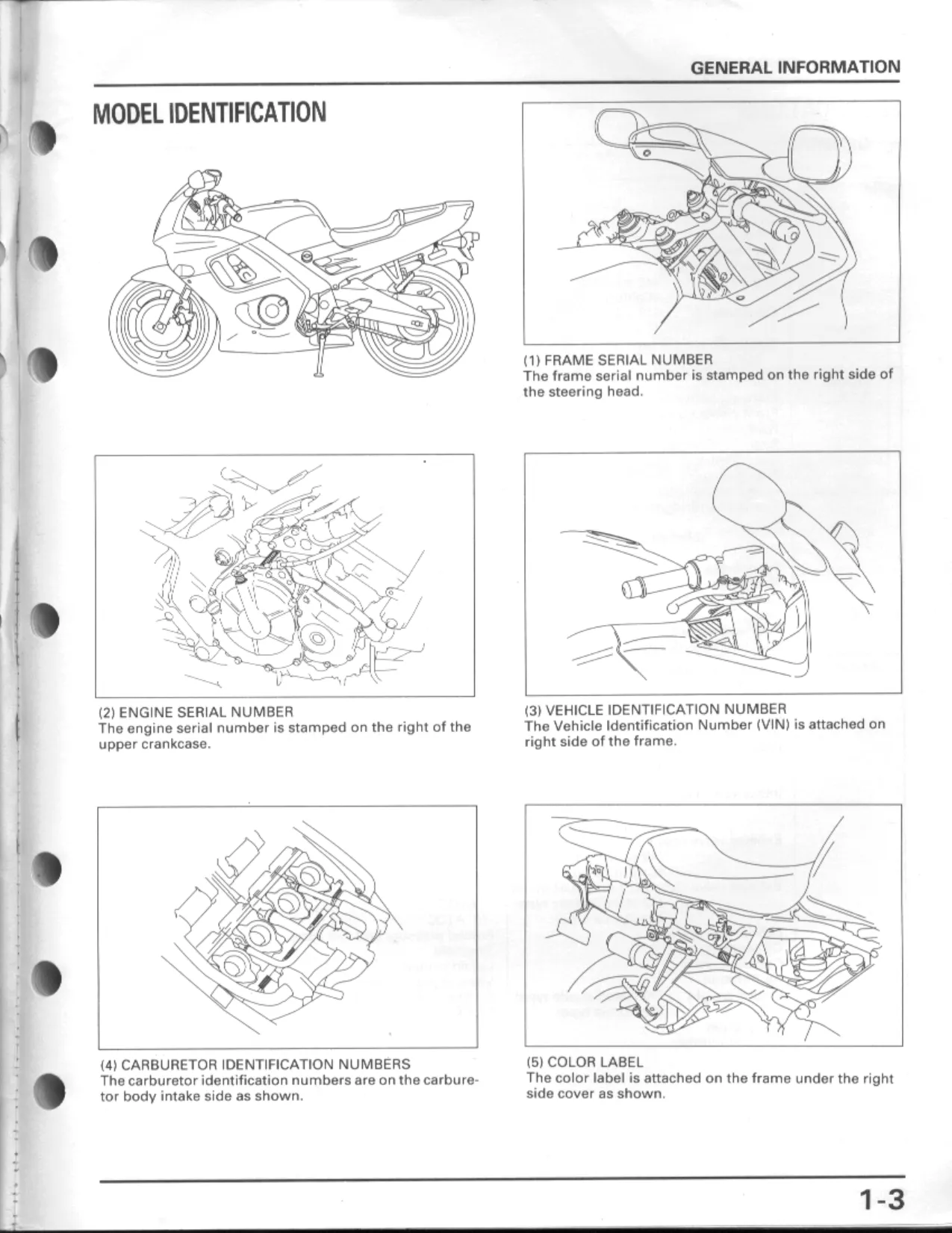

General Information identifies the frame serial number, engine serial number, VIN, carburetor identification number, and color-label locations. It supplies component-specific torque tables, capacities, wear limits, lubrication and seal points, cable and hose-routing views, and special-tool references.

The constant-velocity carburetor tables distinguish VP61A for 49-state models, VP60A for Canada, and VP62A for California. Regional differences also appear in camshaft specifications, ignition timing, and fuel-system hose routing.

Carburetors, Direct Air Intake, and Emissions

Fuel-system repair includes the air-cleaner housing and D.A.I. duct, carburetor-assembly removal and installation, internal disassembly and inspection, pilot-screw adjustment, and U.S.-market high-altitude adjustment. California-specific procedures address the secondary-air and EVAP hardware, including the canister and purge-control valve.

The D.A.I. system-location and hose-routing views distinguish the market configurations. Its troubleshooting charts connect air-vent-solenoid and relay tests with speed-sensor and speedometer checks, helping trace intake-control faults before choosing a replacement component.

Fuel-system cautions address compressed-air damage to CV diaphragms and contamination through exposed intake ports.

Engine, Clutch, and Bottom-End Repair

The cylinder-head chapter includes compression testing, camshaft and head removal, valve-guide replacement, valve-seat inspection and refacing, head assembly, and cam-timing installation. Timing drawings distinguish the IN and EX camshafts; the holder-bolt cautions explain how uneven tightening can break a camshaft holder.

Engine-in-frame work: The oil pump, carburetors, water pump, cylinder head and valve train, clutch and gearshift linkage, alternator and flywheel, ignition pulse generator, starter motor, and starter clutch can be serviced with the engine installed.

Engine-out work: Crankcase/transmission and crankshaft/cylinder/piston work require engine removal, with support, removal, installation, internal inspection, and reassembly covered. The transmission procedures include gear and shaft checks and shift-drum/shift-fork service; separate clutch and crankshaft chapters add clutch-pack inspection and piston/connecting-rod service.

Color-coded selection tables match connecting-rod and main-journal bearings to the component identification codes, with oil-clearance checks to verify the fit. Crankcase assembly illustrations identify sealant-free areas around oil passages and main-bearing journals.

Lubrication and Cooling-System Service

The lubrication chapter adds a circuit illustration and repair information for the oil pan, pump, pressure-relief valve, strainer, filter, and oil cooler.

Cooling coverage includes radiator and fan removal, thermostat and thermo-valve testing, reserve-tank service, and water-pump mechanical-seal inspection. A leaking mechanical seal calls for water-pump assembly replacement; the chapter does not present it as a separate seal rebuild.

Bodywork, Suspension, and Hydraulic Brakes

Body and chassis coverage includes fairings, seat, fuel tank, rear fenders, exhaust, handlebars, both wheels, front fork, steering stem, rear shock, suspension linkage, and swingarm. Rear-shock procedures cover removal, inspection, lower-joint needle-bearing replacement, installation, and disposal.

The hydraulic-brake section documents fluid replacement and air bleeding, pad and disc inspection, and front and rear master-cylinder and caliper repair. Its caliper-support precautions address the risk of brake-hose damage.

Tire-service scope: Tubeless-tire removal, repair, and remounting are referred to the separate Honda Common Service Manual. Wheel-balancing instructions are included here in the front-wheel section, with a cross-reference from the rear-wheel section.

Electrical Tests and Workshop References

Charging-system diagnosis covers the battery, alternator, and regulator/rectifier. Ignition testing addresses the coils, pulse generator, and throttle-position sensor; starter coverage includes the motor, relay, and starter clutch.

The lights/meters/switches chapter covers the combination meter, speed sensor, coolant-temperature circuit, fuel pump, cooling-fan controls, and side-stand switch. Separate troubleshooting charts address starting difficulties, loss of power, poor low/high-speed performance, and handling faults.

The wiring diagrams distinguish '95 and After '95 versions for both 49-state/Canada and California configurations. Charging and starter diagnostic flowcharts supplement these circuit drawings.

Factory tool references include the 07757-0010000 valve-spring compressor, 07JMB-MN50300 clutch-center holder, 07947-KA50100 fork-seal driver, and 07HGJ-0020100 peak-voltage adapter, with additional tools specified for the drive chain, steering stem, flywheel, and rotor.

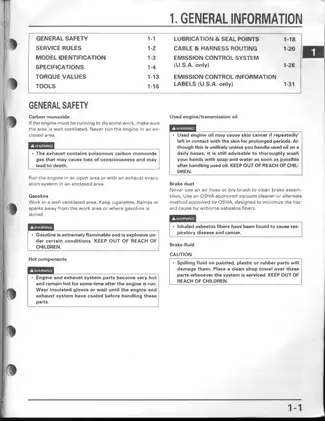

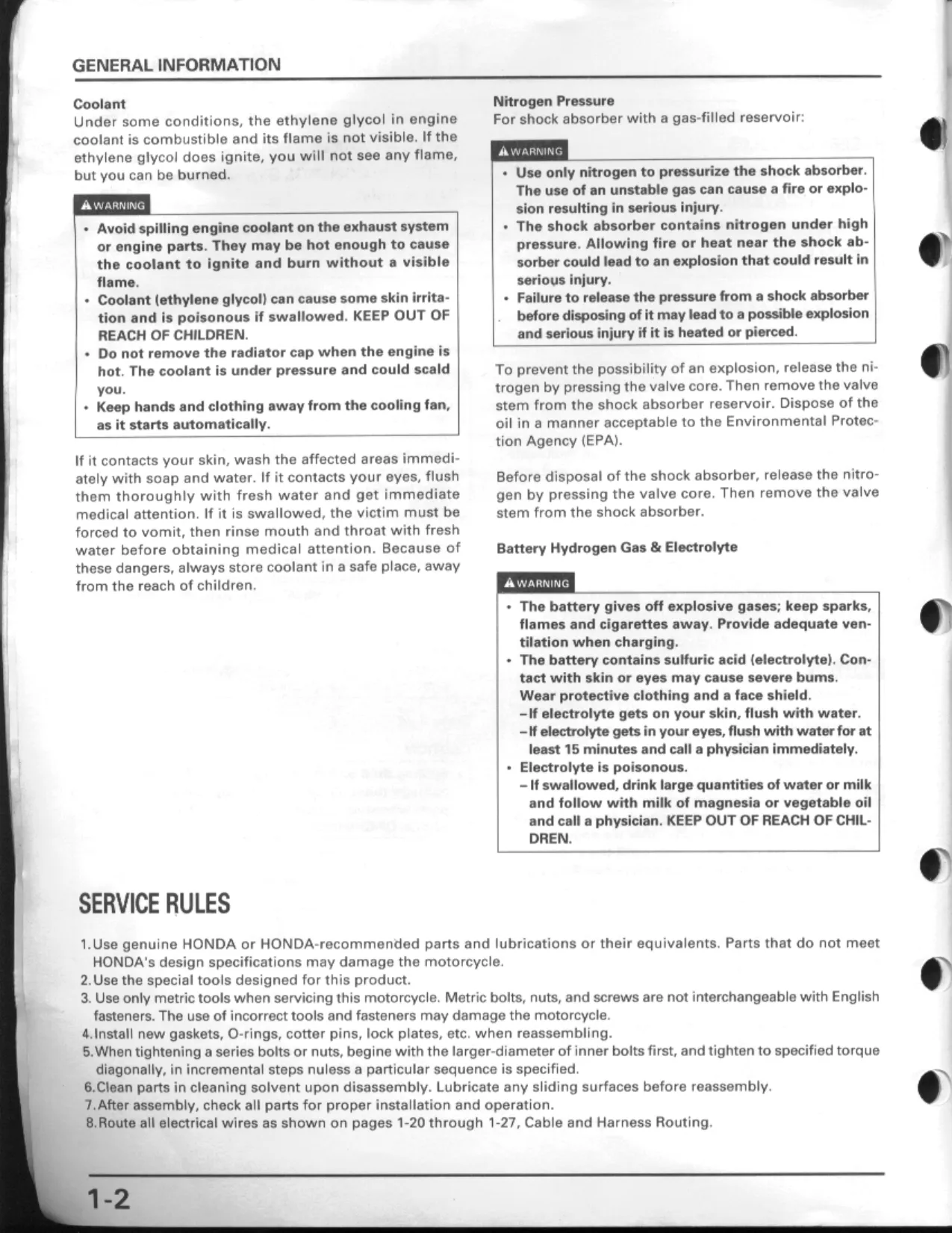

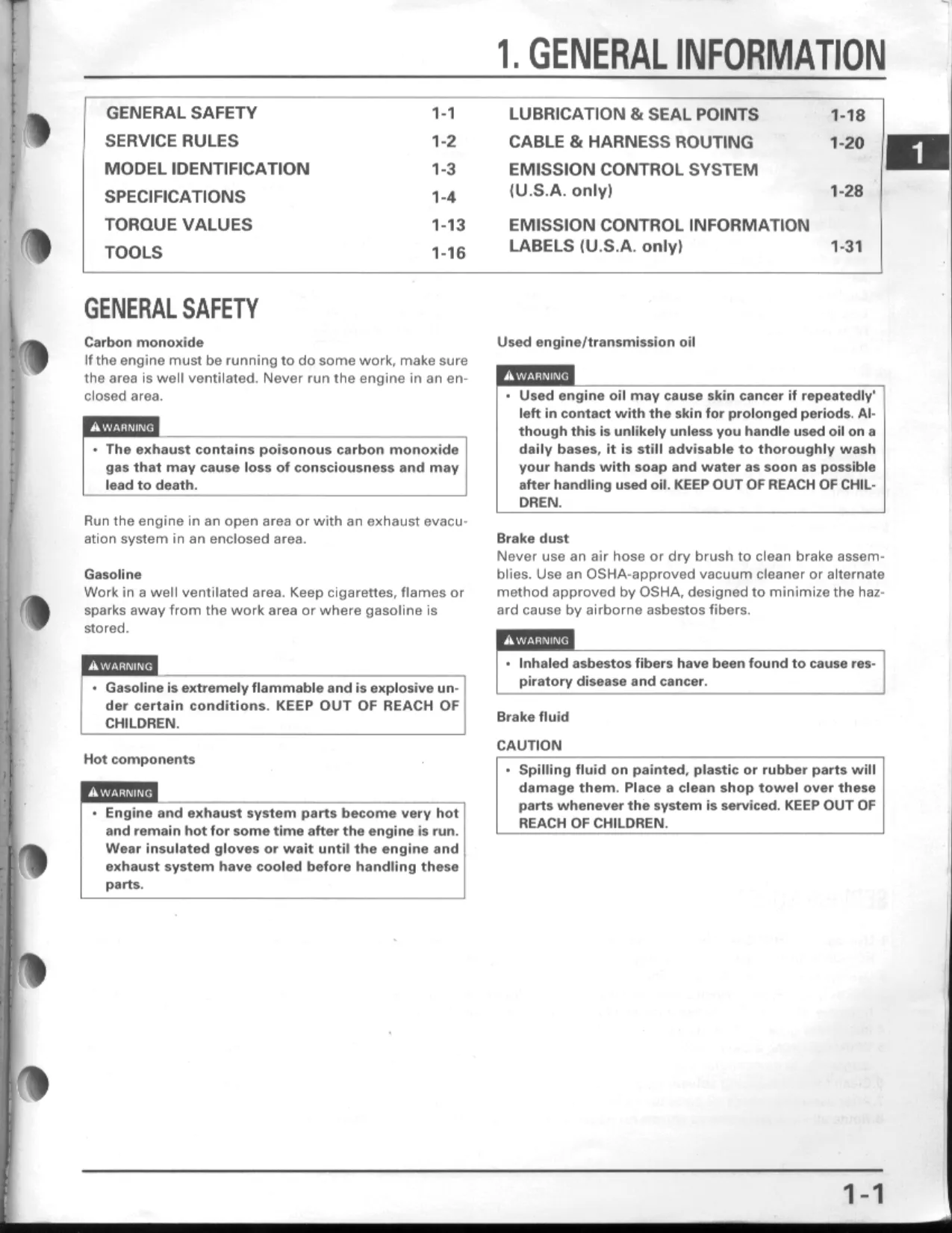

Work involving gasoline, hot pressurized coolant, brake fluid, battery electrolyte, the nitrogen-charged rear shock, or a supported engine should follow the safety practices and support equipment specified in the manual.

File Contents and Readability

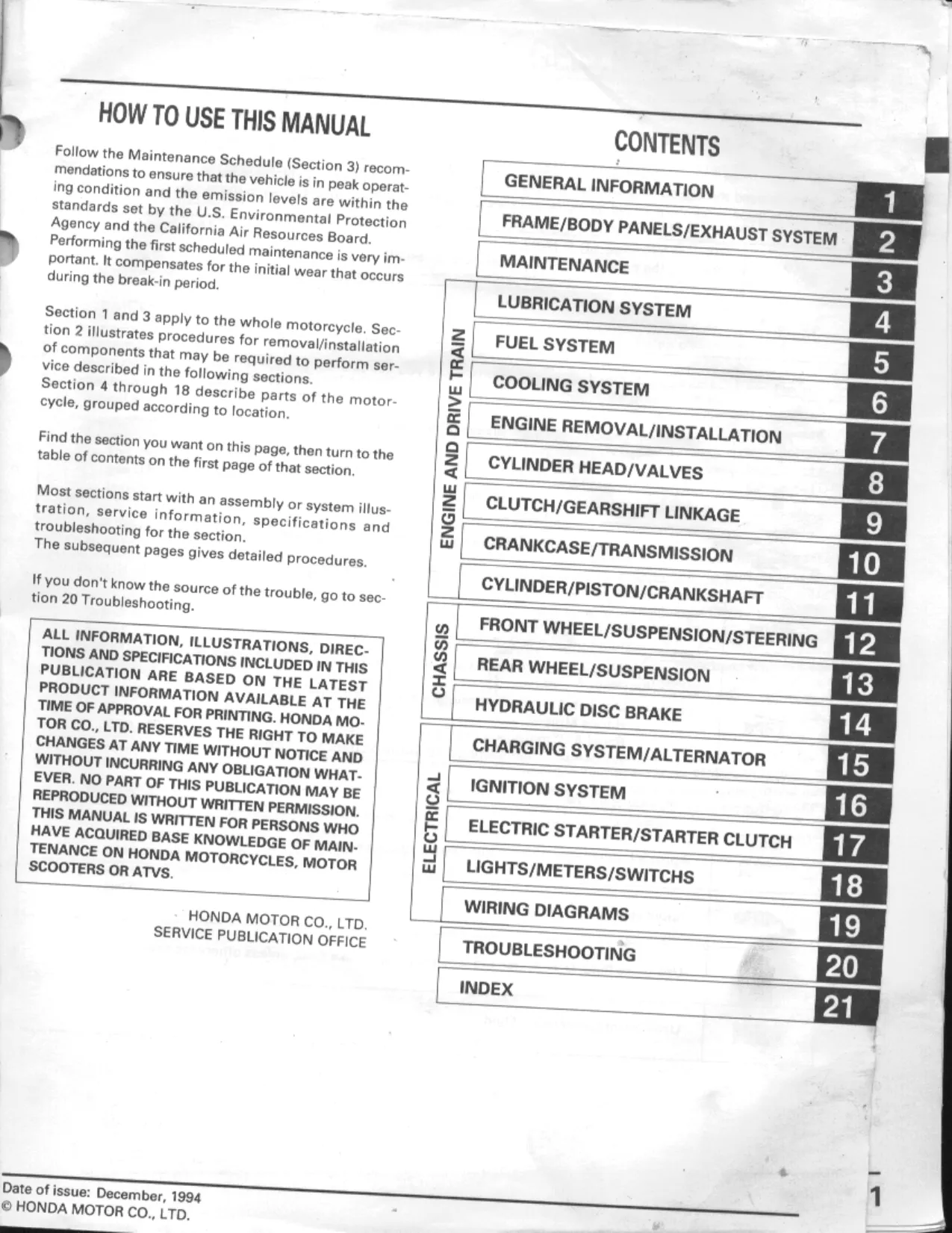

The PDF total includes one cover page, one combined introduction/contents page, and all service sections, including eight wiring-diagram scan pages and the two-page index. These pages are already counted in the stated total.

Navigation: There are 22 PDF bookmarks covering the contents and Sections 1–21. Small wire color codes and connector labels need magnification; some fine lettering remains soft in the scans.

Additional images: The ZIP also contains 83 GIF parts-catalog images labeled CBR600F3 '97–'98 / CBR600SE '98 and 62 JPEG component drawings. These are separate from the service PDF and are not included in its page count. The parts catalog has its own model applications and does not extend the service manual's repair coverage.
