1998–2003 Honda VTR1000F Super Hawk Service & Repair Manual (P/N 61MBB05)

Honda’s service manual for the 1998–2003 VTR1000F Super Hawk covers the 49-state/Canada and California versions. The cover carries reference 61MBB05, and the issue date is February 2001.

• Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, camshaft timing, and shim-under-bucket valve-clearance adjustment.

• Clutch and transmission: Hydraulic clutch bleeding, master and slave cylinder service, clutch inspection, crankcase separation, and transmission, shift-fork, and shift-drum repair.

• Fuel and emissions: Carburetor overhaul and synchronization, pilot-screw and high-altitude adjustments, starting-enrichment checks, and PAIR and California EVAP system testing.

• Lubrication and cooling: Oil-pressure diagnosis, oil-pump inspection, radiator pressure testing, thermostat checks, coolant replacement, and water-pump mechanical-seal replacement.

• Chassis and brakes: Front fork overhaul, steering-head bearing service, rear suspension linkage and swingarm bearing replacement, and hydraulic brake inspection and bleeding.

• Electrical diagnosis: Charging and ignition tests, electric starter overhaul, lights and meter checks, switch testing, wiring diagrams, and symptom-based troubleshooting charts.

This manual is suited to mechanics with precision-measurement skills, proper engine-support equipment, and the electrical test tools specified for the diagnostic work.

Engine, Clutch, and Internal Repair

Cylinder-head work includes shim selection calculations and separate front and rear camshaft timing references. Crankshaft repair includes color-coded bearing selection and Plastigauge clearance checks; transmission inspection covers gear bushings and shift components.

The engine installation section distinguishes actual tightening torque from the wrench reading when a locknut-wrench adapter is used. Transmission and crankshaft/piston work require engine removal, while cylinder-head and clutch service can be performed with the engine in the frame.

Carburetor Service and California Emissions

The fuel tables distinguish VPT2A/VPT3B carburetors for the 49-state/Canada version from VPT1A/VPT3C units for California. The floats are not adjustable; the inspection section gives replacement criteria rather than a float-adjustment procedure.

California-specific hot-restart diagnosis includes vacuum and airflow checks for the EVAP purge and carburetor air vent control valves. Vacuum hose routing diagrams identify their connections.

Carburetor cautions address diaphragm damage from compressed-air cleaning and pilot-screw seat damage from overtightening.

Oil Circulation and Cooling-System Service

Oil-pump inspection separates the main and cooler pump sections, with rotor clearances and relief-valve checks. The lubrication circuit illustration and Lubrication & Seal Points tables identify oil paths and assembly materials.

Water-pump coverage extends to shaft, bearing, oil-seal, and mechanical-seal replacement, including the required press tools.

Forks, Steering, and Hydraulic Brakes

Fork service includes bushing and seal inspection, fluid-level checks, and rebound-damping precautions. Steering service includes bearing replacement and preload measurement.

Rear suspension coverage includes shock removal, inspection, replacement, and pivot-bearing service. Internal shock-damper disassembly is excluded; the damper contains pressurized nitrogen.

Front and rear brake sections provide master-cylinder and caliper disassembly views, piston inspection limits, and reassembly procedures. Safety notes address secure support during engine, wheel, and suspension work.

Fault Tracing, Instruments, and Wiring

Charging-system charts distinguish battery, leakage, alternator, and regulator/rectifier faults. Ignition testing covers the ICM, converter unit, ignition pulse generator, throttle sensor, and coolant-temperature sensor. Comparing readings at the component and ICM connections helps separate sensor faults from harness faults before replacement.

Ignition checks specify a peak-voltage tester or adapter 07HGJ-0020100 with a suitable digital multimeter.

Separate early and later instrument sections distinguish low-fuel warning and fuel-gauge systems. Cable & Harness Routing views accompany charging, ignition, and starter-circuit diagrams and the complete wiring diagrams. The starter section also covers the relay and clutch diode.

A Sample of Maintenance and Diagnostic Specifications

These examples represent a small selection of the manual’s maintenance and diagnostic reference data.

Engine service specifications include a 3.9-liter refill after draining and replacing the oil filter, plus an intake valve clearance of 0.16 ± 0.03 mm with the engine cold, below 35°C (95°F).

The float-level inspection specifies 16.6 ± 0.5 mm with the float valve seated and the float arm just touching the valve. Ignition timing is listed as 15° BTDC at idle; it is electronically controlled and cannot be adjusted.

PDF Navigation, Diagram Detail, and Included Pages

Search, bookmarks, and wiring labels: PDF text search is unavailable. Embedded bookmarks point to individual pages using image filenames instead of chapter names. Some small wire-color codes and connector labels in the complete wiring diagrams remain difficult to read when enlarged.

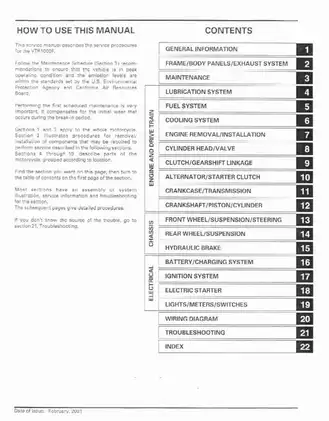

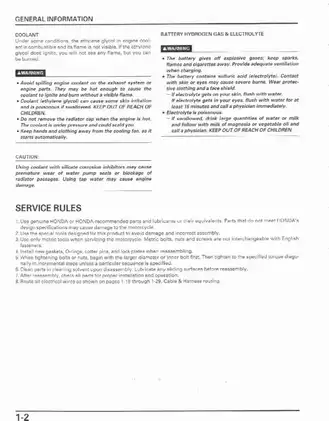

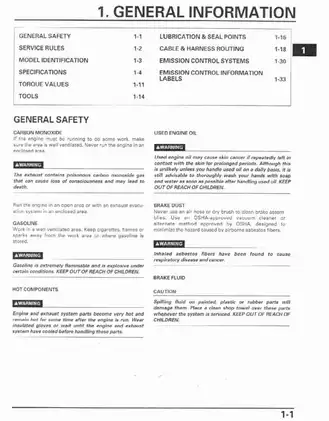

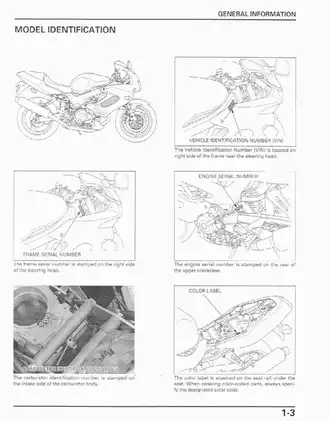

The download is one printable, English-language, 376-page PDF. That total includes one cover, one contents page, two index pages, 11 memo pages, and two blank pages.
