1998 Chevrolet Lumina Owner's Manual (P/N 10285606 B)

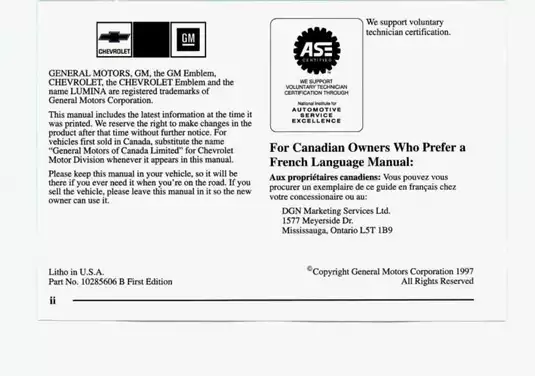

Chevrolet’s 1998 Lumina Owner’s Manual, First Edition, P/N 10285606 B, covers sedan models with the 3100 or 3800 Series II V6. This GM publication carries a 1997 copyright and provides operating instructions and owner-level maintenance information. Detailed diagnosis and repair work require the separate Chevrolet Service Manual.

PDF Search, Bookmarks and Page Count

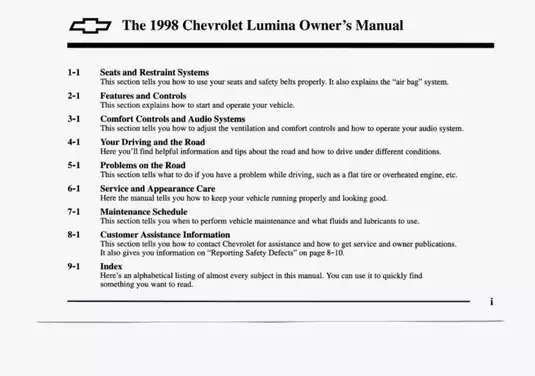

Search and chapter access: The PDF is partially searchable; some pages and passages lack searchable text, including the fuel-information page and part of the bulb-replacement section. Embedded bookmarks cover the main chapters and many subsections; the scheduled-maintenance link opens one page early. Small labels in the driver’s-side electrical-center photograph remain difficult to read when enlarged.

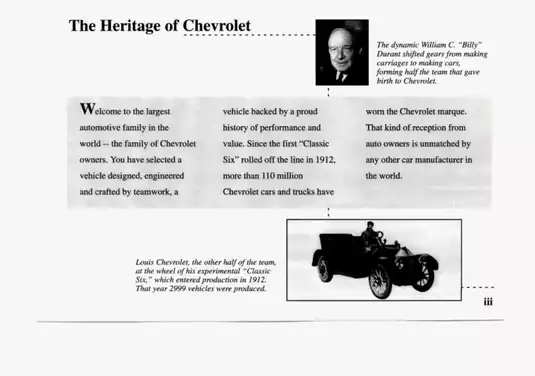

One printable, English-language 356-page PDF, including two cover pages, two blank pages, three introductory background pages and two publication-ordering pages.

Controls, Routine Care and Roadside Procedures

These selected topics show the manual’s scope; further subjects include trailer-towing guidance and interior and exterior care.

• Vehicle controls: Starting, automatic transaxle operation, parking brake use, instrument-panel warnings, climate controls and Delco Electronics audio-system operation.

• Owner maintenance: Engine oil, automatic transaxle fluid and coolant checks, air-filter replacement, tire rotation, maintenance schedules and recommended fluids.

• Cooling system: Overheating guidance, coolant recovery-tank checks and engine-specific radiator-filling procedures with air-bleed valve identification.

• Roadside problems: Step-by-step jump-starting instructions using the remote positive terminal, flat-tire replacement, towing illustrations and compact-spare limitations.

• Electrical reference: Instrument-panel fuse-block and underhood electrical-center layouts, circuit assignments, replacement-bulb listings and lamp-replacement instructions.

• Seats and restraints: Manual and power seat adjustments, safety-belt routing, rear comfort guides, frontal air-bag operation and the optional built-in child restraint.

Written for vehicle owners, the manual limits do-it-yourself maintenance to tasks for which the reader has the necessary knowledge, tools and equipment.

Vehicle Operation and Security

The control sections distinguish column and console shifters, explain the Brake-Transaxle Shift Interlock (BTSI), and cover trunk releases, engine coolant heater use and new-vehicle break-in. Standard and optional instrument-cluster views accompany explanations of warning lights, including the different meanings of a flashing or steady SERVICE ENGINE SOON light.

Keys and radio: PASS-Key II guidance addresses key-related starting problems and SECURITY-light behavior. Remote keyless entry instructions cover battery replacement and resynchronization; matching a replacement transmitter is a dealer procedure. THEFTLOCK instructions explain radio recovery after a power loss using the owner’s existing secret code.

Maintenance Planning and Owner Checks

The maintenance schedule separates owner checks from inspections assigned to a qualified service center. This helps owners plan routine care and discuss additional work with a shop, including the driving conditions that change automatic transaxle fluid-and-filter service requirements.

Step-by-step instructions cover resetting the CHG OIL SOON monitor after an oil change, replacing halogen headlamp bulbs and replacing windshield wiper blades. Annual checks include the starter switch, BTSI, ignition-transaxle lock and parking-brake/PARK mechanism.

Engine-specific underhood views, oil-viscosity charts and the tire-rotation diagram support the written procedures. Capacity tables and maintenance replacement-part listings provide fluid, filter, spark-plug and bulb references.

Cooling, Brakes and Restraint-System Limits

Engine differences: The radiator-fill instructions distinguish the 3100’s thermostat-housing and bypass-tube bleed valves from the 3800’s thermostat-housing valve. The overheated-engine protection operating mode applies specifically to the 3100.

The manual warns that an incorrect radiator-fill procedure can cause severe overheating damage. It also identifies premature engine, heater-core or radiator corrosion as a risk of using coolant other than the specified silicate-free DEX-COOL.

Brakes and restraints: ABS coverage explains operation and warning-light responses. Brake-care information distinguishes the 3100’s front-disc/rear-drum arrangement from the 3800’s four-wheel discs; it does not provide a brake-overhaul procedure.

The restraint section explains air-bag deployment and post-collision replacement needs, alongside the built-in child restraint’s harness adjustments. Air-bag servicing requires a qualified technician and the appropriate service information.

Examples of Oil-Capacity and Fluid-Check Data

For an engine oil and filter change, the capacity table lists approximately 4.5 quarts (4.3 L) for either V6.

The automatic transaxle level-check section specifies a normal fluid operating temperature of 180–200°F (82–93°C). Its instructions also address vehicle position, engine-idling conditions and waiting periods after demanding driving.
