Arctic Cat F, Crossfire, M, Panther, Bearcat (370-1000cc Engines) Snowmobile 2008 Service Manual Collection (P/N 2259-003)

The harness drawings complement the workshop procedures with circuit routes and connector layouts. This collection contains selected wiring sheets, not the complete all-model wiring publication, and does not cover four-stroke repairs.

Diagnostic-tool manuals: The referenced EFI Analyzer Usage Manual for 500/600 models and EFI Diagnostic System Manual for 800/1000 models are separate publications and are not included.

PDF Search and Wiring-Sheet Detail

Text access and diagram detail: Workshop text is searchable, with bookmarks for all eight service sections and the wiring appendix. The appended wiring sheets and some illustration labels are not searchable. Small wire-color codes and connector numbers require zooming.

One printable English PDF contains 680 pages, including the contents page and the appended wiring sheets listed above.

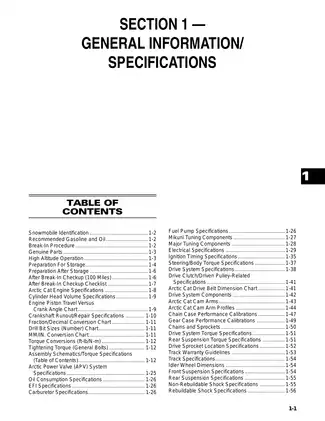

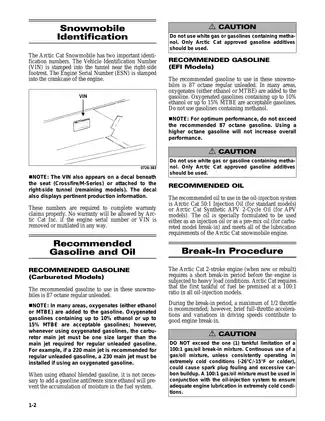

Engine, EFI and Snowmobile Chassis Service

These selected coverage highlights outline major workshop jobs. Other topics include storage preparation and the after-break-in checklist.

• Engine repair: Step-by-step removal, crankcase disassembly, inspection, component measurement, reassembly, installation, pressure testing, ignition-timing verification, and final operating checks.

• Engine-related systems: Fan and water-pump repair, recoil-starter overhaul, Arctic Power Valve service, servomotor and cable checks, and Exhaust Controlled Timing diagnosis.

• Fuel and oil injection: Carburetor repair and synchronization, EFI fault finding, throttle-body service, fuel-pressure checks, and oil-pump bleeding, synchronization, output testing, and check-valve service.

• Drivetrain and brakes: Clutch and driven-pulley repair, belt alignment and deflection, standard chain-case and ACT gear-case service, reverse assemblies, and hydraulic brake repair and bleeding.

• Track and shocks: Five model-specific skid-frame repair procedures, track tension and alignment, drive-sprocket positioning, and ACT, position-sensitive, Fox Air, and Fox Zero Pro shock service.

• Electrical testing: Resistance and peak-voltage measurements, CCU codes, ignition and timing sensors, electric-start and reverse-actuator diagnosis, and lighting, gauge, and warmer tests.

Suited to technicians experienced in two-stroke engine and snowmobile chassis repair, with the measuring equipment, pullers, and diagnostic tools required by the procedures.

Engine Inspection, Cooling and Exhaust Control

Separate engine procedures distinguish the model families, including Crossfire/M-Series top-side work that can be performed with the engine installed. Inspection references cover head volume and squish, piston/cylinder clearances, ring and pin data, connecting-rod measurements, crankshaft limits, APV settings, and ignition timing, alongside torque, sealant, and locking-compound callouts.

Arctic Cat recommends a qualified machine shop for connecting-rod, center-bearing, and oil-injection pump drive-gear service.

The engine-related chapters distinguish the 370 axial fan and belt from the 500/600 and 800/1000 water pumps. F-Series/T-Series and Crossfire/M-Series cooling schematics show their different layouts; APV and ECT coverage explains servo cycling, fail-safe behavior, and exhaust-temperature sensing.

Engine tool references include Drive Clutch Puller 0644-207, Flywheel Puller 0744-040, and Piston Pin Puller 0644-328.

Mikuni Carburetion and EFI Fault Finding

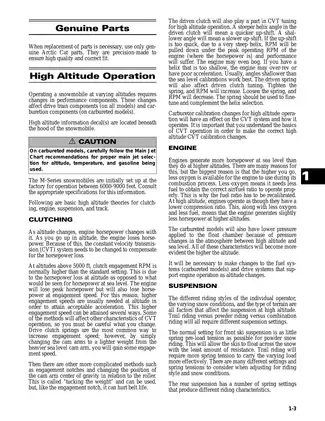

Carburetor schematics accompany throttle/choke cable work and tuning guidance for changes in altitude, temperature, and gasoline type. Model-specific main-jet selection refers to the snowmobile's jet chart.

EFI coverage explains ECU/CCU power and inputs from throttle-position, intake-air, coolant-temperature, barometric-pressure, timing, and knock sensors where fitted. The fault codes and component test charts help distinguish fuel-delivery problems from ignition or electrical-supply faults before parts are selected.

The Memory Problem Diagnosis Test covers stored faults and ECU memory clearing. EFI tool references include Analyzer 0644-476, Fuel Pressure Test Kit 0644-493, and Laptop Diagnostic Tool 0744-048.

Clutch Calibration, Gear Cases and Brakes

Model- and altitude-specific tables cover clutch springs, cam arms and profiles, driven-pulley springs and helixes, drive belts, and alignment bars. Related references address chain/sprocket combinations, chain-case calibrations, ACT gear ratios, drive-sprocket locations, lubricants, and capacities.

The clutch installation warning identifies stationary-sheave damage caused by impact-tool tightening of the retaining bolt.

Brake fault charts address drag, a spongy lever, oscillation, and loss of braking, with separate Panther 370, Bearcat hydraulic, and ACT master-cylinder/caliper coverage.

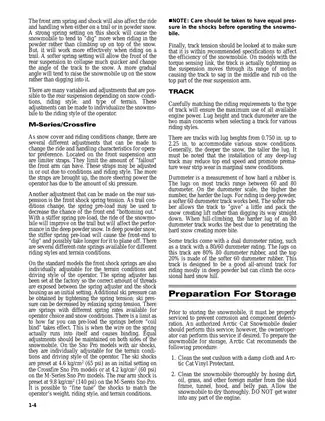

Suspension, Steering and Bodywork

A model-to-procedure servicing chart directs rear-suspension work on wear strips, rails, idlers, arms, and springs. Stock chassis and skid-frame mounting diagrams accompany the procedures; the manual warns that altered mounting locations can damage shocks and suspension components.

Steering coverage extends through posts, drag links, tie rods, spindles, ski alignment, front suspension arms, and sway bars. Body procedures cover consoles, belly pans, gas tank/seat assemblies, tunnels, rear bumpers, snowflaps, headlights, and headlight aim.

Harness Drawings and Electrical Reference

The color sheets include Bearcat 570 ignition, F5/F6/F8/F1000 ignition/main, and Crossfire/M-Series ignition/main harnesses. Further sheets cover F 570/T570 main and hood harnesses, the Bearcat 570/Panther 370 hood harness, and model-group handlebar harnesses.

Coil, voltage-regulator, sensor, and CCU tests pair with connector views and wire-color labels. A servomotor fault chart separates cable and valve problems from potentiometer, wiring, and power-supply faults.

Observe the manual's precautions for high-output ignition, pressurized EFI fuel lines, rotating clutches and tracks, and nitrogen-charged shocks. Follow the model-specific fastener torque, sealant, and locking-compound requirements before returning a repaired snowmobile to service.

Selected Piston-Clearance and Carburetor Settings

The engine tables list piston skirt-to-cylinder clearance ranges of 0.066–0.086 mm for the 370 engine and 0.085–0.115 mm for the 570 engine. These fitting clearances are listed separately from cylinder inspection limits.

The carburetor table gives a production float-height setting of 22–24 mm for the Mikuni VM-32 on the 370 engine and VM-34 on the 570. Jet, needle, and pilot-air-screw settings appear alongside these dimensions.
