Honda CR80R Factory Service Manual | 1985–1994

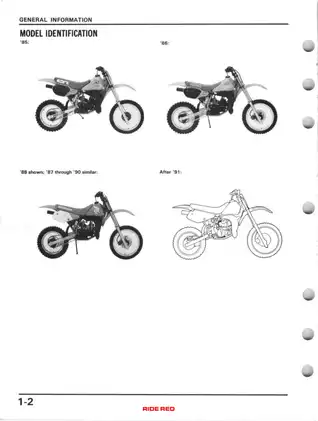

Honda’s factory service manual covers the 1985–1994 CR80R, with year-specific information for competition maintenance, engine and chassis repair, and ignition troubleshooting.

Searchable Text, Chapter Bookmarks and Wiring Detail

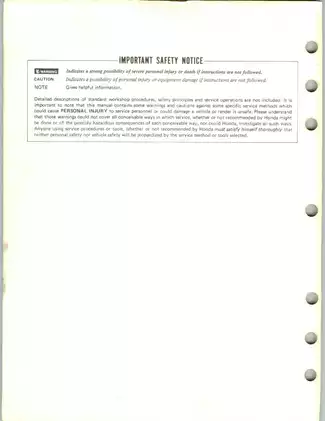

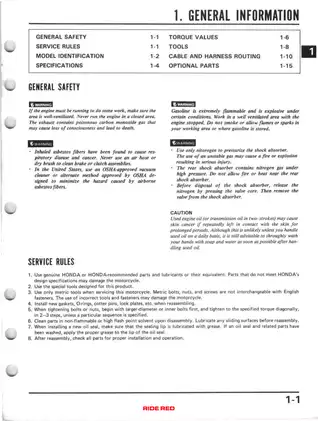

Text access and diagram detail: OCR text supports searches throughout the technical chapters, though recognition errors can affect exact matches. The cover and safety-notice page have no searchable text. Embedded bookmarks provide chapter navigation; small wiring color codes are clearer when enlarged.

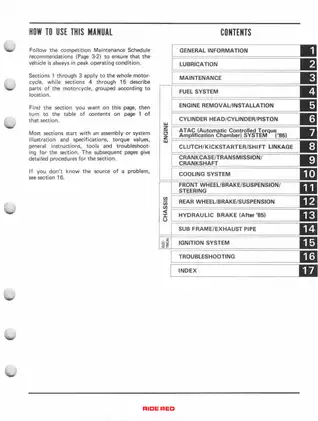

The download is one printable, English-language, 247-page PDF: 244 numbered manual pages, one contents page, the cover, and one unnumbered safety-notice page.

Two-Stroke Engine, Chassis and Ignition Service

These selected service topics outline the main coverage rather than the complete contents. Additional topics include control-cable lubrication and silencer packing replacement.

• Engine and top end: Step-by-step engine removal and installation, cylinder-head decarbonizing, piston and ring inspection, and reassembly.

• Crankcase and transmission: Crankcase separation, gear and shift-fork inspection, bearing replacement, and crankshaft installation.

• Fuel and ATAC systems: Carburetor overhaul, float adjustment, reed-valve inspection, racing-condition tuning, and model-specific ATAC valve service.

• Cooling system: Radiator-cap and system pressure tests, coolant replacement, and mechanical water-pump seal and bearing replacement.

• Suspension and steering: Fork disassembly, Pro-Link shock overhaul, swingarm and linkage bearing replacement, and steering-stem service.

• Brakes: Drum-brake inspection and repair, hydraulic pad and disc checks, master-cylinder and caliper overhaul, and air bleeding.

• Ignition diagnosis: Exciter-coil, pulse-generator and ignition-coil tests, engine-stop switch checks, wiring diagrams, and symptom-based troubleshooting.

This manual suits readers with established workshop skills and access to the measuring equipment and special tools required for internal engine and suspension work.

Engine Rebuilds and Cylinder Differences

From routine transmission-oil changes to complete engine removal, the manual pairs procedures with assembly illustrations, torque tables, internal clearances, fluid capacities, fuel/oil mixture specifications, and wear limits. These references support rebuild planning by identifying the measurements and tools needed, including crankcase puller 07937-4300000.

Cylinder service: The 1985 cylinder has reboring information and oversize piston options. Incorrect exhaust-port bridge finishing after reboring can cause a broken piston ring and a seized piston.

For 1986 and later models, the manual identifies a sleeveless, Nikasil-plated aluminum cylinder with no oversize piston option. It specifies cylinder replacement if excessive ring end gap remains with a new ring.

Clutch, kickstarter, and shift-linkage work can be performed with the engine in the frame. Internal transmission and crankshaft repair requires engine removal and crankcase separation.

Carburetor Tuning and the ATAC Mechanism

Carburetor variants: The specifications identify the PE67B for 1985 and PE68-series carburetors for later models. Carburetor cutaway views explain the starting, slow-jet, and main-jet circuits, while the Jet Needle/Air Screw Chart and temperature/altitude correction charts relate tuning changes to racing conditions.

These references help distinguish mixture problems from other faults: the tuning notes also discuss air leaks, worn crankshaft seals, and restricted intake or exhaust flow when large jetting changes appear necessary.

1985 ATAC system: The Automatically-controlled Torque Amplification Chamber section covers the governor, rack, cam, and butterfly-valve adjustment, with separate troubleshooting for poor low- and high-speed performance.

Suspension, Brake Variants and Cooling Repairs

The brake coverage distinguishes the 1985 front drum from the hydraulic front brake used afterward. Rear drum-brake procedures apply through 1991; later models have separate hydraulic rear master-cylinder and caliper procedures.

Suspension setup: Shock-linkage assembly drawings and damper piston-and-valve views accompany the overhaul procedures. Year-specific fork oil capacities, oil levels, and air-pressure references support chassis setup. Detailed rider-weight preload and damping setup is referred to the Owner’s Manual; this service manual supplies baseline spring lengths.

Water-pump coverage extends to shaft inspection, bearing replacement, and mechanical-seal installation, including the specified seal driver.

Suspension work involves spring force and a nitrogen-charged rear shock. Observe the manual’s precautions and verify final assembly and fastener torques before riding.

Ignition Testing and Symptom-Based Diagnosis

Primary-coil continuity illustrations and wiring diagrams support fault tracing through the ignition components and engine-stop circuit. The troubleshooting charts address hard starting, loss of power, poor running at different engine speeds, and handling problems.

Ignition timing is checked rather than adjusted. The manual links an incorrect timing result to checks of the alternator, pulse generator, and CDI unit.

A Preview of Torque and Carburetor Settings

Fastener specifications: The torque references list 25–29 N·m for the cylinder-head nuts and 70–90 N·m for the swingarm pivot nut.

Float adjustment: The carburetor section specifies a float level of 19.0 mm (0.75 in), illustrated with float-level gauge 07401-0010000.
