Epson Stylus PHOTO RX600/610 & RX620/630 Service Manual, 2003–2004 (P/N SEOT03006)

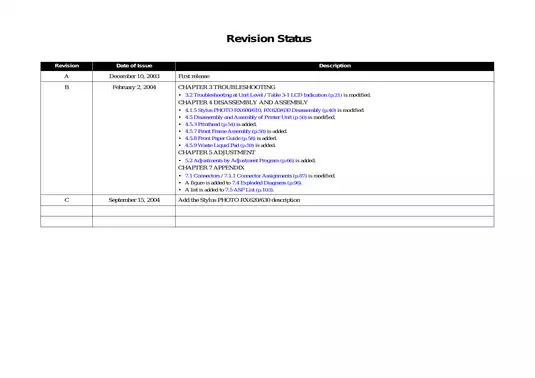

Epson document SEOT03006, Revision C (September 15, 2004) is the factory service manual for the Stylus PHOTO RX600/610 and RX620/630 scanner-printer-copier family. Revision C specifically adds RX620/630 coverage. It covers bench repair and adjustment rather than everyday operation.

PDF Search, Bookmarks, and Diagram Detail

Text navigation and schematics: Body text and tables are searchable, with embedded bookmarks for chapters and subsections. Many component and pin labels within the schematics are not searchable. Fine schematic lines and small labels are light and require magnification.

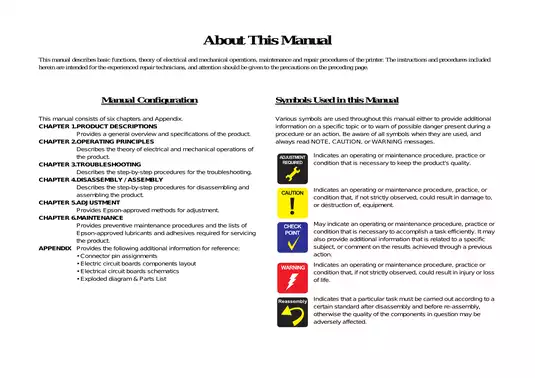

One printable, 106-page PDF, including seven opening pages with the cover, preliminary material, and contents; 78 pages covering Chapters 1–6; and a 21-page technical appendix.

Printer, Scanner, and Adjustment Coverage

The following is a selection of covered topics. Further material includes operating-principle explanations and a service-dispatch checklist for checking the machine before returning it to the customer.

• Fault isolation: Unit-level flowcharts distinguish power, detected-error, print-quality, paper-feed, and control-panel faults, supported by printer, scanner, USB, memory-card, motor, and sensor checks.

• Printer mechanism repair: Step-by-step procedures cover the CR scale, carriage, printhead, ASF, power unit, front frame, front paper guide, waste-liquid pad, damper, stacker, and main board.

• Scanner and panel repair: Panel-board and LCD disassembly accompany scanner teardown covering the upper housing, CCD module, motor, timing belt, CR shaft, and HP sensor board.

• Post-repair adjustment: Covers market initialization, USB and head IDs, head-angle, first-dot-position, bidirectional, PW-sensor, and carriage-motor heat-protection adjustments, plus check-pattern printing.

• Service-program functions: Describes intensive head cleaning, initial ink charging, Refurbishment for DOA, waste-ink counter service, EEPROM backup and restoration, complete EEPROM export, and firmware uploading.

• Technical appendix: Provides connector assignments, C543 main-board component layout, six schematic sheets, six numbered exploded-diagram sheets, and the matching ASP parts-reference list.

Epson wrote this manual for experienced repair technicians and specifies that repairs should be performed by Epson-certified personnel.

Model and Regional Details

The manual distinguishes RX600/610 from RX620/630 by operation-panel design and LCD specification. Its CompactFlash update section assigns FWD12UP.dat to RX600/610 and FWE91TLS.dat to RX620/630.

Regional service data separates Europe/EAI cartridges T0481–T0486 from Asia/Latin cartridges T0491–T0496. It also identifies EAI-only Wallet Photo Copy behavior and separate EMC/EAI LCD wording. These distinctions support firmware selection, replacement-board initialization, and consumable identification. The cartridge section expressly excludes compatibility with Stylus CX3100/3200.

The appendix introduction covers all four models, but individual schematic and exploded-diagram title blocks retain PM-A850/A850V and earlier RX-family labels. These are the shared C543 references supplied in this revision, rather than a separately redrawn RX620/630 schematic set.

Diagnosis Beyond the Error Message

Printer troubleshooting connects pump failure, poor ink absorption, abnormal carriage travel, missing dots, misaligned vertical lines, white-line defects, misfeeds, multiple-sheet pickup, and initialization stalls with specific checks and remedies.

The checks address the capping and pump path, head FFC, CR/PF motors, carriage guide and belt, ASF clutch and return parts, PE/PW sensors, and main board. Scanner tables cover initialization, carriage motion, fluorescent-lamp and inverter operation, CCD image quality, home-position sensing, and USB communication.

Motor specifications, sensor-signal tables, and connector references support electrical fault isolation. The troubleshooting structure helps technicians distinguish mechanical, connection, and board faults before selecting a replacement assembly.

Adjustment Requirements and Repair Cautions

Replacement guidance links board, printhead, printer-mechanism, power-unit, and waste-pad work with the corresponding calibration and service operations. Readable EEPROM data can be transferred to a replacement main board, retaining USB identification, head data, calibration values, and ink counters.

Software requirements: The documented adjustments use Epson’s specialized adjustment program. The manual lists Windows 98/Me/2000/XP and a USB-equipped PC as its operating environment. This download supplies the manual PDF; the executable adjustment program and firmware files are separate requirements.

Incorrect waste-ink tube positioning after middle-housing installation can cause leakage. Omitting the specified calorific-limitation adjustment after relevant motor or power-supply work can burn the carriage-motor coil; the manual also restricts when this function may be used.

Bench Reference and Maintenance

Fastener identification and component-specific torque data accompany removal illustrations. The tool table identifies Epson hand-tool codes and the 2000 cN tension gauge (1213123).

Maintenance covers cleaning and illustrated lubrication points for the scanner CR shaft and driven-shaft area, ASF, front and main frames, and carriage. Specified greases include G-26 (1080614) and G-58 (1082176).

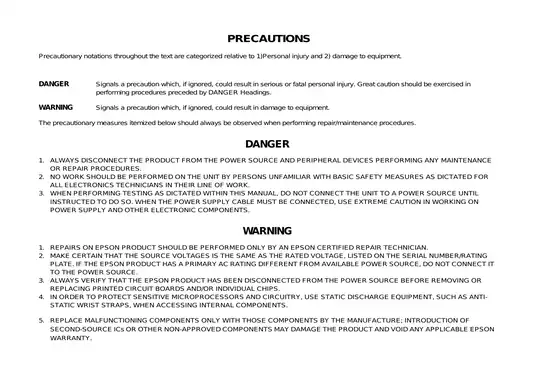

For safe repair work, Epson requires the power cord to be disconnected before disassembly and specifies ESD protection around circuit boards. Apply power only when the relevant test calls for it, with particular care around the power supply and other electronics.

Examples of Motor and Print-Alignment Specifications

The printer carriage-motor specification lists 22.65 Ω ±10%, while the paper-feed motor is specified at 30 Ω ±10%. These are separate component resistance specifications used alongside the electrical troubleshooting references.

For first-dot-position adjustment on normal A4 paper, the documented print-start reference is 2.0–4.0 mm from the left edge. The adjustment section explains the associated pattern evaluation and EEPROM setting.
