Volvo Penta TAMD61–63 & TAMD71–75 1996 Marine Diesel Manual Collection (P/N 7735718-4)

512 Pages • ZIP Download: 12 Printable PDFs (English)

4.7starstarstarstarstar_half(3)
$13.97 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Volvo Models Covered & Key Technical Specifications

Models: TAMD61A, TAMD62A, TAMD63L-A, TAMD63P-A, TAMD71A, TAMD71B, TAMD72A, TAMD72P-A, TAMD72WJ-A

Sub-models / Variants: 6(x) series, 7(x) series, EDC (Electronic Diesel Control; TAMD72P-A), WJ (Water Jet; TAMD72WJ-A), Marine Diesel Engine

Additional document coverage: TAMD63L-B (operator’s-manual technical data); TAMD73P-A, TAMD73WJ-A (instruction book and wiring diagrams); TAMD74A-A, TAMD74A-B (operator’s manual, technical data, and wiring diagrams); TAMD74C-A, TAMD74L-A, TAMD74P-A (instruction book, technical data, and wiring diagrams); TAMD74C-B, TAMD74L-B, TAMD74P-B (technical data and wiring diagrams); TAMD75P-A (technical data only).

Model Year: 1996


  • Engine configuration: 6-cylinder, 4-stroke, in-line

  • Fuel delivery: Direct injection

  • Induction: Turbocharged with aftercooler

  • Displacement: 5.46 Liters (TAMD61A brochure), 6.73 Liters (TAMD71/72)

  • Cooling system: Freshwater-cooled with seawater heat exchanger; hull-cooled configurations are also covered

  • Main bearing count: 7

  • Reverse gear variants — TAMD61A: MPM IRM 220A; Twin Disc MG506, MG506A, MG5061A, MG5061SC, MG507-1, MG507A-1, MG509.

  • Reverse gear variants — TAMD62A: MPM IRM 220A-1.

  • Reverse gear variants — TAMD63L-A, TAMD63P-A: MPM IRM 220A-1, IRM 220PL-E, IRM 220V-LD; Twin Disc MG5061A, MG5062V. The TAMD63L/P brochure also lists ZF 220A and ZF 220IV.

  • Reverse gear variants — TAMD71A: Twin Disc MG507, MG507A, MG507-1, MG507A-1, MG5061A, MG5061SC, MG509.

  • Reverse gear variants — TAMD71B: MPM IRM 301 A-2; Twin Disc MG507A, MG5061A, MG507-1, MG507A-1.

  • Reverse gear variants — TAMD72A: Twin Disc MG5061SC, MG507A-1; the TAMD72A brochure also gives weight data with MG507A.

  • Reverse gear variants — TAMD72P-A: Twin Disc MG507-1.

  • Reverse gear operating-data variants — TAMD73P-A: MPM IRM 301A-EB, IRM 302V-LD-EB; Twin Disc MG5061A-E, MG5062V-E, MG5075A-E, MG5085A-E, MG5085PL.

  • Reverse gear operating-data variants — TAMD74C-A, TAMD74L-A, TAMD74P-A: MPM IRM 280A2-E, IRM 301A-EB, IRM 302V-LD-EB; Twin Disc MG5062V-E, MG5075A-E, MG5085A-E, MG5085PL.

  • Reverse gear shown — TAMD74A-A, TAMD74A-B: Twin Disc MG5091DC. Reverse gear references identify illustrated equipment, brochure options, or operating-data coverage; they do not indicate internal transmission-overhaul coverage.

  • Wiring serial breaks — TAMD61A, TAMD71A: Separate diagrams up to engine No. 1101021541/xxxx and as from engine No. 1101021542/xxxx.

  • Wiring and fuel shut-off serial breaks — TAMD71B, TAMD72WJ-A: Earlier wiring up to engine No. 207181083/xxxx; revised wiring and fuel shut-off valve coverage as from engine No. 207181084/xxxx.

  • Lubrication serial breaks: Aftercooler by-pass valve introduced as from engine No. xxxx/61082 on TAMD61 and engine No. xxxx/41797 on TAMD71.

  • Fuel-system serial breaks — TAMD63L-A: Injection-pump and injector specifications distinguish engines up to and including No. xxxx/171158 from engines as from No. xxxx/171159.

  • Fuel-system serial breaks — TAMD63P-A: Injector versions distinguish engines up to and including No. xxxx/121444, between Nos. xxxx/121445 and xxxx/183028, and as from No. xxxx/183029. Injection-pump setting specifications also change as from No. xxxx/183029.

  • Thermostat serial break — TAMD63L-A, TAMD63P-A: Late-model thermostats introduced as from engine No. xxxx/51124.

Volvo Manual Features & Selected Content Preview

Publication Pages
Volvo Penta Group 21 Engine Body Workshop Manual — TAMD61A, TAMD62A, TAMD63L-A, TAMD63P-A, TAMD71A, TAMD71B, TAMD72A, TAMD72P-A, TAMD72WJ-A. P/N 7735718-4; August 1996. 88
Group 22 Lubrication System Workshop Manual — the same nine engines listed under Group 21. P/N 7736744-9; September 2001. 32
Group 23 Fuel System Workshop Manual — the same nine engines listed under Group 21. P/N 7738299-2; February 1997. 44
Groups 25/26 Inlet, Exhaust and Cooling Systems Workshop Manual — the same nine engines listed under Group 21. P/N 7738383-4; April 1997. 52
Group 30 Wiring Diagrams — the Group 21 engines, plus TAMD73P-A, TAMD73WJ-A, TAMD74A-A, TAMD74A-B, TAMD74C-A, TAMD74L-A, TAMD74P-A, TAMD74C-B, TAMD74L-B, TAMD74P-B. P/N 7740193-3; November 2000. 52
Group 20 Technical Data — TAMD63L-A, TAMD63P-A, TAMD74A-A, TAMD74A-B, TAMD74C-A, TAMD74L-A, TAMD74P-A, TAMD74C-B, TAMD74L-B, TAMD74P-B, TAMD75P-A. P/N 774 2876-1; November 2003. 36
Instruction Book — TAMD63L-A, TAMD63P-A, TAMD71B, TAMD73P-A, TAMD73WJ-A, TAMD74C-A, TAMD74L-A, TAMD74P-A. P/N 7740156-0; June 2000. 124
Operator’s Manual — TAMD63L/P and TAMD74A; technical data identify TAMD63L-A, TAMD63L-B, TAMD63P-A, TAMD74A-A, TAMD74A-B. P/N 7740714-6; April 2001. 76
TAMD61A product brochure — Ref. No. 7733073-6. 2
TAMD63L/P product brochure — February 2003. 2
TAMD71A product brochure — Ref. No. 7733079-3. 2
TAMD72A Special Light Duty product brochure — Ref. No. 7734895. 2

The system-specific workshop volumes provide the repair procedures, while the operating books cover engine use and routine care. The brochures supply product specifications and equipment information.

Coverage differs by publication. Internal engine-overhaul coverage applies to the nine engines listed under Group 21. The additional TAMD73, TAMD74, and TAMD75 publications do not extend that engine-body overhaul coverage. The supplied Technical Data volume covers TAMD63/74/75 rather than every engine in the repair volumes.

PDF Search, Diagram Detail and Download Contents

Text search and diagram labels: Searchable text is available in the eight manuals and the TAMD63 brochure. Some wiring-diagram labels are embedded in images, and the technical content of the TAMD61A, TAMD71A, and TAMD72A brochures is not text-searchable. No embedded PDF bookmarks are included. Small wire-color codes and connector labels in the wiring diagrams require zooming for comfortable reading.

The ZIP download contains 12 printable English PDFs totaling 512 pages. This total includes 47 cover, blank, and administrative pages within the manuals, plus the eight brochure pages listed above.


Diesel Overhaul and Supporting Systems

These are selected contents, rather than a complete table of contents. Further topics include running-in guidance and preparation for extended storage.

  • Engine assessment and cylinder heads: Compression testing, head removal and pressure testing, valve-guide and seat work, rocker repair, injector-sleeve replacement, and valve-clearance adjustment.

  • Internal engine repair: Step-by-step procedures for pistons, connecting rods, wet liners, timing gears, camshaft bearings, crankshaft bearings, flywheel components, and crankshaft seals.

  • Fuel system: Injection-pump removal and timing adjustment, feed-pump overhaul, delivery-pressure checks, injector testing, shut-off valve troubleshooting, and fuel-system bleeding.

  • Lubrication system: Oil-pressure testing, sump-gasket replacement, oil-pump overhaul, and oil-cooler removal, cleaning, and leakage testing.

  • Boost and cooling: Turbocharger replacement, boost and exhaust-backpressure checks, heat-exchanger and aftercooler service, coolant-pump overhaul, seawater-pump repair, and thermostat testing.

  • Electrical circuits: Engine wiring, main and flying-bridge instrumentation, EDC controls, installation layouts, and waterjet control and reversing-bucket diagrams.

  • Operation and maintenance: Starting and maneuvering, maintenance schedules, engine and reverse-gear care, fault tracing, and model-specific EDC control calibration.

The workshop volumes are written primarily for Volvo Penta service workshops and qualified personnel with marine mechanical and electrical knowledge; the operating books also describe routine owner maintenance and identify work requiring specialist service.

Engine Construction, Overhaul and Tooling

Model differences: The engine-body volume distinguishes piston profiles, liners and rings, valve seats, oil coolers, turbocharger and wastegate arrangements, seawater-pump drives, injection hardware, and electronic controls. These comparisons help match components and procedures to the engine version before repair work begins.

Liners and rotating components: Coverage includes wrist-pin bushings, piston-ring inspection, liner measurement and honing, liner-seat renovation, timing alignment, polygon-hub service, valve-lifter inspection, and camshaft-bearing replacement. Crankshaft work addresses crack checking, straightening and grinding requirements, bearing-shell replacement, flywheel and ring-gear service, and runout checks.

The ring descriptions distinguish early and later TAMD71 builds, the TAMD71B Keystone-ring arrangement, and TAMD72 top-ring differences. Color-coded cylinder-liner O-rings and earlier seal-kit configurations are also identified.

Tools and workshop data: General and procedure-specific tightening information includes torque-and-angle data, sealants, locking compounds, liner-height checks, bearing guidance, and wear criteria. Listed equipment includes 9996662 pressure-test equipment, 9996645 liner extractor, 9996772 camshaft wear-check tool, 9998079 camshaft handling tool, and 9996437 rear crankshaft-seal installer.

Illustrations include Cylinder Head Sealing, Piston Ring Profiles, Timing Gear, Crankshaft with Connecting Rods and Pistons, Torsional Damper, and model-specific component-location views.

Machining and timing cautions: The manual requires replacement of a damaged TAMD63 cylinder head rather than resurfacing, and prohibits planing TAMD63/TAMD72 block faces because reduced clearances can bring pistons, valves, and injector nozzles too close together.

It also warns of piston-to-valve contact when shafts are turned with the timing gears removed and heads installed, and prohibits running nitrocarburized gears against quenched-and-tempered gears.

Fuel, Lubrication and Cooling Repair

The fuel volume distinguishes conventional pump-timing methods from stroke-position-sensor adjustment and separates regulator configurations. Injector coverage includes nozzle inspection, opening-pressure adjustment, leakage checks, and spray-pattern assessment.

Injection-pump bench inspection requires trained personnel and suitable test equipment. TAMD72P-A speed settings are referred to the separate Fuel System EDC manual, which is outside this collection.

The cooling volume distinguishes heat-exchanger and hull-cooled installations. It describes aftercooler proof testing, insert cleaning and sealing, reverse-gear oil-cooler cleaning, zinc-anode inspection, and separate pump procedures for TAMD63 and the other covered engines.

Electrical Layouts and Operating Guidance

The wiring volume includes instrument-panel block diagrams, main-control-position wiring, flying-bridge circuits, EDC single- and twin-engine arrangements, and waterjet controls. Cable-color legends and component schedules support circuit tracing, with serial-specific diagrams for relevant earlier and later engines.

The operating books add maintenance schedules, EDC fault-code guidance, battery and charging-system care, and reverse-gear operating data. These transmission references support identification and maintenance rather than internal gearbox overhaul. The Operator’s Manual refers waterjet control and operation to the separate waterjet operating manual.

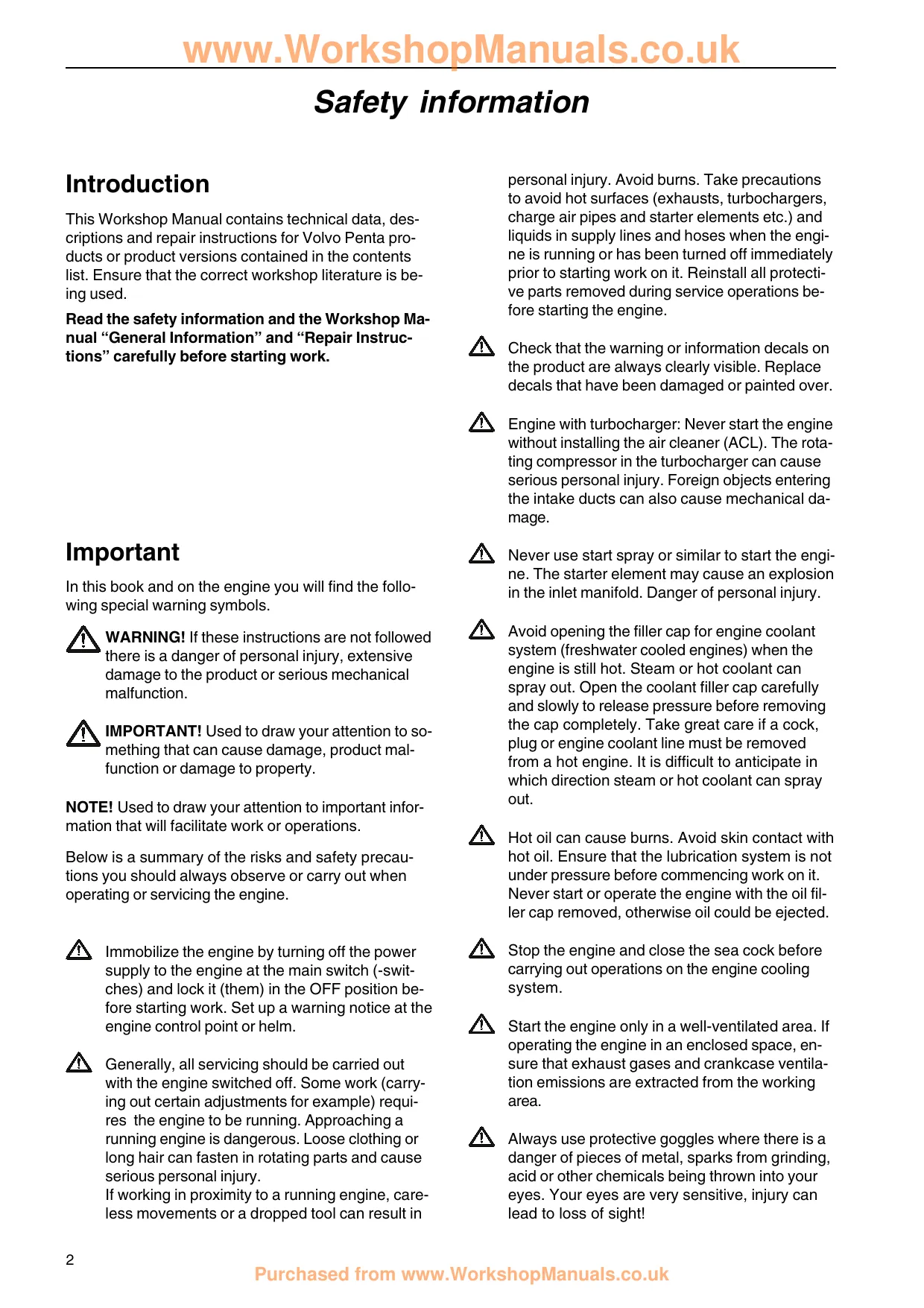

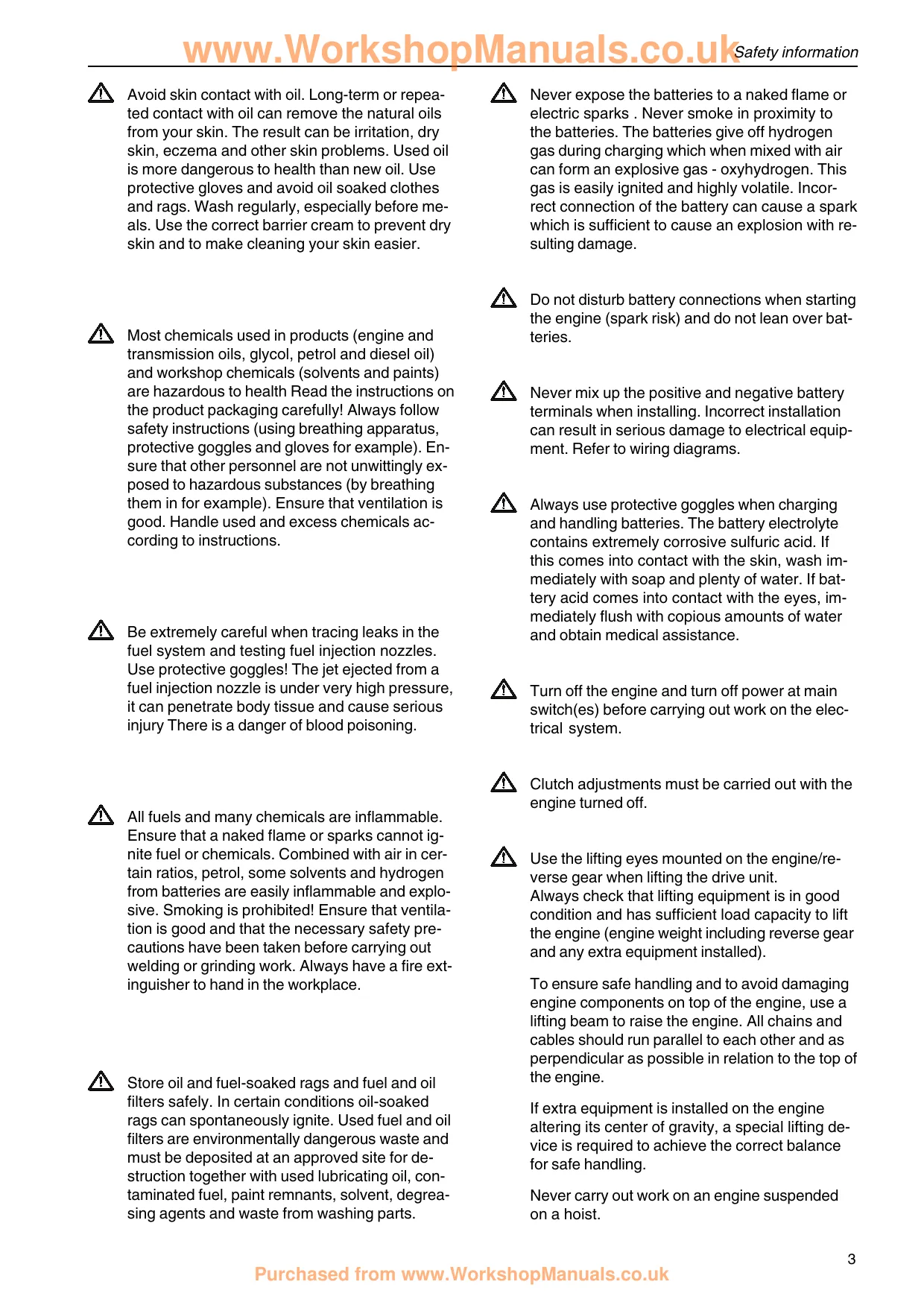

Safety coverage addresses engine isolation, lifting, closed seacocks, hot fluids, rotating components, and special handling of heat-damaged fluorocarbon seals.

Selected Oil-Pump Inspection Clearances

For the engines covered by the Lubrication System volume, the oil-pump overhaul instructions specify gear end float of 0.07–0.15 mm and gear flank clearance of 0.15–0.30 mm. These inspection dimensions accompany the illustrated pump disassembly, bushing replacement, and reassembly procedures.
