Kymco Grand Dink 250 2004–2005 Service & Repair Manual
220 Pages • ZIP Download: 20 Printable PDFs (English)

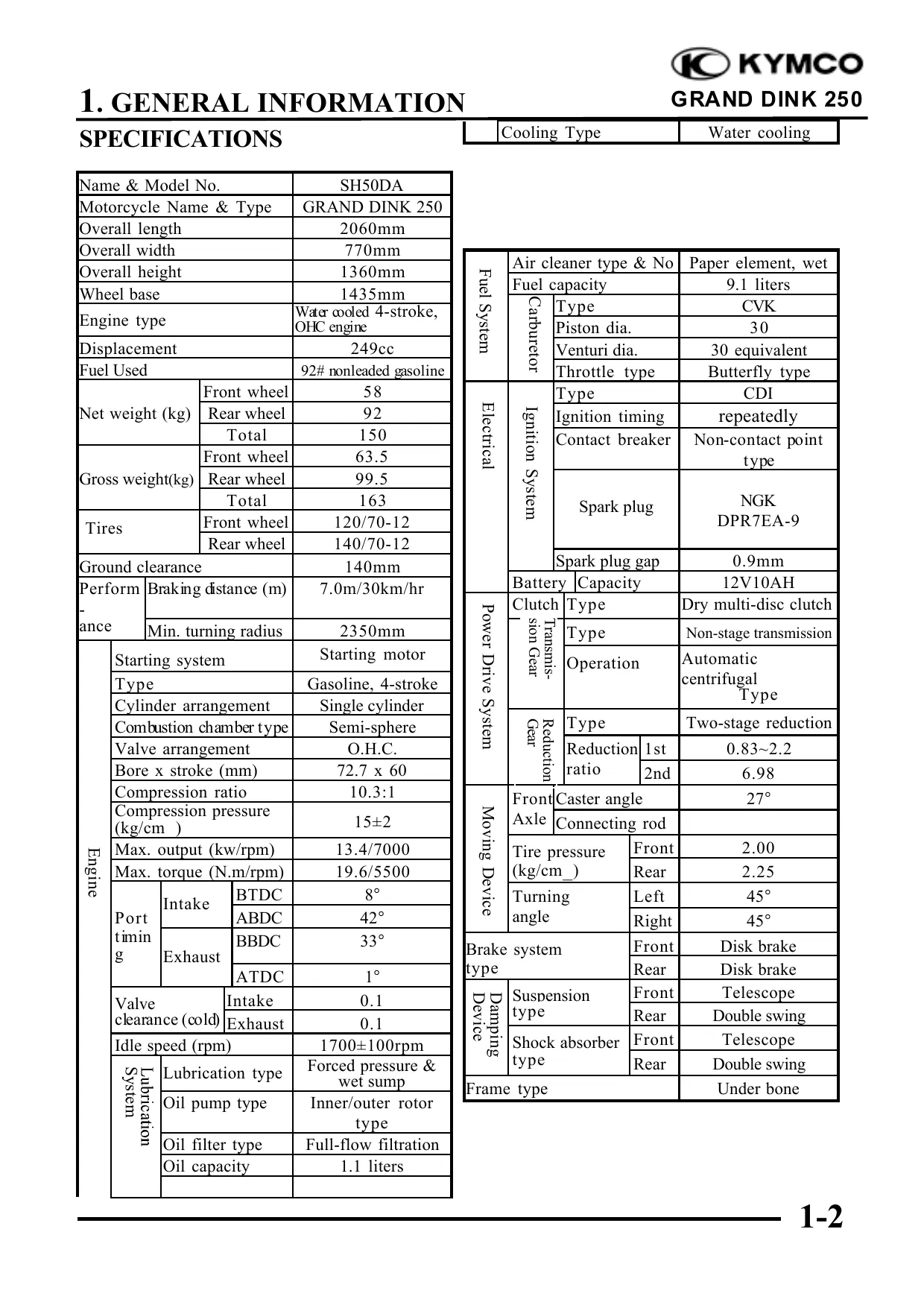

Kymco Models Covered & Key Technical Specifications
Model & Model Code: Grand Dink 250 (SH50DA)
-
Engine displacement: 249 cc
-
Engine type: Water cooled 4-stroke, OHC single cylinder
-
Transmission: Automatic continuously variable transmission (CVT), dry centrifugal clutch
-
Ignition: CDI system
-
Front brake: Disk brake
-
Rear brake: Disk brake
-
Fuel system: Carburetor (CVK30)
-
Tire size (Front/Rear): 120/70-12 / 140/70-12

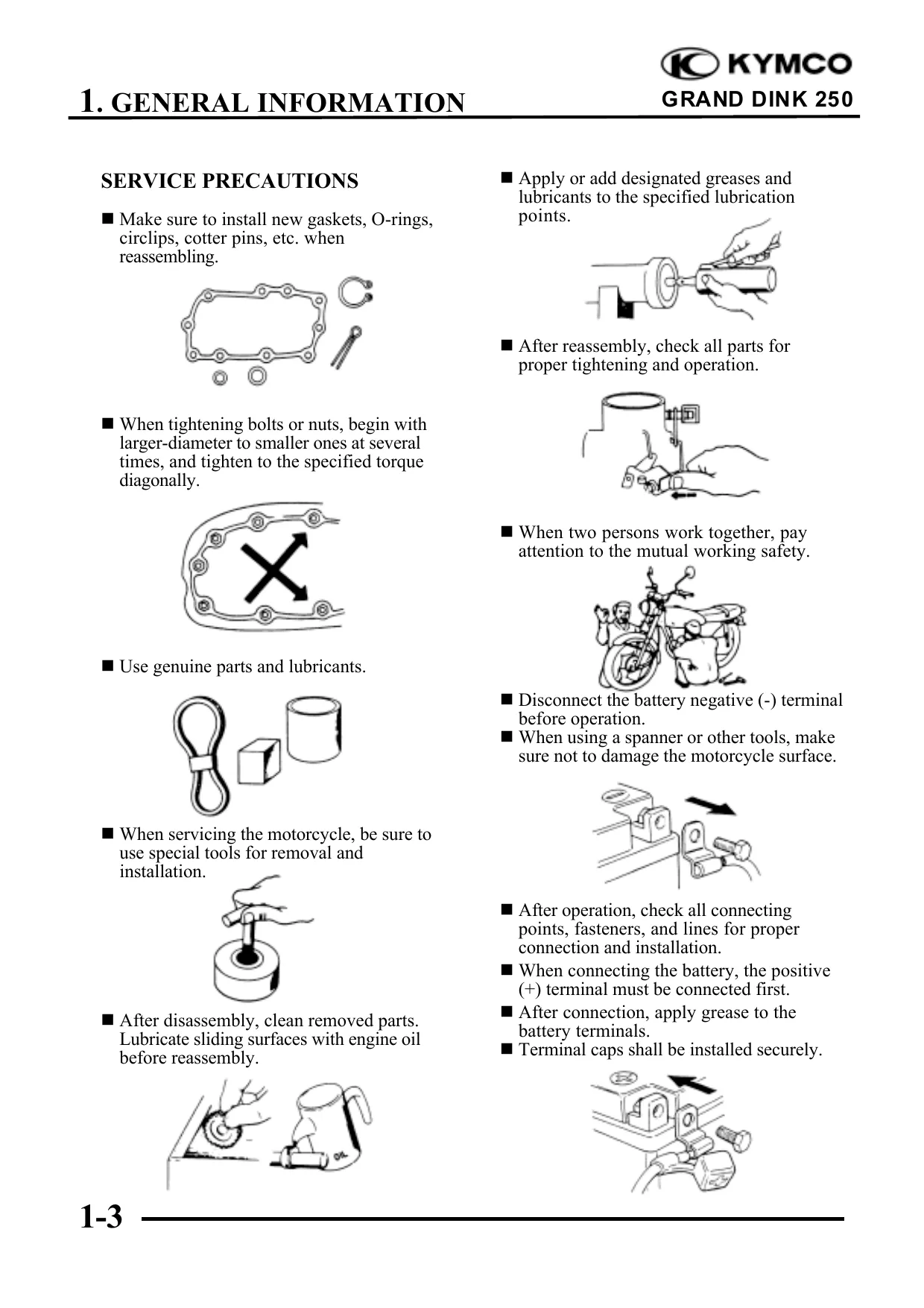

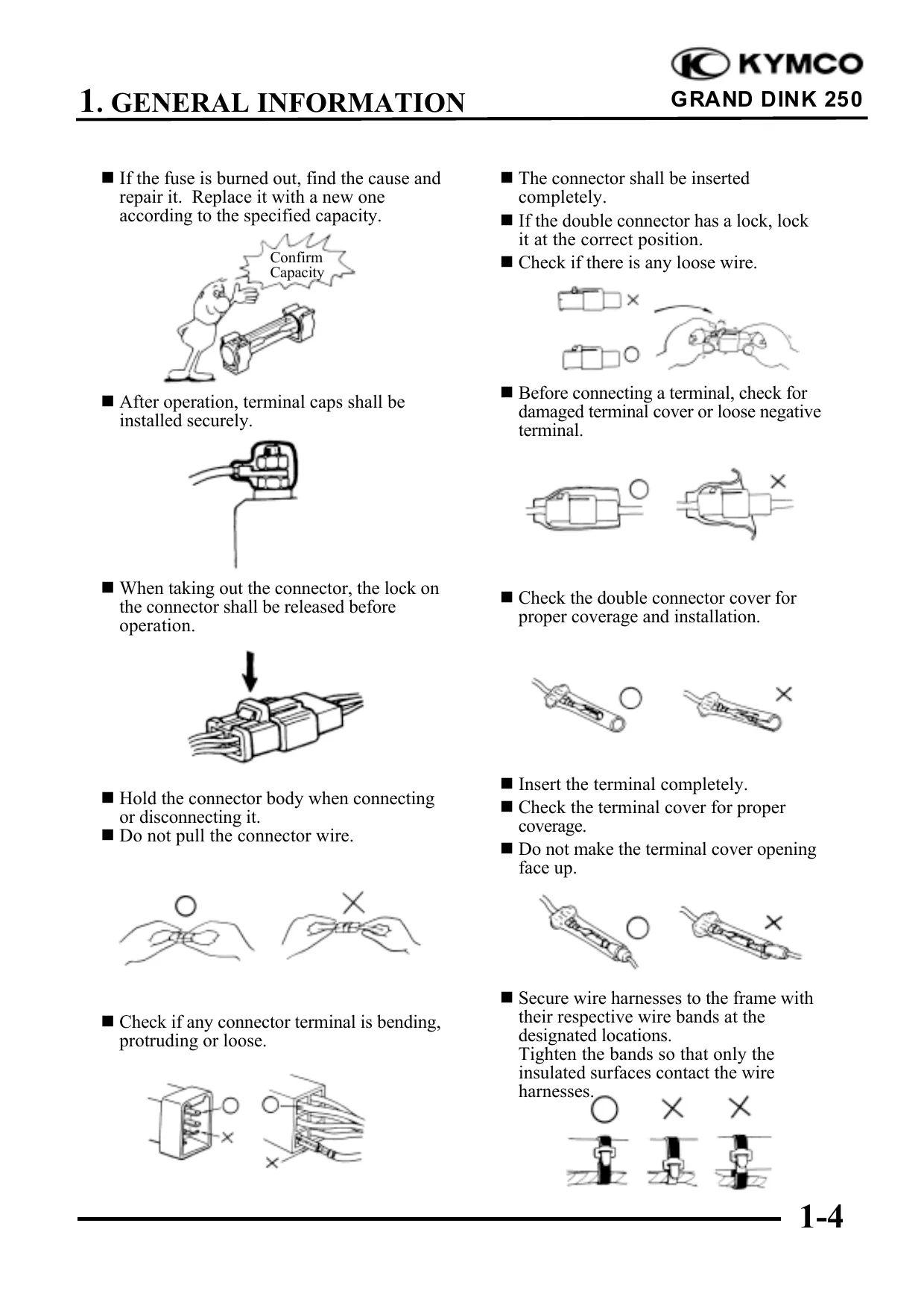

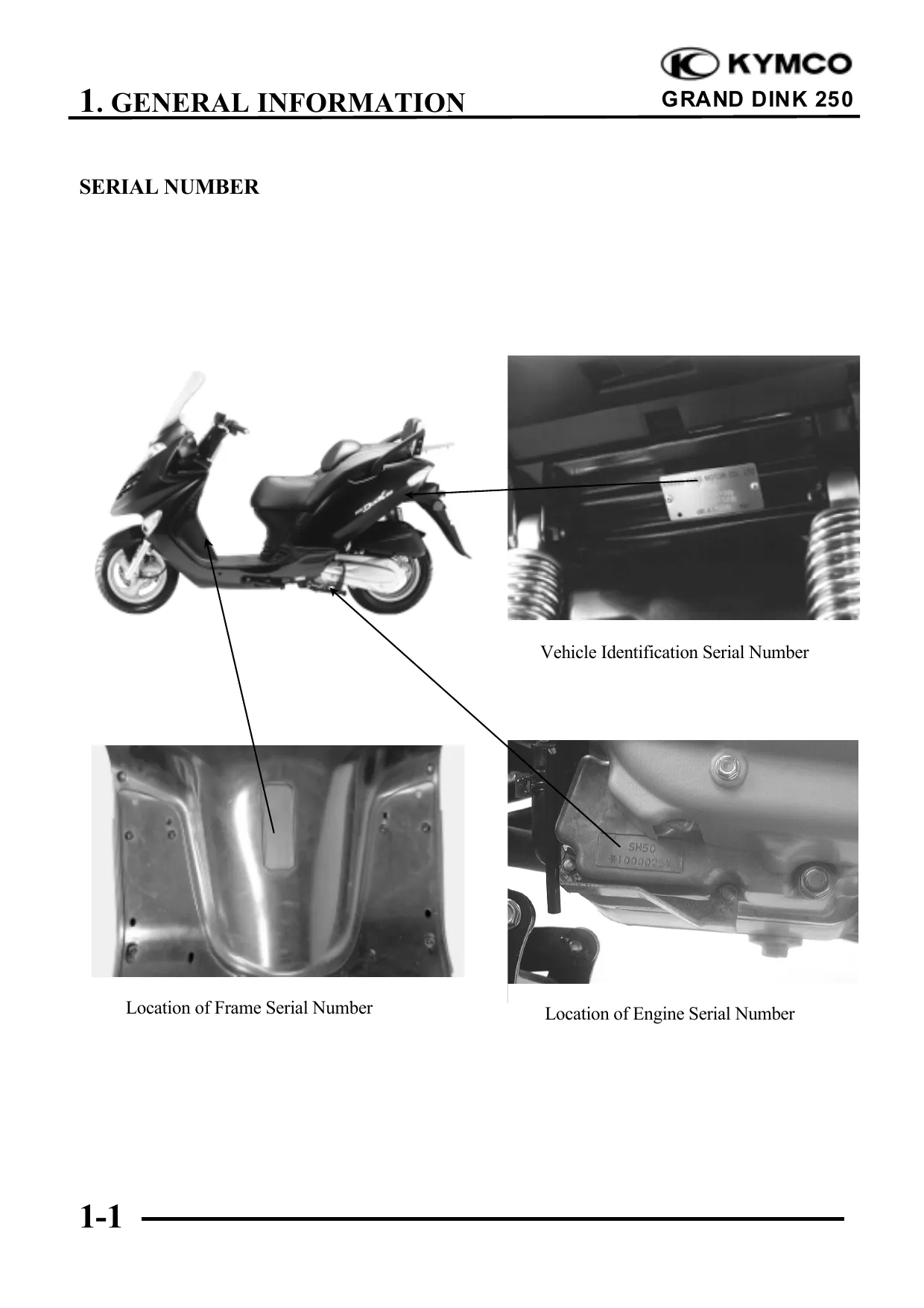

Kymco Manual Features & Selected Content Preview
This factory service manual from Kwang Yang Motor Co., Ltd., Overseas Sales Department / Overseas Service Section covers the Kymco Grand Dink 250, model SH50DA.
Chapter PDFs, Text Search and Wiring Detail
Search and diagram detail: Procedure text is searchable, but lettering within embedded wiring diagrams is not. None of the files has PDF bookmarks. Small labels in the main wiring diagram remain partly blurred even when enlarged; heater-diagram labels are easier to read with zoom.
The ZIP download contains 20 printable English PDFs: one preface/contents file and 19 chapter files. The 220-page total already includes the one-page preface and table of contents.
Engine, CVT and Chassis Repair with Electrical Diagnosis
The following selected coverage highlights the repair content. Other topics include headlight aiming and fuel-cap and seat-cable checks.
-
Engine repair: Engine removal and installation, cylinder-head and valve disassembly, camshaft timing, cylinder and piston inspection, crankcase separation, and crankshaft checks.
-
CVT and final reduction: Drive and driven pulley service, centrifugal clutch repair, drive-belt inspection, and final-drive disassembly, bearing and oil-seal replacement, and reassembly.
-
Fuel system: CVK carburetor service, auto-bystarter testing, air cut-off valve and vacuum fuel-pump inspection, and fuel-tank and strainer removal.
-
Cooling system: Radiator removal, cap and system pressure testing, thermostat and thermosensor checks, fan-circuit diagnosis, and water-pump mechanical-seal replacement.
-
Brakes and chassis: Steering, wheel, fork and shock-absorber service, hydraulic disc-brake master-cylinder and caliper disassembly, brake bleeding, and rear spring-preload adjustment.
-
Electrical diagnosis: Main and heater wiring diagrams, cable and harness routing views, charging, ignition and starting circuit layouts, symptom-based fault charts, and electrical test specifications.
-
Service references: Section-specific torque tables, capacities, specified lubricants, standard dimensions, service limits, wear and runout checks, maintenance intervals, and factory special-tool references.
Suited to professional technicians and experienced DIY mechanics familiar with engine, brake, fuel, and electrical repair who can use the specified pullers, compressors, bearing drivers, pressure testers, and meters.
Engine Inspection and Repair Planning
Valve and guide measurements, camshaft and rocker-arm checks, piston-ring clearances, cylinder-bore measurements, and crankshaft bearing-play and runout limits support assessment of worn components. The Lubrication System diagram accompanies oil-pump removal and rotor-clearance inspection.
The cylinder head and cylinder can be serviced with the engine in the frame; crankcase separation and water-pump service require engine removal. This distinction helps with planning bench space, lifting support, and the depth of a repair.
Variator, Clutch and Final-Drive Detail
The variator material includes weight-roller and collar measurements. Step-by-step procedures distinguish driven-pulley needle-bearing and outer-bearing replacement, clutch-shoe installation, and reassembly under spring load.
Final-reduction coverage identifies the drive shaft, countershaft, final gear, bearings, and seals. Separate starter-clutch procedures address the driven gear, idle gear, rollers, plungers, and springs.
Carburetor and Vacuum Fuel-Pump Service
Carburetor-jet operation and the Fuel Pump Construction view explain the circuits being tested. Vacuum- and float-chamber disassembly, jet and passage cleaning, accelerator-pump diaphragm inspection, float-level checks, and fuel-pump output testing support rough-idle and fuel-delivery diagnosis.
Cooling-System Testing and Pump Seals
The cooling-system schematic and coolant-mixture tables accompany water-pump shaft, bearing, mechanical-seal, and seal-washer service.
The impeller uses a left-hand thread. Treating it like a conventional fastener risks damage to the impeller or shaft.
Steering, Suspension and Hydraulic Brakes
Body-panel and exhaust removal instructions provide access for service work. Chassis detail includes steering-head races, front wheel bearings, rear fork inspection, twin rear-shock removal, front shock-absorber disassembly, and brake piston, seal, pad, and disc checks.
At the front wheel, incorrect alignment of the speedometer-drive retaining pawl can deform it when the axle is tightened.
Fuel, hot coolant, brake fluid, and spring-loaded clutch work require proper support, ventilation, protective equipment, and the correct holding or compression tools.
Charging, Ignition and Starting Faults
Test sections cover the battery, A.C. generator, regulator/rectifier, ignition coil, pulser and exciter coils, and CDI unit. Starter-motor teardown includes brush, commutator, and continuity checks, alongside starter-relay testing.
Additional tables cover handlebar switches, horn, fuel sender and display, cooling-fan switch, temperature meter, instruments, lights, throttle-position sensor, heater controller, and mirror controller.
Symptom charts address hard starting, low power, engine noise, drive and clutch faults, no-spark conditions, charging failures, gauge faults, steering pull, suspension problems, and poor braking. CDI resistance checks require the specified tester; an unsuitable meter or range can give false readings.
Factory Special-Tool References
Tool callouts include the E003 flywheel puller, E021 flywheel holder, E027 clutch tools, E014 mechanical-seal and bearing drivers, F004 rear-shock compressor, and F005 steering-head bearing remover.
A Preview of Valve Settings and CVT Wear Limits
Valve-clearance specifications give 0.1 mm for both intake and exhaust with the engine cold, below 35°C.
CVT inspection data call for drive-belt replacement below 22.0 mm width and clutch-shoe replacement below 2.0 mm lining thickness.
