1999–2005 Yamaha Bear Tracker YFM250XL(C), YFM250XN, YFM250XP & Bruin YFM250BT ATV Service Manual Set (P/N LIT-11616-12-01)

This 1999–2005 Yamaha Bear Tracker and Bruin ATV service manual set combines the YFM250XL(C) base manual, P/N LIT-11616-12-01, with the YFM250XN, YFM250XP and YFM250BT supplements. The supplements update selected systems and refer back to the base manual for shared service procedures.

• Engine repair: Engine removal, crankcase separation, cylinder-head and piston inspection, valve service, cam timing, and primary and secondary clutch repair.

• Fuel system: Mikuni carburetor disassembly, jet and diaphragm inspection, float-height and fuel-level adjustment, plus Bruin carburetor and starter-cable changes.

• Drivetrain: Transmission and shifter inspection, middle-gear shim selection, final-drive pinion and ring-gear setup, and universal-joint service.

• Brakes and chassis: Drum-brake service, hydraulic front-brake caliper and master-cylinder repair, rear-axle work, steering, suspension, and toe-in adjustment.

• Electrical diagnosis: CDI ignition, starter-interlock and charging tests, starter-motor overhaul, lighting and signal-system checks, and model-specific wiring diagrams.

• Maintenance references: Inspection schedules, lubrication diagrams, cable routing, torque tables, fluid capacities, wear limits, and component-specific test data.

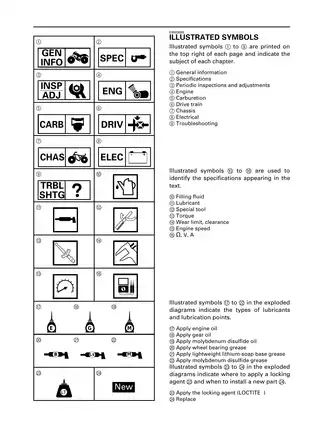

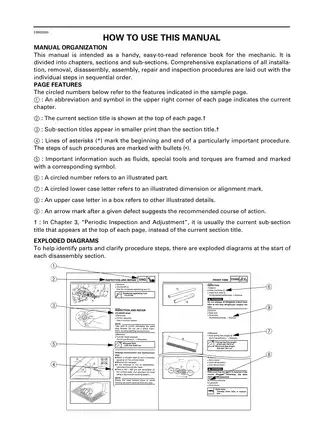

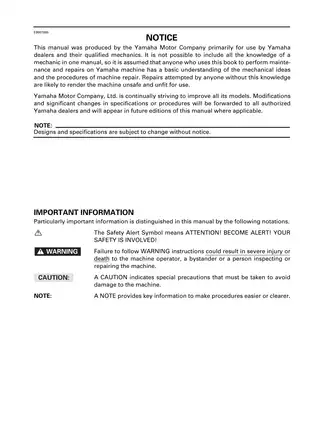

Yamaha wrote these manuals primarily for its dealers and qualified mechanics, assuming a working knowledge of mechanical principles and machine repair.

Engine Overhaul and Carburetor Service

The engine chapter distinguishes components that can be serviced with the engine installed from work requiring engine removal. Valve-seat refacing drawings, piston inspection limits and cam-sprocket timing references support internal repair, while the oil-pump section covers rotor inspection and assembly.

Carburetor procedures address piston-valve movement, jet-needle components, the coasting-enricher diaphragm, and needle-valve and valve-seat inspection. The Bruin supplement provides its own carburetor breakdown, jetting data and starter-cable adjustment.

Fluid tables distinguish periodic oil changes from total fill quantities and specify SAE 80 API GL-4 hypoid oil for the final drive. Before engine removal, verify the ATV is securely supported and follow the manual’s battery-disconnection precautions.

Middle-Gear and Final-Drive Setup

Middle-gear shim charts link the required adjustments to the parts being replaced, including the crankcase, bearing housing and driven shaft. Final-drive coverage adds pinion and ring-gear shim calculations, thrust-washer selection and gear-lash measurement views. These references help identify which setup checks follow a component replacement.

The gear-lash procedures identify measurement tool YM-01231 and dial gauge YM-03097. Universal-joint service includes bearing removal, inspection and reassembly.

The middle-gear instructions identify the reverse-gear retaining nut’s left-hand threads. Final-drive troubleshooting warns that too little gear lash can damage the gear teeth.

Brake, Steering and Suspension Service

The base manual covers front drum brakes. The XN supplement supplies hydraulic front-brake pad replacement, caliper and master-cylinder repair, and bleeding procedures; the XP supplement adds front-brake and brake-light-switch updates.

Chassis procedures extend to wheel bearings, steering knuckles, tie rods, shock absorbers and swingarm bearings. The Bruin sections add rear-brake and steering-stem details, along with select-lever control-cable and shift-rod adjustment.

Ignition, Starting and Circuit Diagnosis

Ignition System and Electric Starting System circuit diagrams accompany component tests and fault-finding charts. The base manual covers the CDI magneto, while the XN supplement updates the DC-CDI ignition and starting circuits.

The starting-circuit explanations show how the neutral switch, rear-brake switch and cut-off relay affect starter operation. Separate charging, lighting and signal-system checks provide connector references and test specifications, with individual wiring diagrams for the XL, XN, XP and BT configurations.

Selected Engine and Electrical Specification Changes

For cylinder-head inspection, the YFM250XL(C) manual lists a 0.10 mm warp limit; the YFM250XP supplement revises it to 0.03 mm. The base manual also gives a standard cylinder bore of 70.97–71.02 mm, measured 40 mm below the cylinder top.

The base manual specifies 14.1–14.9 V as the rectifier/regulator’s no-load regulated voltage. Main-fuse specifications differ between publications: 30 A in the base manual and 20 A in the XN supplement.

Text Search, Diagram Access and Publication Breakdown

Search and navigation: Service-section text is searchable; the XL and BT covers have no searchable text. Embedded bookmarks cover the main chapters and supplements, but the Bruin wiring-diagram bookmark opens the first page; the diagram itself is at PDF p. 439. Small wiring and connector labels need zooming for comfortable reading.

The set is supplied as one printable, 439-page PDF containing these four publications:

These totals include the four front covers, two publisher imprint pages and seven largely blank section pages.
