2005 Yamaha YZ85 / YZ85LW Owner's Service Manual PDF (P/N 5PA-28199-84)

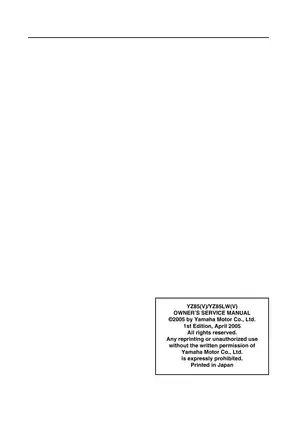

Yamaha’s Owner’s Service Manual covers the YZ85(V) and YZ85LW(V) competition models, including the standard and Large Wheel configurations. This is cover number 5PA-28199-84, first edition, April 2005, with operation, maintenance, repair, and race-tuning information.

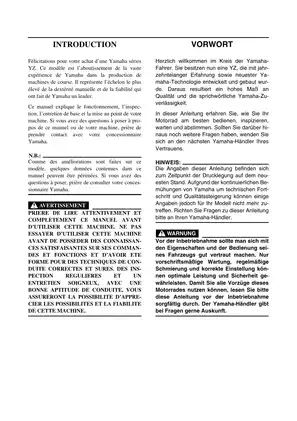

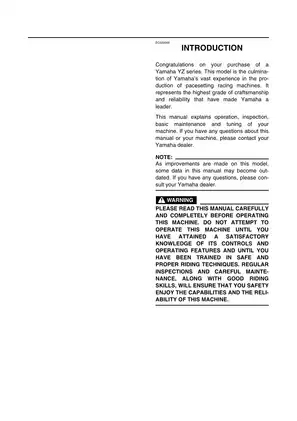

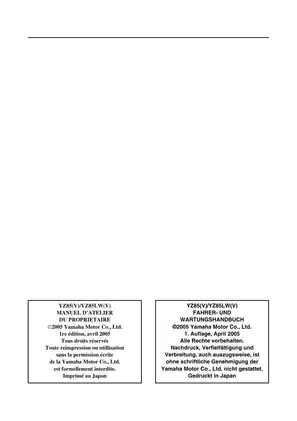

Trilingual PDF with Section Bookmarks

Text search and diagram detail: The manual text is searchable; labels embedded in diagram images are not. Section bookmarks are organized by English, French, and German, although some chapter entries open the contents pages. Small wiring and connector labels are readable when enlarged.

One printable, 508-page PDF contains all three languages, including the covers and introductory material, three memo pages, and two blank pages.

Engine Overhaul, Chassis Service and Race Tuning

These selected topics are supplemented by silencer fiber replacement and cleaning and storage guidance.

• Engine and transmission: Step-by-step top-end rebuilds, engine removal, crankcase separation, crankshaft inspection, clutch friction plate replacement, and gear and shift-fork service.

• Carburetor and cooling: Keihin PWK28 disassembly, reed-valve inspection, float-height adjustment, radiator removal, cooling-system pressure checks, and water-pump servicing.

• Suspension and steering: Front fork overhaul and oil-seal replacement, steering-bearing service, swingarm disassembly, and link-type Monocross rear-suspension inspection and adjustment.

• Brakes and wheels: Front and rear caliper and master-cylinder service, brake-system air bleeding, pad replacement, wheel-bearing replacement, and disc inspection.

• Ignition diagnosis: Wiring diagrams, a no-spark inspection flowchart, engine-stop-switch checks, ignition-coil tests, and CDI magneto pickup- and charging-coil checks.

• Maintenance and tuning: Race-based maintenance charts, torque-check points, component-specific torque tables, carburetor setting charts, sprocket selection, and suspension troubleshooting.

The repair sections suit mechanics with inspection equipment and special tools; Yamaha recommends dealer maintenance for the front fork.

Engine Repair and Component Matching

Factory procedures are organized into seven chapters, with exploded diagrams and job instruction charts identifying the parts involved in removal and disassembly. Inspection specifications and fault/action notes provide a workshop reference for assessing wear and planning reassembly.

The cylinder-and-piston matching chart pairs cylinder marks A, B, C, and D with red, orange, green, and purple piston marks. It supports replacement-piston selection alongside the bore and piston measurements.

Crankcase and transmission: Internal coverage extends to crankshaft bearings, gear engagement dogs, shift-fork grooves, guide bars, and final operating checks. The crankcase section warns about shift-cam segment interference and forcing unevenly separating case halves, which can damage the case. It identifies crankcase separating tool YU-1135-A / 90890-01135.

Fuel-System Service and Cooling Checks

Carburetor coverage goes beyond jet specifications to cleaning, needle-valve inspection, throttle-valve movement, and reassembly. The tuning chapter relates mixture behavior to throttle opening, atmospheric conditions, and spark-plug appearance, with symptom-based setting examples.

Water-pump instructions cover the impeller shaft, bearing, and oil seals. The manual links pump inspection to symptoms such as coolant discoloration or milky transmission oil, providing a specific starting point when evaluating possible coolant contamination.

Fork, Brake and Rear-Suspension Work

The Front Fork Disassembly exploded view accompanies seal, bushing, damper-rod, and base-valve procedures. Fork seal driver YM-01442 / 90890-01442 is identified. An assembly caution explains how a falling damper rod can damage the internal valve.

Rear-shock scope: Coverage includes removal, spring replacement, preload adjustment, and damping settings. Yamaha expressly warns against disassembling the nitrogen-filled cylinder or reservoir; this section does not provide an internal damper rebuild procedure.

Brake coverage includes piston and seal inspection, master-cylinder assembly, hose routing, and post-assembly leak checks. Motorcycle maintenance involves inherent risks to personal safety and vehicle integrity. Always review the factory safety procedures and use the correct shop tools before starting any mechanical work.

Ignition Fault Tracing and Supporting Diagrams

The Electrical Components and Wiring Diagram shows the ignition circuit and wire-color codes. The Ignition System inspection flowchart links no-spark symptoms to individual component checks, while tester-connection illustrations accompany the resistance specifications.

Cable Routing Diagrams show harness, control-cable, and hose placement. Exploded assembly drawings, job instruction charts, and circlip-orientation sectional views support the mechanical procedures.

Examples of Fluid Capacities and Top-End Service Data

For both configurations, the periodic transmission-oil change quantity is 0.50 L, and cooling-system capacity, including all routes, is 0.54 L.

The top-end inspection data specify a standard piston-to-cylinder clearance of 0.040–0.045 mm. The cylinder-head assembly section lists 30 Nm for the nuts, together with staged tightening in a crisscross pattern.
