2002 Honda CR-V ES, LX, EX, and RV-Si Shop Manual (P/N 62S9A00)
1,976 Pages • ZIP Download: 28 Printable PDFs • 76.91 MB
Honda Models Covered & Key Technical Specifications
Model & Model Codes: CR-V (RD5: K20A4/K20A5; RD6: K24A1, 2WD; RD7: K24A1; RD8: K20A4)
Sub-models / Variants: 4-door Stationwagon, 2WD, 4WD, Manual Transmission (Z2M1: K20A4/K20A5; Z2M3: K24A1), Automatic Transmission (MCVA: 2WD/K24A1; MRVA: 4WD/K20A4, K20A5, K24A1), ES, LS, BASE, LX, RV-i, RV-iH, SES, EX, RV-Si, RV-SiH, SE
Model Years: 2002
Serial Numbers: VIN start numbers by applicable area code and grade:
KE — SE (5MT: SHSRD87402U000001-; 4AT: SHSRD88402U000001-), SES (5MT: SHSRD87502U000001-; 4AT: SHSRD88502U000001-).
KG — LS (5MT: SHSRD87602U000001-; 4AT: SHSRD88602U000001-), ES (5MT: SHSRD87702U000001-; 4AT: SHSRD88702U000001-).
KR — LS (5MT: SHSRD87202U000001-; 4AT: SHSRD88202U000001-), ES (5MT: SHSRD87302U000001-; 4AT: SHSRD88302U000001-).
KS — ES (5MT: SHSRD87102U000001-; 4AT: SHSRD88202U000001-).
KQ — RV-i (5MT: JHLRD77402C200001-; 4AT: JHLRD78402C200001-), RV-Si (5MT: JHLRD77802C200001-; 4AT: JHLRD78802C200001-).
KH — BASE (5MT: JHLRD57402C200001-; 4AT: JHLRD58402C200001-).
KK — LX 4WD (5MT: JHLRD77402C200001-; 4AT: JHLRD78402C200001-), EX 4WD (5MT: JHLRD77802C200001-; 4AT: JHLRD78802C200001-), LX 2WD (4AT: JHLRD68402C200001-).
KM — RV-Si (5MT: JHLRD77802C200001-; 4AT: JHLRD78802C200001-).
KN — RV-i (5MT: JHLRD57402C200001-; 4AT: JHLRD58402C200001-), RV-Si (5MT: JHLRD57802C200001-; 4AT: JHLRD58802C200001-).
KP — RV-i (5MT: JHLRD57402C200001-; 4AT: JHLRD58402C200001-), RV-Si (5MT: JHLRD57802C200001-; 4AT: JHLRD58802C200001-).
KT, KW — BASE (5MT: JHLRD57402C200001-; 4AT: JHLRD58402C200001-).
KU — RV-i (4AT: JHLRD58402C200001-), RV-iH (4AT: JHLRD58502C200001-), RV-Si (4AT: JHLRD58802C200001-), RV-SiH (4AT: JHLRD58902C200001-).
KY — RV-i (5MT: JHLRD5742C400001-, JHLRD5752C400001-; 4AT: JHLRD5842C400001-, JHLRD5852C400001-), RV-Si (5MT: JHLRD5782C400001-, JHLRD5792C400001-; 4AT: JHLRD5882C400001-, JHLRD5892C400001-).
Engine Serial Numbers: K20A4-1000001- (KE, KG, KR, KS); K20A4-1900001- (KH, KN, KU, KY); K20A5-1000001- (KP, KT, KW); K24A1-1400001- (KQ); K24A1-1900001- (KK, KM).
Transmission Serial Numbers: Z2M1-1500001- (KE, KG, KR, KS manual variants); Z2M1-1000001- (KH, KN, KP, KT, KW, KY manual variants); Z2M3-1000001- (KQ, KK, KM manual variants); MRVA-1000001- (listed 4WD automatic variants); MCVA-1000001- (KK LX 2WD automatic).
-
Engine Displacement: 1,998 cc (K20A4, K20A5) and 2,354 cc (K24A1)
-
Engine Configuration: 4-cylinder, DOHC VTEC
-
Transmission Types: 5-speed manual, 4-speed automatic
-
Electrical System: 12 V nominal
-
Starter Power: 1.0 kW, 1.1 kW, 1.2 kW, 1.6 kW variants
-
Alternator Output: 90 A
-
Cooling System Capacity: 5.3 L to 7.2 L depending on model and engine
Honda Manual Features & Selected Content Preview
Honda Motor Co., Ltd.’s 2002 CR-V Shop Manual (P/N 62S9A00), First Edition 11/2001, covers global-market CR-V applications identified by RD5, RD6, RD7, and RD8 codes. Coverage includes left- and right-hand drive, 2WD and 4WD, and K20A4, K20A5, and K24A1 engines.
PDF Search, Wiring Detail and File Contents
Text search and schematic detail: Procedural text is searchable, but search does not reliably find all headings or diagram labels. Wiring labels in Group 78 are not searchable. None of the PDFs has embedded bookmarks. Small wiring labels require zooming.
The ZIP contains 28 printable PDFs totaling 1,976 pages: 1,818 pages in Groups 00–23, 48 in Group 77, and 110 in Group 78. The total includes 20 blank section-end pages. Two TXT files are also supplied.
Engine Overhaul, Drivetrain Repair and Circuit Diagnosis
The following highlights show selected coverage, rather than a complete contents list. Other topics include intake and exhaust manifold replacement and navigation-system picture diagnosis.
-
Engine repair: Step-by-step procedures for engine removal and installation, compression testing, VTEC rocker-arm checks, VTC actuator inspection, cam-chain service, and internal engine repair.
-
Fuel and cooling systems: PGM-FI and VTEC/VTC fault diagnosis, fuel-pressure testing, injector service, EVAP checks, radiator testing, thermostat inspection, and water-pump replacement.
-
Manual transmission and driveline: Clutch hydraulics and clutch replacement, transmission removal and teardown, differential and transfer overhaul, rear dual-pump differential testing, and axle service.
-
Automatic transmission: DTC diagnosis, road and stall-speed tests, hydraulic-pressure checks, valve-body repair, clutch-pack inspection, shaft service, and transmission removal and installation.
-
Steering and suspension: Power-steering pressure and leakage checks, pump and steering-gear overhaul, wheel alignment, hub and bearing service, and damper/spring replacement.
-
Brakes and ABS: Brake bleeding, caliper and master-cylinder overhaul, booster checks, ABS circuit diagnosis, modulator replacement, and wheel-sensor testing.
-
Electrical and climate systems: Starting, charging, ignition, cruise control, multiplex, immobilizer, security, lighting, power accessories, HVAC, navigation, and SRS troubleshooting with system-specific diagrams.

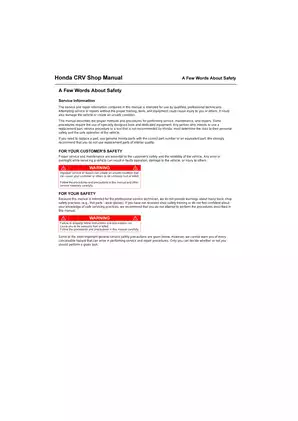

Honda wrote this manual for qualified professional technicians with the training, tools, and equipment needed for the documented service and repair work.
Market Applications and Maintenance
The application tables distinguish Japanese- and UK-built vehicles, engine and transmission start numbers, and market grades. These include BASE, ES, LS, LX, EX, SE/SES, RV-i/RV-iH, and RV-Si/RV-SiH.
Z2M1 and Z2M3 manual-transmission applications are identified separately, as are the MCVA 2WD and MRVA 4WD automatics. Maintenance schedules distinguish European models, Australia/New Zealand models, and other markets. Those distinctions matter when choosing repair procedures, electrical diagrams, and test specifications.
Cylinder Head and Engine Block Work
Cylinder-head coverage extends to valve-clearance adjustment, VTC actuator and exhaust camshaft-sprocket replacement, warpage inspection, valve-guide replacement, valve-seat reconditioning, and the factory head-bolt tightening sequence.
The block section adds bearing selection and replacement, crankshaft and piston inspection, cylinder honing, piston-ring service, and final assembly checks. Lubrication coverage includes oil-pressure diagnosis and oil-pump overhaul.
Transmission Internals and 4WD Tests
Manual-transmission inspection includes mainshaft and countershaft measurements, synchronizer and shift-fork checks, thrust-clearance adjustment, differential setup, and transfer bearing work.
The automatic-transmission section connects PCM input/output information and hydraulic-control descriptions with DTC and symptom indexes. Internal repair includes clutch-clearance inspection, shaft assembly work, differential bearing preload, and transfer assembly procedures.
Rear differential coverage explains the Real-time 4WD dual-pump system and provides separate functional tests for manual and automatic applications. Front and rear driveshaft procedures accompany propeller-shaft inspection and replacement.
The 4WD precautions warn that towing with only two wheels on the ground can damage the drivetrain. The automatic-transmission chapter also identifies an incorrect shift-solenoid installation sequence as a risk to the hydraulic control system.
Chassis, Body and Air Conditioning
The power-steering pressure-test procedure helps distinguish pump trouble from steering-gear faults. Chassis references include wheel-alignment data, brake-booster adjustment information, and component-specific inspection limits.
Body service covers doors, mirrors, glass, sunroof, trim, dashboard, seats, bumpers, hood, tailgate, latches, openers, and frame reference points. This is service-oriented body coverage, rather than a dedicated collision-panel replacement manual.
HVAC coverage includes heater and climate-control self-diagnosis, control-motor testing, compressor-clutch overhaul, refrigerant recovery, evacuation, charging, leak testing, and system-performance diagnosis.
Electrical References and Factory Tools
Diagnostic references include automatic-transmission cutaway and hydraulic-flow views, PCM connector terminal locations and input/output charts, and ABS and SRS circuit and connector views. Component-location indexes and exploded views connect these references to the repair chapters.
Group 78 wiring diagrams distinguish starting/charging/ignition circuits, PGM-FI and automatic transmission, fan controls and HVAC, multiplex functions, keyless locking and security with or without super locking, exterior lighting, navigation, and audio.
Group 77 provides fuel/emissions troubleshooting and automatic-transmission DTC-reading information without a scan tool or Honda PGM Tester, with references to the relevant diagnostic procedures.
Factory tool references include Engine Tilt Hanger Set 07KAK-SJ40101, VTEC Air Adapter 07ZAJ-PNA0101, A/T Oil Pressure Gauge Set 07406-0020004, and P/S Pressure Gauge 07406-0010001. Electrical procedures identify MPCS Short Connector 07WAZ-0010100 and SRS Inflator Simulator 07SAZ-TB4011A.
Reference tables supply component-specific torques, standards and service limits, clearances, fluid and lubricant information, pressure-test data, and electrical test specifications.

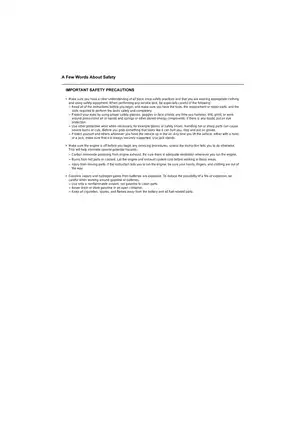

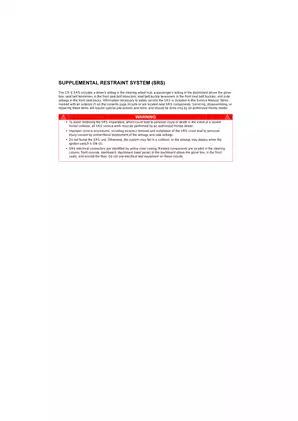

Repair work involving SRS, refrigerant, braking systems, heavy components, or a raised vehicle requires the specified precautions, tools, and test equipment. Honda specifies authorized-dealer service for SRS work.
Examples of Valve-Clearance and Oil-Pressure Data
For the covered engines, valve-clearance specifications are 0.21–0.25 mm intake and 0.28–0.32 mm exhaust, with cylinder-head temperature below 38°C (100°F).
Engine-oil-pressure test data specifies minimum pressure of 70 kPa (10 psi) at idle and 340 kPa (50 psi) at 3,000 rpm, with engine-oil temperature at 80°C (176°F).
