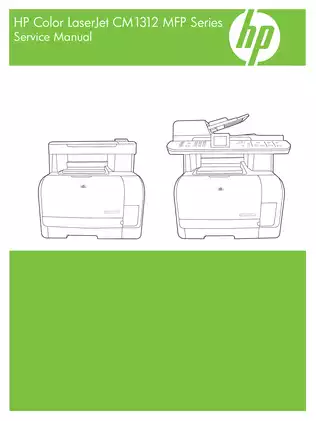

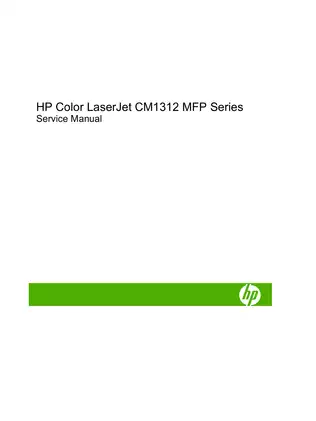

2008 HP Color LaserJet CM1312 / CM1312nfi MFP Service Manual (P/N CC430-90964)

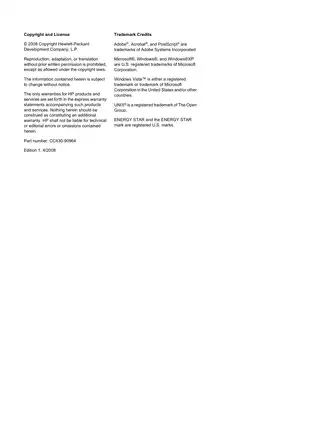

This service manual covers the 2008 HP Color LaserJet CM1312 and CM1312nfi MFP models, including the base configuration and the fax/memory-card model with networking. It is HP publication P/N CC430-90964, Edition 1, April 2008.

• Print engine: Engine control, laser/scanner operation, image formation, high- and low-voltage power supplies, and fuser failure detection.

• Assembly replacement: Illustrated removal and replacement procedures for the formatter and DC controller PCAs, intermediate transfer belt (ITB), fuser, and main motor.

• Paper feed and scanning: Pickup and separation roller service, ADF pickup roller replacement, scanner assembly removal, and model-specific control-panel procedures.

• Fault diagnosis: Control-panel and event-log messages, repetitive-image-defect tables, color calibration, and internal print-quality test pages.

• Fax and memory cards: DAA fax-card and memory-card reader PCA replacement, fax tests, and troubleshooting for fax and photo functions.

• Maintenance and service modes: Paper-path and scanner cleaning, firmware recovery, NVRAM initialization, and secondary service-menu tests and adjustments.

• Service references: Circuit and connector diagrams, a parts-removal tree, exploded assembly views, and replacement-parts lists with regional component distinctions.

The diagnostic sections suit printer technicians who understand HP LaserJet image formation and component functions; internal repair work also requires familiarity with electrostatic-discharge precautions.

Print Engine and Fault Isolation

The engine-control section explains how the DC controller works with the high-voltage, low-voltage, and fuser power supplies. The operating sequence follows power-on, standby, initial rotation, printing, and last rotation, with separate explanations of the image-formation stages.

Failure detection: Fuser coverage addresses start-up failures, abnormal temperatures, and heater-drive faults. The high-voltage section explains bias generation and distribution to charging, developing, transfer, and ITB-cleaning components.

Control-panel messages and event-log entries distinguish laser/scanner, density-sensor, fuser, and communication faults. The repetitive-defect table links recurring marks to specific rotating components, helping narrow the component search before replacement.

Diagrams and component locations: The DC controller connector view, circuit diagram, timing diagram, ADF paper-path diagram, and exploded internal-assembly views support fault tracing and parts identification.

Assembly Replacement and Repair Limits

The removal chapter covers field-replaceable units (FRUs). Its repair scope is assembly replacement; it does not provide component-level circuit-board repair procedures.

The parts-removal tree identifies the covers and assemblies that must be removed to reach a component. Reassembly notes address flat flexible cables (FFCs), control-panel overlay and bezel differences, and component positioning. Post-service checks cover print, copy, and fax quality.

Formatter and ITB precautions: Replacing the formatter PCA and DC controller PCA together loses stored NVRAM configuration and can cause severe print-quality problems. The ITB instructions identify its lower sheet-metal frame as vulnerable to bending during handling.

Internal servicing involves hazardous electrical power and laser assemblies. Follow the manual's power-isolation and protective-cover precautions.

Scanner, Fax, and Regional Parts

The base-model CIS scanner and the fax/memory-card model's scanner/ADF have separate operating descriptions. ADF paper-present and form sensors are tied to jam detection, while memory-card troubleshooting distinguishes file-format, proof-sheet, and reader hardware problems.

Fax hardware: The fax subsystem section explains the DAA, PSTN signaling, isolation circuitry, and fax-page storage. Parts tables distinguish the Americas/Asia DAA card, CC367-60001, from the European version, CC514-60002, alongside variant-specific formatters and control panels.

Firmware coverage includes recovery from an interrupted update. The secondary service menu provides display and button tests, scan calibration, and pickup-roller positioning; the reset section explains the settings affected by NVRAM initialization.

Examples from the Repetitive-Defect Table

These distances are a small sample of the manual's print-quality diagnostic data.

For defects confined to one color plane, the table lists a 22.3 mm repeat interval for the developer roller and 75.8 mm for the OPC drum. The fuser film entry is 56.5 mm, with defects appearing in all color planes. Each distance corresponds to one rotation of the identified component.

Searchable Text, Bookmarks, and Diagram Detail

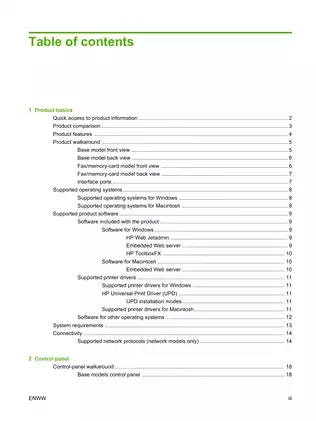

Finding faults and parts: The PDF supports text search and includes bookmarks for chapters and service subsections. Small connector and signal labels in the circuit diagram require zooming for comfortable reading.

This is a 334-page PDF in English, supplied as one printable file. The total includes 318 numbered pages, 12 preliminary pages, front and back covers, and two unnumbered blank pages.
