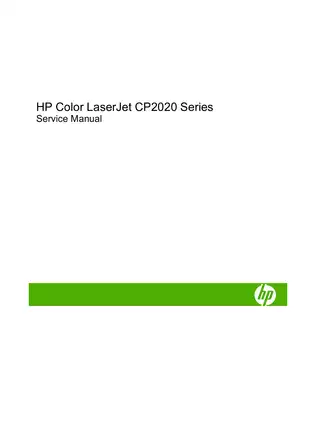

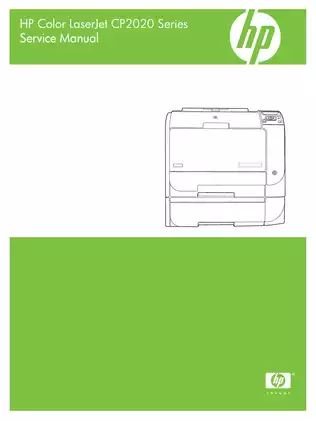

2008 HP Color LaserJet CP2020 Series (CP2025, CP2025n, CP2025dn, CP2025x) Factory Service Manual (P/N CB493-90948)

HP's Color LaserJet CP2020 Series Service Manual (P/N CB493-90948, Edition 1, September 2008) covers the CP2025, CP2025n, CP2025dn, and CP2025x printers, with separate simplex and duplex service details.

• Paper-path repair: Pickup and separation rollers, Tray 1 separation pad, paper-feed guide, paper-delivery assembly, and duplex reverse-drive removal and replacement.

• Fuser and transfer system: Fuser, fuser motor assembly, intermediate transfer belt (ITB), and color-misregistration sensor service, including reinstallation checks.

• Electronics: DC controller, formatter, high-voltage power-supply PCA, intermediate PCA, and power-supply sub PCA removal and replacement.

• Troubleshooting: Control-panel messages, event logs, repetitive-defect tables, color calibration, engine tests, and USB/network fault isolation.

• Service controls: NVRAM initialization, factory-default restoration, secondary service-menu tests, and firmware-update information.

• Parts and diagrams: Exploded assembly views, voltage-specific replacement-part lists, DC controller connector maps, circuit diagrams, and operating timing diagrams.

Suited to printer technicians who understand the LaserJet printing process and can work with ESD-sensitive assemblies.

Print Engine, Paper Path, and Repair Limits

The theory-of-operation chapter connects the engine control system and laser/scanner module with the nine-step image-formation process, from primary charging and laser exposure through transfer, fusing, and drum cleaning. Pickup-and-feed diagrams identify the rollers, sensors, motors, solenoids, and clutches involved in jam detection.

Repair coverage centers on field-replaceable units (FRUs), with different rear-door and feed-drive arrangements shown for simplex and duplex printers. The transfer roller is supplied as part of the paper-feed guide assembly rather than as an individual replacement part.

Laser/scanner limit: Coverage of this unit focuses on operation and fault detection. The manual identifies the laser/scanner as a non-FRU and specifies whole-printer replacement if its mirrors become contaminated.

Electrical Diagnosis and Service Controls

DC controller circuit diagrams, low- and high-voltage power-supply illustrations, connector maps, the operating timing diagram, and the overall circuit diagram show how the control and drive systems connect. HP's service strategy excludes component-level board repair.

Error-code tables distinguish fuser, motor, scanner, sensor, and communication faults. The repetitive-image-defect table links measured mark spacing to rotating components, helping narrow a print-quality complaint before a cartridge, roller, or fuser is selected for replacement.

Configuration preservation: The formatter and DC controller sections explain why simultaneous replacement loses NVRAM configuration data and causes severe print-quality problems.

The reset section distinguishes Restore defaults from NVRAM initialization; this printer does not support the traditional LaserJet cold-reset function. Control-panel menus, HP ToolboxFX, and the embedded Web server provide access to configuration, cleaning, and diagnostic information.

Firmware-update information points to separate installation notes for the update procedure.

Fuser Service, Maintenance, and Parts Selection

The fuser section flags a fragile connector guide that can be damaged by excessive force, requiring replacement of the complete fuser.

Electrical specifications distinguish the 100–127 V and 220–240 V models, and the illustrated parts lists separate voltage-specific fusers. Media tables cover Letter, A4, and custom paper sizes alongside tray-specific loading limits.

Maintenance coverage includes paper-path cleaning, print-cartridge care, DIMM installation, and post-service print-quality checks.

Printers contain high-voltage power supplies and fusing elements that reach extreme temperatures. Always disconnect power and allow the unit to cool thoroughly before inspecting internal components.

A Preview of Repetitive-Defect Measurements

The troubleshooting tables include component-specific measurements; these examples show a small part of the diagnostic data in the manual.

In the repetitive-image-defect table, marks recurring about 22.0 mm apart correspond to one developer-roller rotation. A repeat distance of about 75.0 mm corresponds to the photosensitive drum.

The manual also notes that ITB-related defects normally recur on alternate pages, with the pattern affected by media type.

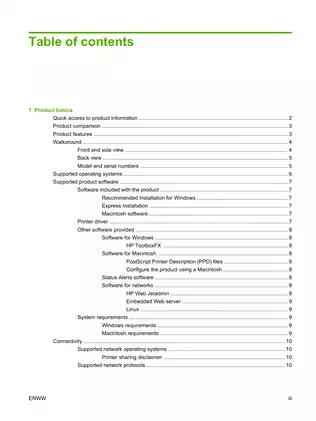

Searchable Text, Bookmarks, and PDF Contents

Search and diagram detail: Body text supports PDF search, and embedded bookmarks cover chapters, procedures, appendices, and the index. Small circuit and timing-diagram labels require zooming and are not all included in the searchable text layer.

Supplied as one printable English-language PDF, 314 pages total. That count includes 292 numbered manual pages, 20 pages of front matter (front cover, title/copyright pages, contents, and blanks), and two closing pages (a blank page and back cover).
