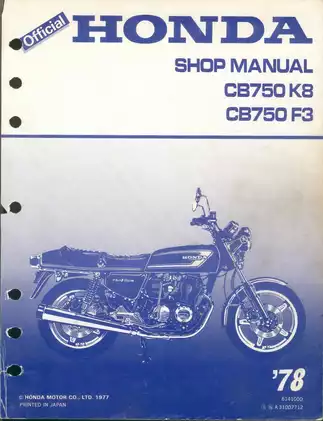

Honda CB750 K8 & F3 Shop Manual – 1978 (P/N 6141000)

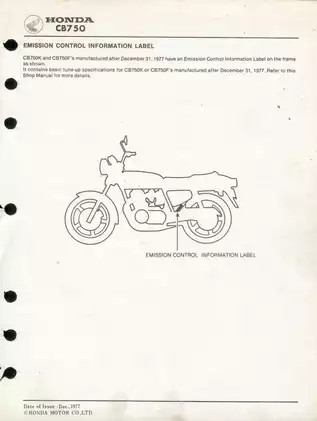

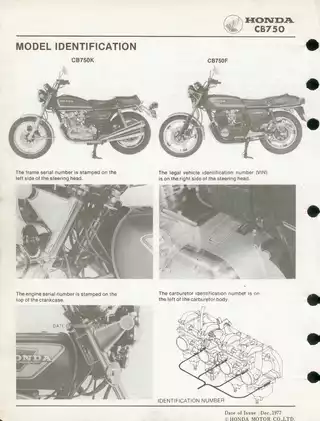

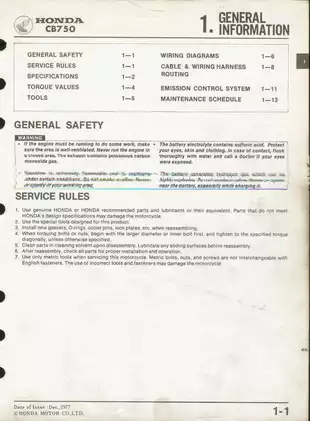

Honda’s factory shop manual covers the 1978 CB750 K8 and CB750 F3. P/N 6141000 identifies the December 1977 issue; this file includes later revised service pages. Its introductory coverage statement applies to emission-controlled motorcycles manufactured after December 31, 1977.

PDF Reading, Wiring Detail and Page Count

Search, navigation and diagram detail: PDF text search and embedded bookmarks are not available. Small wiring-diagram labels require zooming, and some fine wire-color codes remain faint.

One printable, English-language PDF contains 213 pages: 208 shop-manual pages, including the cover, plus five supplementary pages already included in the total.

Engine Overhaul, Carburetor Setup and Chassis Service

The following selected coverage highlights summarize the main workshop sections rather than reproduce the full contents. Other topics include instrument servicing and horn adjustment.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, valve-guide replacement, valve-seat repair, piston service, and crankshaft inspection.

• Lubrication: Oil-pressure diagnosis, filter and screen servicing, dual-rotor oil-pump disassembly, clearance inspection, and pump reassembly.

• Fuel and tune-up: Carburetor overhaul, float-level and accelerator-pump adjustment, vacuum synchronization, static and dynamic ignition timing, and cam-chain tensioning.

• Clutch service: Wet multi-plate clutch removal, disc and plate inspection, spring checks, lifter servicing, and reassembly.

• Brakes and chassis: Model-specific brake service, hydraulic bleeding, caliper and master-cylinder overhaul, wheel-bearing replacement, fork rebuilding, and swing-arm work.

• Electrical diagnosis: Charging-output tests, generator-coil and rectifier checks, ignition testing, starter-motor repair, switch continuity charts, and model-specific wiring diagrams.

• Transmission limitation: Only printed page 11-10 of the transmission chapter is included; pages 11-1 through 11-9 are missing.

This manual suits mechanically qualified owners and technicians equipped for measurement and component service; Honda reserves certain safety-related maintenance items for authorized dealers.

Engine Access and Internal Inspection

The manual distinguishes work that requires engine removal from service possible in the frame. Cylinder-head, cylinder and piston work requires engine removal, while the oil pump and clutch can be serviced with the engine installed.

Bottom-end assessment: Crankcase separation, crankshaft and connecting-rod inspection, Plastigauge checks, and color-coded bearing-selection tables support internal repair decisions. These references help match replacement bearing inserts to the measured clearances and component codes.

Assembly details: The lubrication section identifies delivery and scavenge pump rotors, their orientation marks, and cover O-rings. Cylinder-head instructions address valve-spring orientation, matched camshaft holders and caps, and model-specific head fasteners.

The clutch chapter warns that uneven lifter-plate bolt tightening can break the plate. Cylinder-head assembly cautions also address valve damage caused by inadequate support during valve-cotter seating.

Carburetor Adjustment and Running Problems

The fuel section extends beyond routine synchronization to carburetor separation, throttle-valve and float-chamber service, accelerator-pump adjustment, and post-overhaul pilot-screw settings. Factory-set pilot screws are distinguished from routine idle-speed adjustment.

Fault tracing: Symptom-based troubleshooting flowcharts cover hard starting, power loss, poor idle, high-speed running problems, smoky exhaust, and abnormal engine noise. They connect symptoms with fuel, ignition and mechanical checks, helping narrow the area requiring further inspection.

K- and F-Model Brake and Suspension Differences

Separate procedures distinguish the K-model’s rear drum brake from the F-model’s rear hydraulic disc brake. Front calipers, master cylinders, wheel assemblies and inspection data are also identified by model where their construction differs.

Fork service includes disassembly, tube and slider inspection, seal replacement and reassembly. Rear suspension coverage includes shock-spring removal and swing-arm bushings; the F-model’s COMSTAR wheel has specific limits on disassembly and repair.

Brake work requires particular care: the manual warns that contaminated pads or friction surfaces reduce stopping power.

Charging, Ignition and Starting Circuits

Electrical coverage separates battery condition from generator, silicon rectifier and voltage-regulator faults. Starter diagnosis includes motor brushes, armature and field-coil checks, the magnetic switch, starter clutch and reduction gears.

The illustrated references include separate CB750K and CB750F wiring diagrams, cable and wiring-harness routing drawings, an oil-flow schematic, crankcase-emission routing views, and a charging-system circuit diagram. Special-tool listings identify equipment such as the vacuum gauge set and generator rotor puller.

Examples of Head-Fastener and Crankshaft Inspection Data

Cylinder-head installation specifies 2.0–2.5 kg-m (14.5–18.1 ft-lb) for the 8 mm head nuts, alongside a numbered tightening sequence.

Crankshaft inspection gives a 0.05 mm runout service limit and distinguishes actual runout from the total indicator reading.
