2008 Suzuki Hayabusa GSX1300R K8 / GSX1300RUF K8 Service Manual (P/N 99500-39350-03E)

The 2008 Suzuki GSX1300R Hayabusa service manual, P/N 99500-39350-03E, covers GSX1300R K8 models for E-02, E-19, E-03, E-24, E-28 and E-33 markets, plus the GSX1300RUF K8 E-19 variant.

• Engine repair: Engine removal and installation, top- and bottom-end disassembly, camshaft timing, piston inspection, valve-seat work, and crankshaft bearing selection.

• Fuel and throttle systems: Fuel-pressure and pump-delivery checks, primary and secondary injector testing, throttle-body servicing, throttle-valve synchronization, and idle-speed control adjustments.

• Electrical diagnostics: Suzuki Diagnostic System (SDS) checks, diagnostic trouble codes, ECM terminal identification, sensor-circuit tests, secondary throttle actuator diagnosis, and starting, charging and ignition troubleshooting.

• Cooling and lubrication: Cooling-system pressure checks, thermostat inspection, water-pump disassembly, oil-pressure testing, oil-pump inspection, and radiator and oil-cooler removal.

• Transmission and driveline: Manual transmission disassembly and gearshift inspection, wet multi-plate clutch servicing, hydraulic clutch bleeding, and drive-chain and sprocket replacement.

• Suspension and brakes: Front-fork disassembly, rear-suspension adjustment, swingarm and steering-bearing replacement, brake bleeding, caliper overhaul, and disc and pad inspection.

• Body and lighting: Cowling and seat removal, lamp replacement, headlight adjustment, combination-meter checks, fuel-gauge testing, speed-sensor inspection, and horn-circuit checks.

The internal engine and electrical procedures suit mechanics experienced in precision measurement and circuit testing, with access to the specified service tools and SDS equipment.

Engine Repair and Service Specifications

Compression-pressure benchmarks, valve-clearance checks and crankshaft tolerance tables support condition assessment before parts selection. The Periodic Maintenance Schedule Chart organizes routine inspections, while the intake and exhaust Tappet Shim Selection Tables relate measured clearances to shim sizes.

Tightening specifications cover cylinder-head and crankshaft-journal fasteners. Cylinder-head and transmission removal require engine removal; selected top-end procedures are described with the engine installed. The valve-seat instructions warn that lapping compound can damage the titanium valves’ wear-resistant coating.

Electrical Diagnostics and Maintenance

The FI System Wiring Diagram and ECM coupler terminal layout connect IAP, TPS and CKP sensor tests to their circuits. SDS procedures distinguish current from stored faults and use Show Data When Trouble to review conditions recorded when a fault occurred. Comparing saved inspection data with current readings helps investigate intermittent running problems.

Throttle synchronization includes idle-speed control preparation and learned-value resetting. The STVA must remain attached to the throttle body. Fuel-delivery pipe instructions also warn that twisting the T-joint can damage the joint.

Cooling, Emissions and Exhaust

The Engine Lubrication System Chart Diagram and Cooling Circuit Diagram show oil and coolant paths alongside pressure checks, coolant-capacity information and water-pump repair.

PAIR and heated oxygen-sensor inspections are included. EVAP coverage and the EVAP Canister Hose Routing Diagram apply to E-33; immobilizer information applies to E-02, E-19 and E-24. Exhaust procedures cover pipe and muffler removal, installation and leakage inspection.

Chassis Service and Brake Coverage

Chassis sections include fork seals, suspension bearings, steering tension, cold tire-pressure specifications and wheel balancing. Rear-shock coverage concerns inspection, adjustment, replacement and disposal; the shock itself is identified as non-serviceable.

Brake bleeding and front/rear caliper service are present. Printed pages 4A-6 through 4A-18 are missing, so the brake-fluid replacement, brake-hose replacement and brake master-cylinder procedures listed there are not included in this file.

Brake, fuel-system and suspension work requires the precautions and specialized equipment specified for each procedure.

Fuel, Cooling and Fork Service Data Preview

A small sample of the service data illustrates the conditions supplied with the tests: primary fuel-injector resistance is 11–13 Ω at 20°C, and fuel pressure is approximately 300 kPa with the ignition switched on.

For cooling and fork servicing, the thermostat starts opening at approximately 82°C, and front-fork oil capacity is 532 ml per leg. The corresponding sections provide the inspection methods and assembly details associated with these reference values.

PDF Navigation and File Details

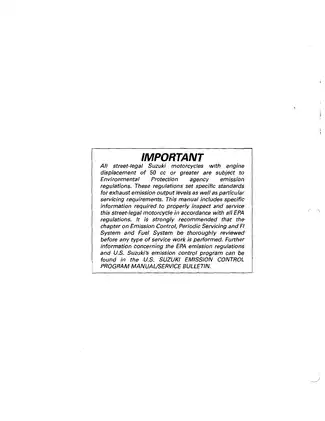

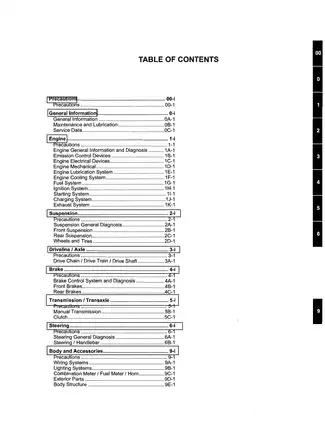

Text search and diagram detail: The PDF has no searchable text layer or embedded bookmarks. Navigation relies on the printed contents and section page numbers. Service text and most drawings are readable, but the full wiring diagrams use very small labels; some wire-color and terminal markings remain difficult to distinguish when enlarged.

The download contains one printable English-language PDF with 645 total pages, including the front and back covers and six blank or header-only pages.
