Yamaha VX500/600 Series Snowmobile Service Manual and Maintenance Guide - 1994-2001
Product Gallery

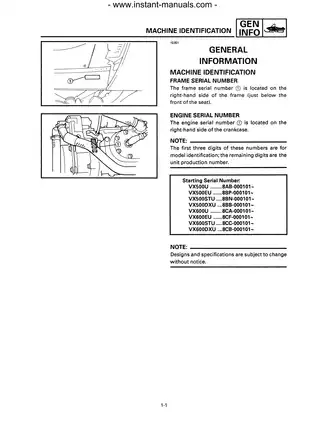

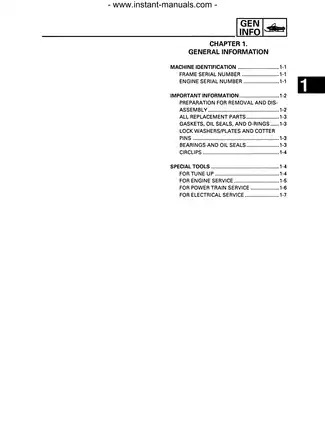

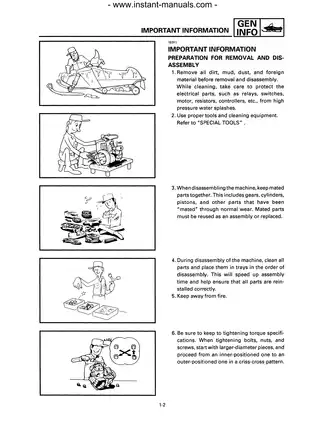

Sample pages from the Yamaha VX500/600 Series Snowmobile Service Manual and Maintenance Guide - 1994-2001 manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 25896 / Charles Diaz
- File Size:
- 63.69 MB
- File Type:
- Language:
- English
- Pages:
- 662
- Printable:
- Yes
- Estimated Download Time:
- 1.3 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Snowmobile
- Brand:
- Yamaha
- Reviewed and Approved:
- Jan 1, 2026
Yamaha Models and Parts Covered in this Snowmobile Manual
- Yamaha VX500U (1994)
- Yamaha VX500EU (1994)
- Yamaha VX500STU (1994)
- Yamaha VX500DXU (1994)
- Yamaha VX600U (1994)
- Yamaha VX600EU (1994)
- Yamaha VX600STU (1994)
- Yamaha VX600DXU (1994)
- Yamaha VX500 (1994)
- Yamaha VX500E (1994)
- Yamaha VX500ST (1994)
- Yamaha VX500DX (1994)
- Yamaha VX600 (1994)
- Yamaha VX600E (1994)
- Yamaha VX600ST (1994)
- Yamaha VX600DX (1994)
- Yamaha VMAX 500 (1994)
- Yamaha VMAX 500E (1994)
- Yamaha VMAX 500ST (1994)
- Yamaha VMAX 500DX (1994)
- Yamaha VMAX 600 (1994)
- Yamaha VMAX 600E (1994)
- Yamaha VMAX 600ST (1994)
- Yamaha VMAX 600DX (1994)
Complete Manual Information
Yamaha VX500 & VX600 Series Snowmobile Service Manual - 1994
This professional service manual provides factory-sanctioned technical procedures for the maintenance and overhaul of Yamaha high-performance snowmobiles. A critical factor for operational uptime is the precision adjustment of the water pump belt deflection, which requires a specific tension of 8 mm at 8 kg (17.6 lb) for new belts to prevent thermal failure. Utilizing these standardized specifications ensures that the powertrain and cooling systems remain within factory-defined reliability parameters.
Technical Applicability & Serial Ranges
VX500 Series Chassis Configurations
- Yamaha VX500U: 8AB-000101 and up
- Yamaha VX500EU (Electric Start): 8BP-000101 and up
- Yamaha VX500STU (Mountain/Long Track): 8BN-000101 and up
- Yamaha VX500DXU (Deluxe Trim): 8BB-000101 and up
VX600 Series Chassis Configurations
- Yamaha VX600U: 8CA-000101 and up
- Yamaha VX600EU (Electric Start): 8CF-000101 and up
- Yamaha VX600STU (Mountain/Long Track): 8CC-000101 and up
- Yamaha VX600DXU (Deluxe Trim): 8CB-000101 and up
Operational ROI & Safety Standards
- Component Longevity: Adherence to the specified 60:40 ethylene glycol-to-distilled water ratio prevents internal corrosion and pump seal degradation.
- Drive System Integrity: Defined sheave distance (267–270 mm) and offset (14.5–17.5 mm) protocols minimize V-belt wear and maximize power transfer efficiency.
- Operator Security: Detailed Throttle Override System (T.O.R.S.) verification procedures ensure engine cutout occurs if throttle linkage malfunctions.
Document Metadata
- Document Type: Full Service Manual
- Print No: 8CA-28197-20
- Total Pages: 175
- Applicable Year: 1994
Technical Depth & Factory Benchmarks
Engine calibration is supported by comprehensive jetting data for Mikuni TM36-B28 and TM38-B103 carburetors, including specific main jet (#151.3 to #156.3) and pilot jet (#45 to #52.5) configurations. Ignition timing accuracy is maintained through a 0.7–0.8 mm (0.028–0.032 in) spark plug gap specification. Drive system synchronization is benchmarked against engagement speeds of approximately 3,700 RPM for the 500cc variants and 3,600 RPM for the 600cc variants.
System Architecture & Navigation Aids

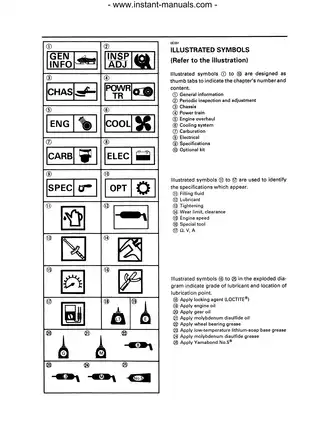

The manual utilizes illustrated symbols to define lubricant types and application points across exploded diagrams. Visual aids include specific icons for Loctite application, engine oil, and low-temperature lithium-soap base grease. Specialized sections cover high-altitude tuning through color-coded spring rate tables and torque cam angle specifications (37° to 42°) for secondary sheave adjustment.

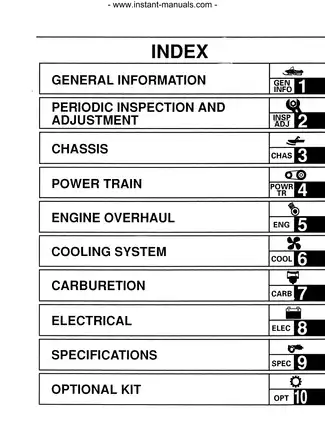

Table of Contents
- Chapter 1: General Information (Machine ID, Special Tools)
- Chapter 2: Periodic Inspections and Adjustments (Maintenance Tables, Engine Tuning, Chassis Setup)
- Chapter 3: Chassis (Steering, Skis, Front Suspension Architecture)
- Chapter 4: Power Train (Primary/Secondary Sheave, Drive Chain, Brake Systems)
- Chapter 5: Engine Overhaul
- Chapter 6: Cooling System
- Chapter 7: Carburetion
- Chapter 8: Electrical
- Chapter 9: Specifications
Operational Limits & Specifications
- Fluid Capacities: Oil Tank (2.9 L), Coolant System (4.2 L to 4.6 L depending on model), Chaincase (250 cm³ to 300 cm³).
- Torque Sequences: Spark Plug (28 Nm), Drive Sheave Bolt (Initial 120 Nm, Final 60 Nm), Rear Axle Nut (75 Nm), Cylinder Head criss-cross tightening required.
- Wear Limits: Brake Pad (5.2 mm), Slide Runner (10 mm), Ski Runner (8 mm).
- Lubricant Specifications: Yamalube 2-cycle oil, Gear oil API GL-3 SAE #75 or #80, ESSO Beacon 325 grease.
