Subaru Legacy & Outback 2006 Owner’s Manual

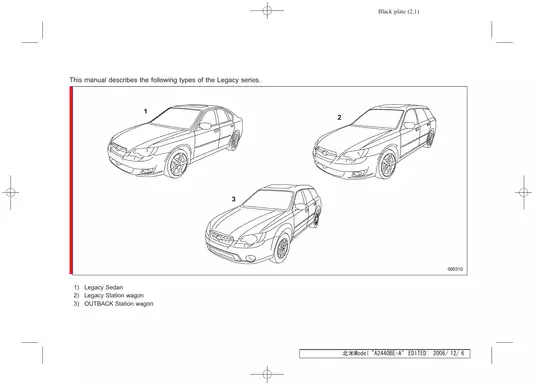

This North American Subaru Owner’s Manual, document code A2440BE-A, lists Legacy Sedan, Legacy Station Wagon, and Outback Station Wagon. It carries an edit date of December 6, 2006; that is a document date, not a separate model-year statement. Equipment-specific instructions apply only where that equipment is installed.

PDF Search, Navigation and Page Count

Search and navigation: The PDF has searchable text and embedded bookmarks, but some chapter bookmarks open incorrect pages. The contents pages and alphabetical index offer alternative ways to find a topic.

TPMS timing entries: Several tire-pressure warning descriptions contain placeholder symbols instead of a blink duration.

One printable PDF contains 438 pages across the fourteen chapters and introductory material, including the index, compass-zone map, and two gas-station reference pages.

Operating Instructions and Owner Maintenance

Selected topics from the operating, maintenance, and emergency sections:

• Routine maintenance: Step-by-step instructions for engine oil/filter changes, coolant replacement, air-cleaner replacement, and wiper-blade replacement.
• Transmission controls: Manual and automatic operation, shift-lock release, reverse-inhibiting functions, SPORT mode, and SI-DRIVE settings.
• Chassis checks: Brake-booster checks, brake and clutch pedal measurements, parking-brake checks, brake-pad/lining break-in, and tire inspection and rotation.
• Keys and equipment: Remote-battery replacement and synchronization, transmitter-code programming and deletion, alarm/chirp and passive-arming settings, and dealer-option remote-start operation.
• Roadside procedures: Flat-tire replacement, jump starting, overheating response, towing, and manual release of a locked wagon rear gate.
• Electrical references: Fuse and bulb replacement instructions, passenger-compartment and engine-compartment fuse charts, bulb data, and U.S./Canada instrument layouts.
• Restraint systems: Seatbelt use, child-restraint installation, LATCH and top tethers, airbag operation, warning indicators, and service precautions.

For owners, this is an operating reference; hands-on maintenance requires the service knowledge and tools described in the maintenance precautions.

Maintenance Depth and Repair Limits

Matching the engine-compartment drawings and service data to the correct powertrain helps owners identify service points and avoid applying another configuration’s lubricant information. The reference tables distinguish EJ253, EJ255, and EZ30D engines and provide displacement, bore and stroke, compression ratio, firing order, and fluid capacities.

The drive-belt section distinguishes belt-deflection checks from the automatic tensioner used on six-cylinder models. Spark-plug references identify NGK FR5AP-11, SILFR6A, and ILFR6B by engine, while recommending dealer replacement. Lubricant guidance covers API GL-5 transmission/differential oil, power-steering fluid, and fresh DOT 3 or DOT 4 brake and clutch fluid.

The repair coverage is limited to owner-level service. Internal engine or transmission overhaul, scan-tool fault trees, and full component removal require other documentation. Detailed scheduled-service intervals belong to the separate Warranty and Maintenance Booklet; navigation operation requires its separate supplement.

The automatic-transmission notes warn that non-specified ATF can damage the five-speed unit; Dexron III is described only as a temporary alternative for the four-speed unit.

Driving Systems, Controls and Warnings

SI-DRIVE coverage distinguishes Intelligent, Sport, and Sport Sharp modes. Other operating sections explain the rear viscous limited-slip differential where equipped, ABS, Electronic Brake Force Distribution, Vehicle Dynamics Control, TPMS, cruise control, and audible brake-pad wear warnings.

The U.S. emissions section discusses CHECK ENGINE/MIL behavior, stored diagnostic trouble codes, and OBD readiness, including its stated rejection condition when more than one monitor is Not Ready. Its AWD testing warning explains the risk of transmission damage and uncontrolled movement on a single two-wheel dynamometer.

Climate-control instructions distinguish manual and automatic systems, identify HFC134a refrigerant, and give the cabin-filter replacement interval where equipped; refrigerant work is referred to a dealer.

Keyless-entry instructions specify the CR2025 battery and programming for up to four transmitter codes. Audio controls, HomeLink programming, loading guidance, and trailer-towing information are also covered.

Illustrated References and SRS Precautions

Useful illustrations include sedan and wagon SRS component-location views, engine-compartment overviews, combination-meter layouts, both fuse-panel layouts, and vehicle-identification label locations. Tire tables cover applications from P205/55R16 through 215/45R18, cold pressures, trailer-towing rear pressures, and wheel alignment.

The bulb references identify H7 low beams, 9005/HB3 high beams, Outback 9006/HB4 fog lamps, and sedan/wagon rear-lamp differences. Electrical coverage consists of owner checks and circuit-to-fuse assignments; wiring schematics and circuit-level fault tracing are outside its scope.

The restraint chapter explains FMVSS 208 advanced frontal airbags, dual-stage inflators, passenger-weight and seatbelt-tension sensing, pretensioners, monitored sensors/modules, and modification risks. It provides system and safety information rather than airbag repair diagnostics.

Review the SRS precautions before work near the steering wheel/column, dashboard, center console, front seats, center pillars, roof-side areas, rear wheelhouses, or under the rear center seat. Yellow SRS and pretensioner circuits must not be probed with electrical test equipment; tampering can trigger deployment or disable the system.

Oil-Capacity and Wheel-Nut Torque Preview

For oil-and-filter service, guideline engine-oil capacities are 4.2 US qt for EJ253/EJ255 models and 5.8 US qt for EZ30D models. The manual notes that the actual refill depends on drainage and requires confirmation with the dipstick.

The flat-tire section specifies wheel-nut torque of 74–89 lbf·ft (100–120 N·m). Temporary-spare data specifies 60 psi, alongside application-specific tire and pressure tables.
