Yamaha Blaster YFS200T 2004 Owner's Manual (P/N LIT-11616-07-20 / 3JM-28197-10, 11626-18-05 / 5VM-28199-12)

• 511-page PDF manual set - a 345-page Yamaha service file covering YFS200U, YFS200A, YFS200P, and YFS200R service data, plus a separate 166-page YFS200T Owner's Manual.
• Engine and drivetrain chapters cover engine removal, top-end and crankcase teardown, crankshaft and balancer work, clutch and constant-mesh transmission repair, Autolube pump inspection, reassembly, and adjustment.
• Carburetion coverage includes Mikuni VM26SS carburetor removal, disassembly, inspection, fuel-level checks, reed-valve service, throttle-system adjustment, and model-specific cold-weather settings.
• Chassis repair includes wheels, axles, steering, front arms, shocks, swingarm, chain and sprockets, with the YFS200R supplement adding hydraulic brake bleeding, pad replacement, caliper service, and master-cylinder overhaul.
• Electrical sections provide TORS and ignition fault isolation, switch-continuity checks, coil and lighting tests, oil-level warning diagnosis, cable routing, circuit diagrams, and full U/P/R wiring diagrams.
• The YFS200T owner's manual covers controls, pre-ride inspection, cold and warm starting, shifting, break-in, riding technique, loading, scheduled maintenance, troubleshooting, cleaning, storage, and factory specifications.

Manual Stack and Model-Suffix Scope

511 PDF pages total - YFS200(U-A) service section: 248 pages; YFS200P supplementary service section: 24 pages; YFS200R supplementary service section: 73 pages; YFS200T owner's manual: 166 pages.

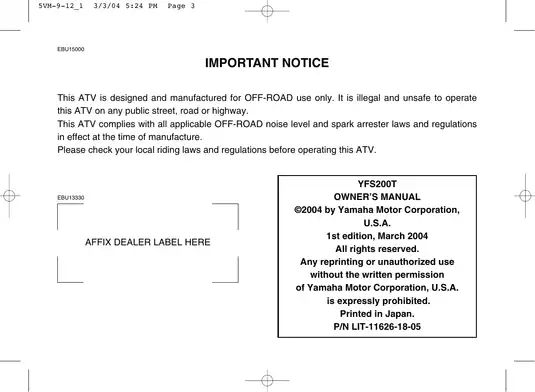

Service publication numbers are LIT-11616-07-20, LIT-11616-15-05, and LIT-11616-16-37. The YFS200T owner's manual is LIT-11626-18-05. The supplements identify the underlying YFS200U base manual as LIT-11616-06-41 / 2XJ-28197-10. First-edition dates are January 1990 for the U-A volume, May 2001 for the P supplement, July 2002 for the R supplement, and March 2004 for the T owner's manual.

The service material is cumulative: the P supplement calls for the U base manual and A supplement, while the R supplement calls for the U, A, and P material. Model identification matters here. The owner's book is specifically labeled YFS200T, but the shop sections are labeled YFS200U/A/P/R; this set does not contain a separately titled YFS200T service supplement. Check the machine's model label and changed systems before selecting repair specifications or procedures.

Two-Stroke Engine, Transmission, and Chassis Repair

The base shop manual handles the work normally missing from an owner's book. It covers removal and remounting of the engine, cylinder head and cylinder service, piston and ring inspection, clutch repair, primary-drive and balancer gears, kickstarter and shift mechanism, CDI magneto, crankcase separation, transmission and shifter inspection, crankshaft installation, and Autolube pump testing. Exploded assembly views precede the major disassembly sections.

Factory tool references include the crankcase separating tool YU-01135 / 90890-01135, rotor puller YM-01189 / 90890-01189, crankshaft installing equipment YU-90050 / 90890-01274 / 90890-01275, and dynamic coil tester YU-34487 / 90890-03144. The specification chapters supply component torque data, lubrication points, wear limits, clearances, carburetor settings, clutch and transmission inspection data, chassis measurements, and electrical test values.

The supplements show where the build changed. YFS200A data includes regional VIN, frame, and engine starting numbers, model codes 3JM2/3JM3, cable routing, transmission-oil service, parking-brake adjustment, and a cold-weather carburetor chart. The YFS200P section identifies model code 5KJ7 and updates routing, rear brake-light-switch adjustment, signal-system tests, and its wiring diagram. The YFS200R section, model code 5VM1, adds the later hydraulic brake configuration with front and rear caliper work, master-cylinder service, brake-system bleeding, parking-brake setup, and updated ignition and lighting diagnosis.

Electrical Diagrams and TORS Troubleshooting

Diagnosis is organized as factory fault isolation rather than a generic wiring overview. Covered checks include no-spark or intermittent-spark conditions, throttle and carburetor switch operation for the TORS control circuit, ignition-coil and magneto tests, headlight and taillight faults, and oil-level warning operation. Diagram examples include the YFS200U circuit diagram, ignition-system circuit diagram, lighting-system circuit diagram, oil-level signal circuit diagram, YFS200P wiring diagram, and YFS200R wiring diagram.

Two repair cautions are especially important. The manual requires the Autolube pump and delivery line to be bled after the oil circuit has been disconnected, after the ATV has been laid on its side, or after the oil tank has run empty; trapped air can interrupt two-stroke lubrication. In the R-model brake section, fluid type, hose indexing, new copper washers, and parking-brake spring orientation are treated as critical because mistakes can damage seals, create leaks, or leave the brake dragging.

YFS200T Operation, Maintenance, and Safety

The YFS200T owner's manual explains the TORS safety function, constant-mesh 6-speed operation, engine break-in, hill and slope techniques, parking, accessory use, and the periodic maintenance schedule. It also states a 100 kg (220 lb) total vehicle loading limit for rider, cargo, and accessories.

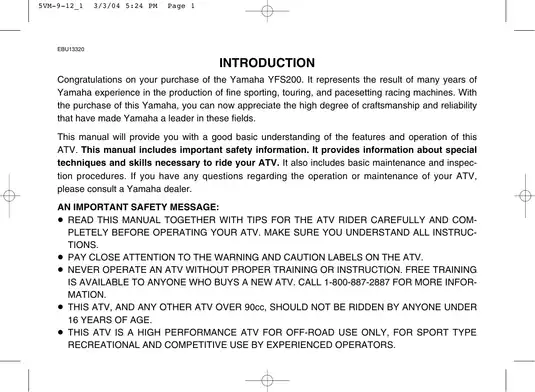

Yamaha identifies this as a high-performance, single-rider, off-road ATV and warns against public-road use, passengers, and operation by anyone under 16. Engine, Autolube, steering, suspension, and brake repair should be performed from the correct model section with the machine safely supported and the factory warnings and inspection limits followed.
