Yamaha Raptor 700 YFM700RV ATV Service Manual, 2006 (P/N LIT-11616-19-13)
401 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: YFM700RV Raptor (1S31)
Sub-models / Variants: Raptor 700 series
Model Years: 2006–2008 (2006, 2007, 2008)
-
Engine displacement: 686 cm3
-
Engine type: Liquid-cooled 4-stroke, SOHC
-
Fuel system: Electronic Fuel Injection (EFI), 324 kPa pressure
-
Transmission: 5-speed constant mesh with reverse, chain drive
-
Brake system: Dual front disc, single rear disc, DOT 4 fluid
-
Battery capacity: 12 V 8.0 Ah (GT9B-4)
-
Spark plug: CR8E/NGK (0.7–0.8 mm gap)
-
Tire size: AT21x7-10 front, AT20x10-9 rear
-
Overall length: 1,845 mm

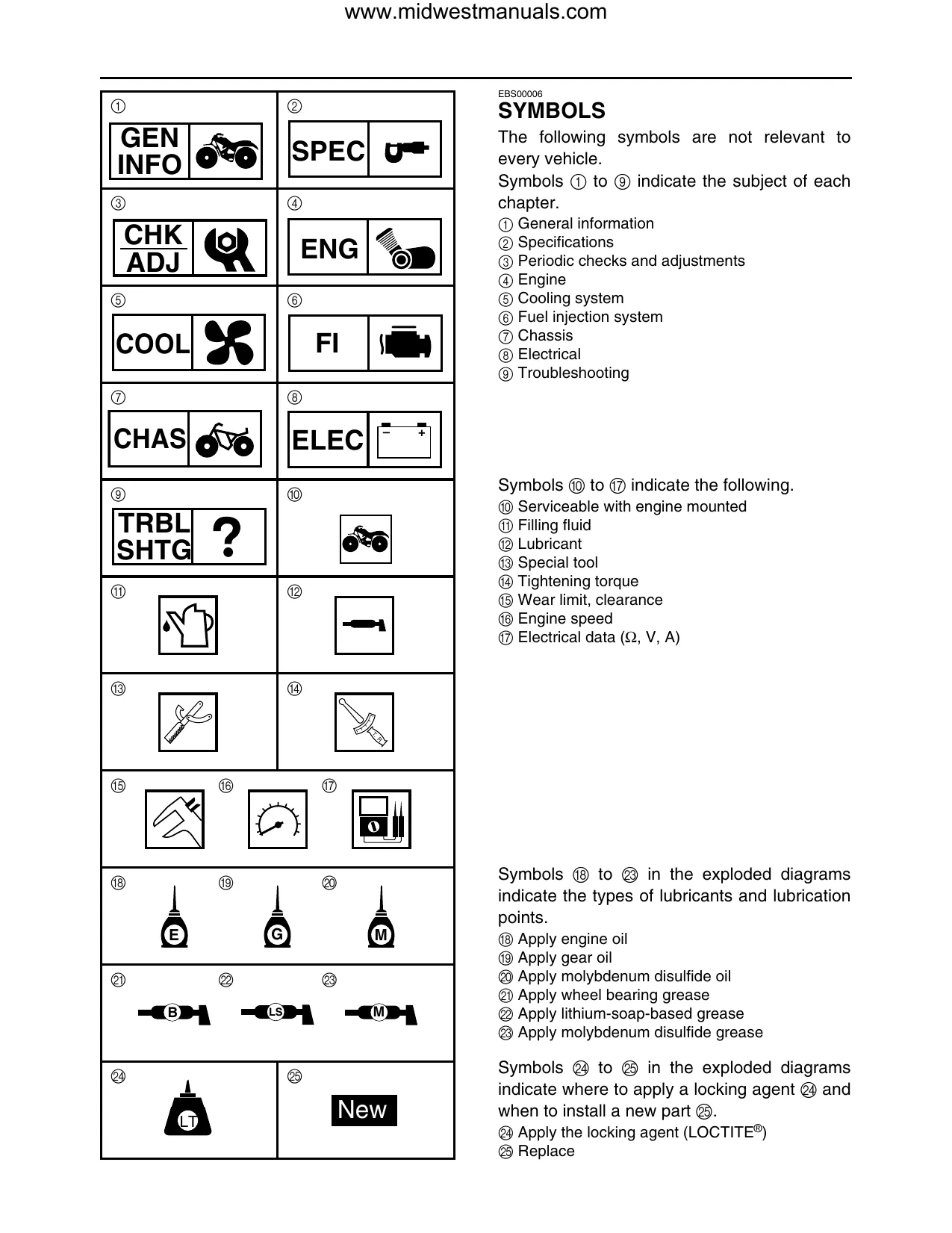

Yamaha Manual Features & Selected Content Preview
This Yamaha factory service manual covers the 2006 Raptor 700 YFM700RV ATV, model code 1S31 (P/N LIT-11616-19-13). The download contains the base service manual. Some Raptor 700 variants require a separate supplement for model-specific procedures.

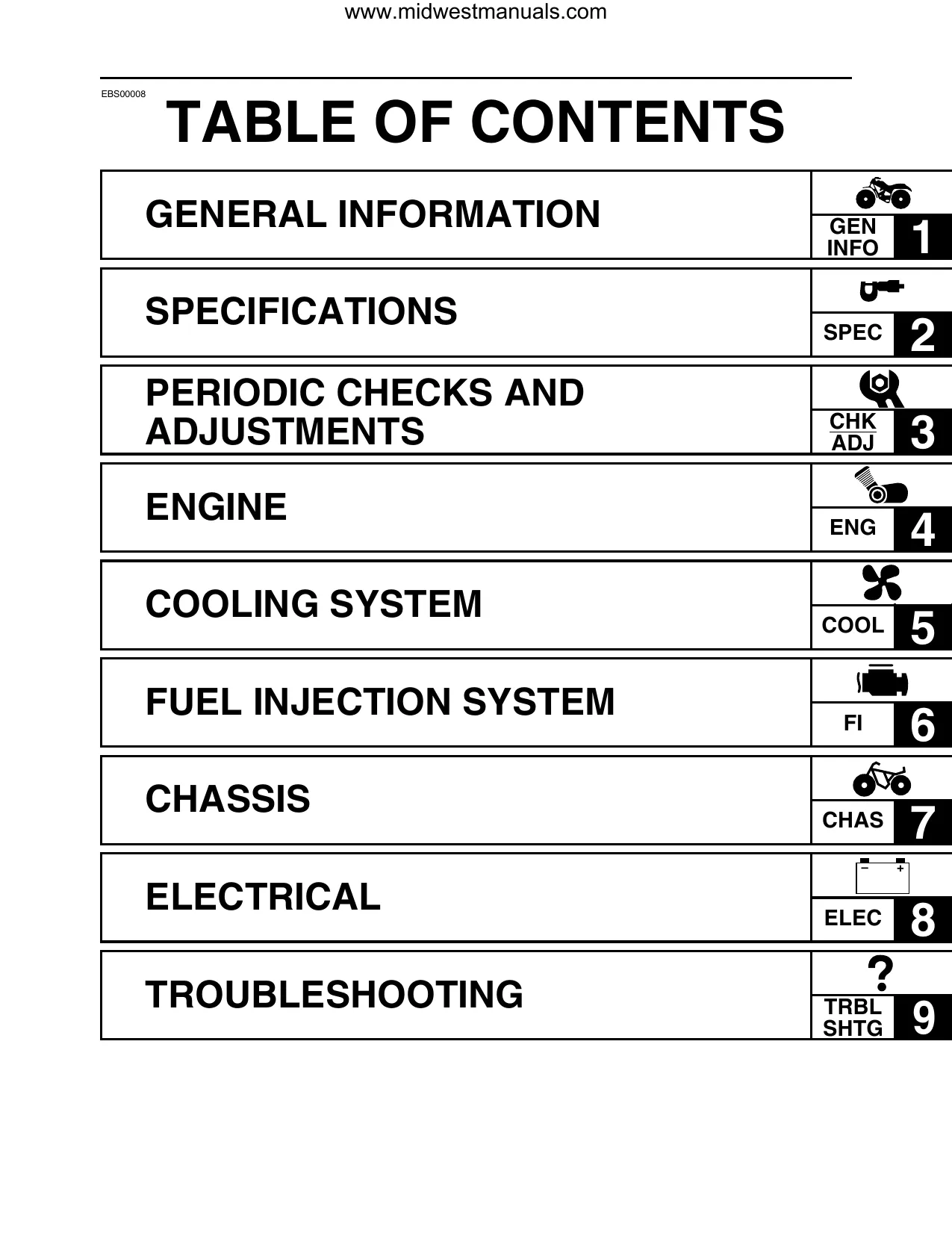

PDF Search, Bookmarks, and Wiring Diagrams
Search and navigation: Search the PDF text or use 80 embedded bookmarks to reach chapters, repair sections, and the main wiring diagram. Zoom in to read the smallest wire-color codes and connector labels in the denser diagrams.
The download is one printable English PDF with 401 pages, including 400 pages of Yamaha manual material and one additional introductory page.
Engine Overhaul, EFI Diagnostics, and Chassis Service
The highlights below show selected workshop procedures. The manual also includes a periodic maintenance chart and instructions for adjusting the reverse-control cable.
- Engine repair: Engine removal, cylinder-head overhaul, cold valve-clearance adjustment, cylinder and piston inspection, timing-chain replacement, and crankcase separation.
- Clutch and transmission: Wet multi-plate clutch inspection, shift-shaft service, transmission disassembly and reassembly, and checks of gear engagement and shift forks.
- Fuel injection: ECU self-diagnosis, sensor and actuator tests, fuel-pump and pressure-regulator checks, and throttle-position-sensor adjustment.
- Cooling system: Radiator removal, radiator-cap pressure testing, thermostat inspection, water-pump disassembly and seal replacement, and coolant filling and bleeding.

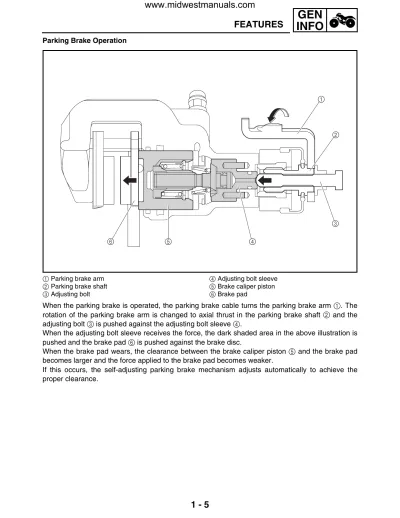

- Brakes: Front and rear caliper rebuilding, master-cylinder service, hydraulic bleeding, and an explanation of the self-adjusting parking-brake mechanism.
- Steering and suspension: Steering-knuckle and front-arm service, front and rear shock inspection and adjustment, rear linkage service, and swingarm and drive-chain checks.
- Electrical troubleshooting: Circuit diagrams and component tests for ignition, starting, charging, lighting, signaling, and radiator-fan operation, plus starter-motor disassembly and inspection.

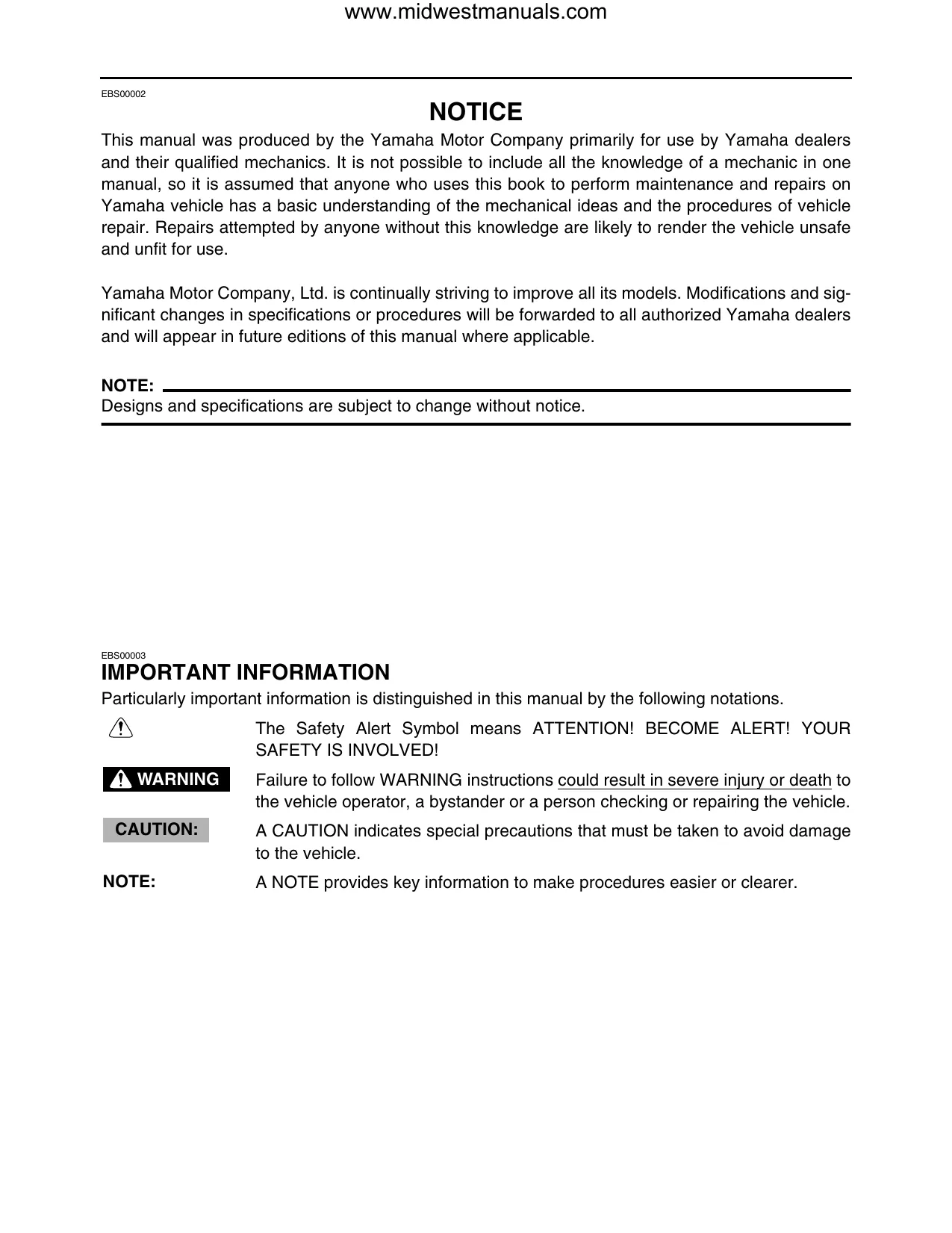

Yamaha prepared the manual primarily for dealer technicians and qualified mechanics. The procedures assume familiarity with vehicle maintenance and repair.
Engine Overhaul and Powertrain Service
Exploded views and disassembly charts identify the rocker arms, camshaft, valves, piston, and crankshaft. The engine chapter gives the cylinder-head bolt tightening sequence and wear limits used to assess parts during overhaul.
Lubrication and drive components: Oil-flow diagrams accompany dry-sump oil-tank service and oil-pump inspection. Separate procedures cover the A.C. magneto, starter clutch, balancer gears, and clutch damper assembly.
Transmission procedures cover the main, drive, and counter axles, including reverse gearing. The manual identifies the shift-fork positions and calls for checking shift operation and free gear rotation before closing the crankcase.
Fuel Injection and Electrical Fault Diagnosis
ECU diagnostics: Fault-code charts connect symptoms to sensor and actuator checks. The manual explains how to monitor sensor output, activate components, and clear stored fault history using Yamaha FI diagnostic tool 90890-03182 / YU-03182.
The intake-air-pressure diagnostics distinguish an open or short circuit from a blocked or disconnected sensor hose. That distinction helps a technician decide whether to inspect the wiring or the hose before replacing the sensor.
Throttle body: The manual covers injector removal, throttle-body inspection, and fuel-pressure testing. Yamaha specifies keeping the throttle body assembled during service.
Ignition and starting diagrams show the coils, relays, neutral switch, and clutch interlock. Connector views and the main wiring diagram identify wire colors and connections. The radiator-fan relay procedure warns that reversing polarity during testing can damage the relay and that reinstalling a damaged relay can damage the ECU.
Brakes, Steering, and Rear Suspension
Brake assemblies: The rear-caliper procedure specifies piston alignment and the positions of the parking-brake shaft and arm during assembly.
Steering procedures cover tie-rod and steering-knuckle inspection and toe-in adjustment. A defective upper ball joint requires replacement of the upper arm assembly. The lower ball joint can be replaced separately.
Rear chassis: The manual covers relay-arm, connecting-arm, and swingarm bearings and bushings, plus drive-chain wear and sprocket inspection. It warns that striking the rear axle directly can damage its threads and splines.
Shock-absorber service covers removal, inspection, adjustment, and replacement. The rear shock and gas cylinder are serviced as an assembly.
Cooling-System Inspection and Assembly
Coolant-flow diagrams and cable-routing drawings show the routing of hoses and the wiring harness. The water-pump procedure covers the impeller shaft, bearing, oil seal, and mechanical seal and identifies the tools for installing the seals.
Selected Valve, Cooling, and Ignition Specifications
The valve adjustment procedure specifies 0.09–0.13 mm of intake valve clearance with the engine cold. The coolant refill procedure lists 1.61 L for the radiator circuit, including all coolant passages. The reservoir has a separate capacity specification.
For ignition diagnosis, the crankshaft position sensor has a specified resistance of 192–288 ohms at 20 °C (68 °F).
