Yamaha Kodiak 450 ATV 2003–2006 Service Manual Set (P/N 5ND-F8197-10)

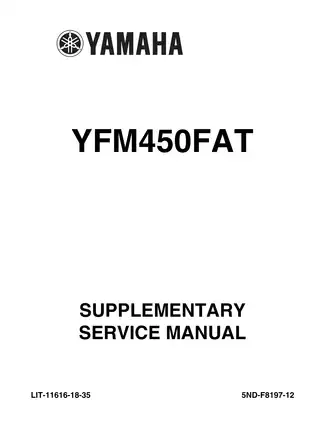

The supplements provide changes to the base manual rather than replacing it. The YFM450FAT foreword specifies using that supplement together with both the YFM450FAR base manual and the YFM450FAS supplement.

Text Search, Bookmarks and Wiring Detail

Finding sections and small labels: Searchable text is available throughout the service sections and in the model-specific wiring diagrams. Embedded bookmarks navigate the first base-manual and supplement sections; the later repeated sections are not separately bookmarked. Small connector and wire-color labels in the wiring diagrams require zooming.

One printable, 858-page PDF contains all three publications. The total includes the repeated pages listed above, one introductory page, all covers and front matter, and two blank section pages.

Engine Overhaul, Shaft Drive and Electrical Diagnosis

The following selected coverage highlights outline major workshop tasks rather than reproduce the full contents. Additional topics include spark-arrester cleaning and headlight-beam adjustment.

• Engine repair: Engine removal, cylinder-head and valve service, piston inspection, crankcase disassembly, and crankshaft inspection and installation procedures.

• CVT and transmission: Primary and secondary sheave disassembly, centrifugal-clutch inspection, V-belt checks, and internal transmission service.

• Mikuni BSR33 carburetor: Disassembly, diaphragm and jet inspection, float-height checks, reassembly, and fuel-level adjustment.

• Cooling system: Radiator inspection, cap-pressure testing, thermostat checks, and water-pump disassembly, inspection and seal installation.

• Shaft drive: CV-joint and dust-boot service, differential and final-drive overhaul, pinion positioning, gear-lash measurement, and shim selection.

• Brakes and chassis: Hydraulic brake bleeding, master-cylinder and caliper service, steering-knuckle and tie-rod work, and suspension removal and inspection.

• Electrical troubleshooting: Ignition, starting, charging, lighting, signaling, cooling-fan and 2WD/4WD circuit diagnosis, supported by wiring diagrams and test charts.

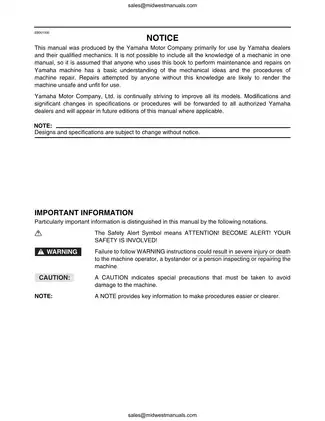

Written primarily for Yamaha dealers and qualified mechanics, these manuals assume a working knowledge of mechanical principles and machine repair.

Engine Internals and CVT Assembly

The base manual’s ten chapters include step-by-step procedures for engine removal and installation, crankcase separation, and crankshaft and balancer installation. Cylinder-head work includes staged bolt tightening, timing-mark checks and timing-chain tensioner inspection.

Exploded diagrams identify lubrication points, locking-agent locations and parts requiring replacement. Transmission inspection extends to the shift forks, shift cam, shafts and gears, while the sheave sections address the secondary spring and sliding-sheave components. The special-tool references include sheave spring compressor YM-04134 / 90890-04134.

Carburetor Inspection and Cooling-System References

Carburetor coverage distinguishes the vacuum-piston diaphragm, coasting-enricher diaphragm, needle valve and valve seat. The fuel-level adjustment procedure identifies the measuring reference and the required fuel-level gauge, YM-01312-A / 90890-01312.

Coolant Flow Diagrams and Oil Flow Diagrams show the circulation paths alongside the component procedures. Water-pump assembly includes mechanical-seal installation tooling, and the thermostat section provides an opening-temperature test.

Drivetrain and Suspension Differences

The YFM450FAS supplement introduces the differential-lock override-switch system and changes to steering and rear-brake components. The YFM450FAT supplement covers a double-wishbone rear suspension with rear CV joints, knuckles and a stabilizer, whereas the base manual describes the swingarm rear arrangement.

These differences matter when selecting chassis procedures and drivetrain adjustment data. The later final-drive section adds pinion-bearing replacement, ring-gear thrust-clearance measurement with Plastigauge, and ring-gear stopper adjustment.

The middle driven shaft section identifies left-hand-threaded bearing retainers and warns that direct press loading on the shaft end can damage its threads. The differential gear-lash procedure also warns that excessive force on the ring-gear holding bolt can damage the ring gear.

Circuit Diagrams and Fault Isolation

Cable Routing drawings, the Ignition System circuit diagram, the 2WD/4WD Selecting System circuit diagram and the YFM450FAT Wiring Diagram support harness tracing and component identification.

For a gear motor that will not operate, the diagnostic charts distinguish relay, switch, motor and wiring checks. Starter-motor inspection includes commutator condition, armature continuity and insulation, and brush wear; the A.C. magneto section covers rotor removal and starter-clutch inspection.

Valve-Clearance and Oil-Capacity Examples

Valve checks: For YFM450FAR, the cold valve-clearance specifications are 0.06–0.10 mm intake and 0.16–0.20 mm exhaust. The adjustment section pairs these values with TDC identification and measurement guidance.

Oil service: The base manual lists 2.4 L for an engine oil change with filter replacement, separately from its periodic-change and total-capacity entries.

Wheel, brake and suspension work requires secure support of the ATV. Always verify procedures and consult a qualified technician if you lack the tools or experience required for the work.
