Yamaha V-Max VX500/VX600 & Venture Snowmobile Service Manual Set, 1994–2006

1,400 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$17.35 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

VX500, VX500E, VX500ST, VX500DX, VX600, VX600E, VX600ST, VX600DX, VX500XT, VX500XTC, VX500XTCE, VX500XTCR, VX600XT, VX600XTC, VX600XTCE, VX600XTCR, VX600SX, VX600SXB, VX600ER, VX700SX, VT500, VT600, VT60, MM600, MM700, SXV60, SXV60ER, Venture 600, V-Max 600


Models & Model Codes:

VX500 — 8AB (VX500U), 8AB2 (VX500V)

VX500E — 8BP (VX500EU), 8BP2 (VX500EV)

VX500ST — 8BN (VX500STU), 8BN2 (VX500STV)

VX500DX — 8BB (VX500DXU), 8CL1 (VX500DXV)

VX600 — 8CA (VX600U), 8CA2 (VX600V)

VX600E — 8CF (VX600EU), 8CF2 (VX600EV)

VX600ST — 8CE (base specifications), 8CC2 (VX600STV), 8CC (XT/ST supplement)

VX600DX — 8CB (VX600DXU), 8CG1 (VX600DXV)

VX500XT — 8CM (XT/ST supplement), 8CJ (shared service manual)

VX500XTC — 8CU

VX500XTCE — 8DC

VX500XTCR — 8DD

VX600XT — 8BV (XT/ST supplement), 8CR (shared service manual)

VX600XTC — 8CX

VX600XTCE — 8DA

VX600XTCR — 8DB

VX600SX — 8CV

VX600SXB — 8EA

VX600ER — 8DG

VX700SX — 8CH

VT500 — 8CY

VT600 — 8CW (shared service manual), 8EB (VX600ER/VX600SXB/VT600 manual)

VT60 — 8FD1, 8FD2

MM600 — 8CS

MM700 — 8CP

SXV60 — 8EX1

SXV60ER — 8EY1

Sub-models / Variants: E (Electric Start), ST, DX (Deluxe)

Model Years: 1994–2006 (1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006)

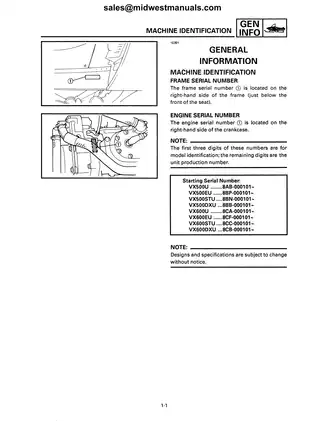

Serial Numbers: VX500U: 8AB-000101~, VX500EU: 8BP-000101~, VX500STU: 8BN-000101~, VX500DXU: 8BB-000101~, VX600U: 8CA-000101~, VX600EU: 8CF-000101~, VX600STU: 8CC-000101~, VX600DXU: 8CB-000101~

Serial Numbers: VX500V: 8AB-005101~, VX500EV: 8BP-004101~, VX500STV: 8BN-004101~, VX500DXV: 8CL-000101~, VX600V: 8CA-007101~, VX600EV: 8CF-005101~, VX600STV: 8CC-004101~, VX600DXV: 8CG-000101~

Serial Numbers: VX500XT (XT/ST supplement): 8CM-005101, VX600XT (XT/ST supplement): 8BV-011101, VX600ST (XT/ST supplement): 8CC-012101


The technical values below refer to the VX500/VX600 base manual. Specifications differ in the supplements and later model sections.

  • Spark plug gap (adjustment procedure): 0.7–0.8 mm (0.028–0.032 in)

  • Spark plug torque: 28 Nm (20 ft-lb)

  • Oil tank capacity: 2.9 liters (3.1 US qt)

  • Coolant total capacity: 4.2 L (VX500(E)/VX600(E)/VX500DX/VX600DX), 4.6 L (VX500ST/VX600ST)

  • Idle speed (adjustment procedure): 1,450–1,650 r/min

  • Clutch engagement speed: VX500(E)/ST/DX approx. 3,700 r/min, VX600(E)/ST/DX approx. 3,600 r/min

  • Track deflection: 25–30 mm (0.98–1.18 in) under a 10 kg (22 lb) load

  • Drive chain gear oil capacity: 250 cm3 (VX500(E)/VX500ST/VX600(E)/VX600ST), 300 cm3 (VX500DX/VX600DX)

Transmission variants: Automatic V-belt drive with chain reduction. Factory reverse is listed for VX500DX/VX600DX in the base manual, VX500XTCR/VX600XTCR and VT500/VT600 in the shared manual, VX600ER and VT600 (8EB) in the later VX600 manual, and SXV60ER/VT60 in the SXV60/VT60 manual.

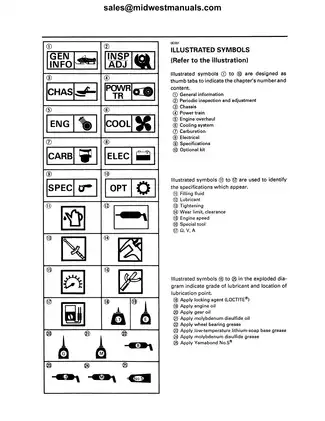

Yamaha Manual Features & Selected Content Preview

Publication Pages
V-Max VX500(E)/ST/DX and VX600(E)/ST/DX base service manual 232
V-Max VX500/VX600 service supplement 55
V-Max VX500XT, VX600XT and VX600ST service supplement 59
Shared service manual for V-Max VX500XT and VX600XT variants, VX600SX, VX700SX, Venture VT500/VT600, and MM600/MM700 274
VX600ER, VX600SXB and Venture VT600 service manual 223
SXV60ER, SXV60 and Venture VT60 service manual 277
Repeat of the SXV60ER, SXV60 and VT60 manual 277
Additional wiring sheets for SX500 and SX600/SX700 2
Introductory page 1
Total 1,400

Use the early VX500/VX600 supplements for revised procedures and specifications, and refer to the base manual for the remaining service work. Use the matching model section for later engines, clutch settings and wiring.

The two additional SX wiring sheets provide electrical coverage only. The VX600ST supplement contains the E.C.C. circuit diagram, but the separate U.S./Canada wiring sheet listed in its contents is absent from that supplement.

PDF Search, Bookmarks and Wiring Legibility

Finding test procedures and tracing wires: Text search works across much of the file, though some scanned contents and illustration pages have little or no searchable technical text. Bookmarks open many chapters, but some entries have no destination, and the first SXV60/VT60 block lacks its own chapter bookmarks. Small wire codes and connector labels need zooming, especially on the older sheets, where some characters remain difficult to distinguish.

The download is one printable, 1,400-page English PDF. The total includes the supplements, the introductory page, both additional wiring sheets and the repeated service section.


Engine, Drivetrain and Electrical Service

Selected workshop topics are outlined below. The manuals also include early reverse-gear and starter-motor kit installation.

  • Engine repair covers removal, piston and cylinder inspection, crankshaft measurements, crankcase assembly, reed valves and recoil starters.
  • Clutches and chaincase covers primary and secondary sheave overhaul, drive-belt wear checks, jackshaft service and chaincase work for models with and without reverse.

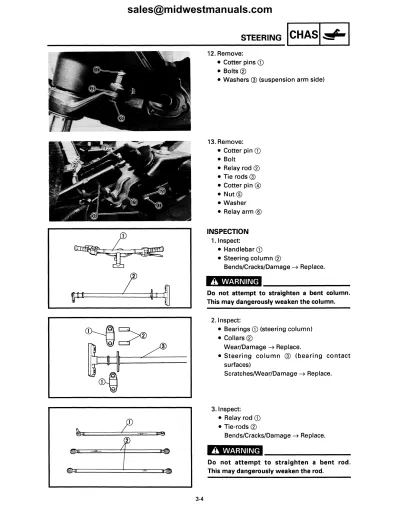

  • Chassis and brakes covers ski and steering alignment, front and slide-rail suspension service, track alignment, brake-pad inspection and hydraulic brake bleeding.
  • Cooling and oil injection covers water-pump and heat-exchanger work, thermostat and filler-cap testing, coolant replacement, and oil-pump adjustment and bleeding.
  • Carburetion covers disassembly, fuel-level checks, synchronization, fuel-pump inspection and main-jet selection for temperature and altitude.
  • Electrical diagnosis covers ignition, starting, charging and warmer circuits, with model-specific wiring diagrams, connector views and fault tables.

The procedures are suited to technicians and experienced two-stroke snowmobile mechanics using the specified clutch tools and electrical testers.

Engine Differences and Overhaul Data

The early VX500/VX600 sections cover liquid-cooled twins. The VX600ER/VX600SXB/VT600 and SXV60ER/SXV60/VT60 manuals cover liquid-cooled triples. Their overhaul chapters use model-specific piston and cylinder clearances, ring wear limits, crankshaft measurements and component torque tables. Coolant-flow drawings show how the pump and heat exchangers fit into each system.

Clutch Tools and Suspension Setup

The primary-sheave exploded views accompany inspections of bushings, weights, rollers and springs. The early clutch procedures identify the primary sheave holder 90890-01701 / YS-01880 and spider separator 90890-01711 / YS-28890-B. They also explain where the sheaves and spider can crack if the assembly is poorly supported during service.

Suspension sections include ski-spindle camber, toe-out, slide-rail overhaul and spring-setting charts. The tuning tables pair clutch and gearing recommendations with operating conditions.

Carburetor Tuning and E.C.C. Fault Tracing

The VX600ST supplement and the VT600/MM600 section include an E.C.C. test-lead layout and fault-location tables. A technician can use the warning-light pattern to choose the sensor or solenoid test relevant to the fault before replacing parts. The diagnostic instructions also address static-sensitive ECU terminals. Applicable carburetor sections cover throttle-position sensor inspection and adjustment.

Ignition, Instruments and Harness Routing

Electrical fault charts cover no-spark and no-start conditions, charging faults, warning lights, fuel gauges and passenger grip warmers. Throttle Override System checks are covered separately from E.C.C. diagnosis. Later SXV60/VT60 procedures include speedometer testing with coupler YS-45686. The VX600ER/VX600SXB/VT600 wiring diagram shows wire colors and connector layouts, and separate cable-routing drawings show where the harness runs.

Sample Belt and Piston Wear Specifications

For the VX500/VX600 base models, the drive-belt table lists a standard width of 35.0 mm (1.38 in) and a wear limit of 32.0 mm (1.26 in).

The VX600ER/VX600SXB/VT600 service manual lists a piston-to-cylinder clearance limit of 0.1 mm (0.004 in). The SXV60ER/SXV60/VT60 specification lists the limit as less than 0.15 mm (0.006 in), so the applicable service section matters when assessing cylinder wear.
