Massey-Ferguson MF3600 Tractor Workshop Manual, 1988–1994 (P/N 1646965 M1)

This Massey-Ferguson MF3600 Series Tractor Workshop Manual, P/N 1646965 M1, brings together Parts 1 and 2 for the listed 1988–1994 models. The publication includes Issue 1 sections dated April 1994 and later January 1995 updates, covering mechanical repair, hydraulic testing, electrical troubleshooting and electronic control systems.

PDF Navigation, Wiring Detail and Page Coverage

Linked section contents: Clickable contents entries provide access to individual chapters, but the PDF has no bookmarks. Text search is limited to cover text and navigation notes; the technical pages are not searchable. Small wire codes and connector labels in dense schematics require enlargement.

The Dynashift input-unit chapter 5M03 listed in the contents is absent. Autotronic 2 page 12F01.17 is also missing; a duplicate of the 12G01.1 parameter-section title page appears in its place.

The download contains one printable PDF with 716 total pages: 300 pages in Part 1, 414 in Part 2 and two added outer cover pages. Section dividers and the repeated page are included in this total.

Transmission Repair, Hydraulic Testing and Electronic Diagnosis

The following is a selection of the manual’s contents. Additional sections include third auxiliary spool-valve installation and front-lift position-indicator adjustment.

• Tractor splitting and chassis: Step-by-step separation procedures cover the front frame, engine, gearbox and rear axle, with supporting assembly drawings and attachment details.
• Clutches and transmissions: Repair coverage includes dry clutches, release mechanisms, Speedshift and Dynashift units, reverse shuttle, creeper gears, shafts, bearings and handbrake assemblies.
• Axles, brakes and PTO: Procedures address rear reduction units, differential locks, brake pistons, PTO clutches, front axle assemblies, steering columns and wheel alignment.
• Hydraulic systems: Circuit descriptions, pump overhaul, spool-valve service, load-sensing steering and pressure-flow tests support fault isolation across steering, lift and transmission functions.
• Electrical and electronic controls: Wiring diagrams, connector checks and fault charts cover electronic lift control, Autotronic, Autotronic 2 and Datatronic systems.
• Cab and air conditioning: Cab service information includes refrigerant-circuit operation, electrical diagrams, fault diagnosis, compressor work and clutch-clearance adjustment.

Written for Massey-Ferguson dealer service personnel, the manual also suits experienced agricultural-equipment technicians with the necessary lifting equipment, diagnostic instruments and service tools.

Mechanical Configuration and System Layout

Step-by-step procedures explain front-frame-to-engine, engine-to-gearbox and gearbox-to-rear-axle separation. Cross-sectional drawings, dimensional views and assembly illustrations support work on the engine spacer, clutch housing and transmission.

Transmission overhaul: Coverage extends to single- and dual-disc clutches, release-bearing carriers, synchronized reverse shuttle, compound reverse gearing, planetary carriers, mainshafts, output shafts and layshafts. Speedshift and Dynashift sections include component inspection, bearing adjustment and shimming; the creeper-gear assembly drawing shows its separate installation arrangement.

Rear-axle chapters address standard and double-reduction configurations, axle-bearing preload, differential locks, brake pistons, PTO clutch and shaft assemblies, and lift-cover work. Front-axle material includes the drive clutch, final reductions, differential, steering columns and wheel alignment. Front-PTO installation and repair are also included.

Fully separating the single-piston clutch-release carrier during the specified dismantling operation can damage its sealing rings. The procedure identifies this restriction before further disassembly.

Hydraulic Circuits and Fault Isolation

The hydraulic sections distinguish single-pump and two-pump layouts, then cover Rexroth auxiliary spool valves, the lift-control valve, Orbitrol load-sensing steering, pumps, brake master cylinders and servo-brake components.

Pressure and flow diagnosis: The tests compare supply performance with leakage at individual receiving components. This helps technicians distinguish a common hydraulic-supply problem from leakage at a clutch or control circuit before choosing which assembly to dismantle.

Hydraulic flow schematics and the Dynashift control-circuit diagram support these tests. Further sections cover transmission control, wet-clutch control and system decontamination. The tool references include MF 3001 pressure gauges, MF 3002 hoses and unions, and the MF 3003 flowmeter.

Electrical, Lift and Transmission Electronics

The manual maps the 12-volt negative-ground electrical system, including Thermostart and Etherstart engine-panel wiring, regional lighting circuits, fuses, wire colors and connector identification.

Electronic lift-control diagnosis combines hydraulic and electrical checks with voltage, resistance, sensor and harness tests. Lift-control wiring diagrams and Autotronic 2 system schematics provide circuit context for the troubleshooting charts.

Autotronic coverage addresses PTO, differential-lock, front-drive and transmission control. Autotronic 2 chapters add tester/programmer operation, monitoring screens, parameter settings and reprogramming. Datatronic material includes wheel-slip control, fuel-consumption equipment, radar testing and TPM-related checks.

Cab Service and Technical References

The A/C refrigerant-circuit diagram supports fault diagnosis and compressor service. The text explains how moisture can freeze at the expansion valve and obstruct refrigerant flow. R12 service precautions include ventilation and avoiding exposure to toxic decomposition products.

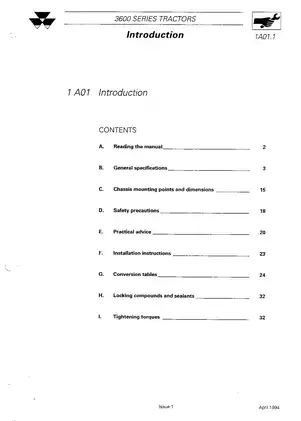

Reference material includes zinc-plated-thread tightening torques, forward and reverse speed charts, chassis mounting coordinates, and engine power, bore, stroke and displacement tables. Fastener guidance prohibits spring-type lockwashers where a specified tightening torque applies. A dedicated service-tool section includes special tools and workshop fixture drawings.

Engine and Earlier-Control Coverage Limits

The engine chapter provides general specifications, with associated coverage of the cooling fan and engine spacer. Detailed internal engine adjustments and overhaul procedures are assigned to separate publications: Perkins 1856562M1, Perkins 1000 Series 1646906M1 and Valmet 1646994M1. Those manuals are not included.

For the earlier Autotronic version, the text refers to separate publication 1646642M1. Match the tractor’s configuration and serial break to the relevant procedure.

Compressor Clearance and Hydraulic Pump Test Values

The A/C compressor clutch drive-plate clearance is 0.4–0.8 mm.

For hydraulic pump-output testing, the stated minimum flows are 51 L/min for the right-hand pump and 48 L/min for the left-hand pump, where fitted, at 2200 rpm and 100 bar with the oil at a minimum of 60°C.
