Massey Ferguson 3600 Series Tractor Workshop Manual, 2007–2015
762 Pages • Printable PDF • 104.39 MB • Download
Massey-Ferguson Models Covered & Key Technical Specifications
Models: 3615, 3625, 3635, 3645
Sub-models / Variants: 2WD (front axle CA149967, type 2RM/2WD), 4WD (front axle type 20.16: CA642064, CA642094), Footstep, Platform, Cab, Powershuttle
Transmission variants: 506 HTR — 8+8 Synchro Shuttle (CA643681), 12+12 Synchro Shuttle (CA643683), 24+24 Synchro Shuttle with Synchro Splitter (CA643687), 24+24 Synchro Shuttle with Power Splitter (CA643689), 12+12 Power Shuttle (CA643685), 24+24 Power Shuttle with Synchro Splitter (CA643691)
Model Years: 2007–2015 (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015)
-
Engine displacement: 3298 cc
-
Engine configuration: 3-cylinder, 4-stroke, direct injection diesel
-
Engine types: 3615 — 33.380 DT; 3625 — 33.379 DT; 3635 — 33.378 DT; 3645 — 33.377 DTA
-
Rated engine speed: 2150 RPM
-
Peak torque speed: 1400 RPM
-
Cooling system: Liquid cooled
-
Alternator output: 80 A
-
Brake system: Oil immersed multi disc, 2 units
-
Steering pressure: 190 bar (2755 psi)
Massey-Ferguson Manual Features & Selected Content Preview
Massey Ferguson 3600 Series — Issue 1 workshop manual for 3615, 3625, 3635, and 3645 tractors, including 2WD, 4WD, Footstep, platform, cab, and Powershuttle configurations.
PDF Search, Bookmarks, and Diagram Detail
Service text and circuit labels: Service text is searchable, but many labels within electrical and hydraulic drawings are not. Embedded bookmarks provide navigation through much of the manual, although some electrical entries open unrelated sections. Small wiring and hydraulic diagram labels require zooming.
One printable, English-language PDF contains 762 pages, including 27 intentionally blank pages and the section title and contents pages.
Drivetrain Overhaul, Hydraulic Lift Diagnosis, and Wiring
The following selected repair topics outline the manual’s coverage. Other examples include fuel-level sender replacement and platform removal and installation.
-
Engine and external equipment: Engine removal and installation, tractor separation, radiator and fan work, air-intake service, and starter and alternator replacement.
-
506 HTR transmission: Step-by-step overhaul procedures for wet clutches, synchronizers, internal controls, primary and secondary shafts, and rear final drives.
-
PTO assemblies: Wet-clutch and PTO-brake repair, input and output shaft replacement, and configuration-specific Ground Drive PTO procedures.
-
Front axles and steering: Steering-cylinder, wheel-hub, planetary-reduction, and limited-slip differential repair, with bevel-gear setup and steering adjustments.
-
Hydraulic lift and valves: Pump and auxiliary-valve removal, Powershuttle valve service, rockshaft fault diagnosis, and position- and draft-control adjustment.
-
Brakes: Actuator-cylinder service, wet-disc inspection specifications, parking-brake repair and adjustment, and brake-circuit bleeding.
-
Electrical circuits: Wiring diagrams, harness layouts, connector views, and wire-color references for engine, cab, platform, and Powershuttle systems.

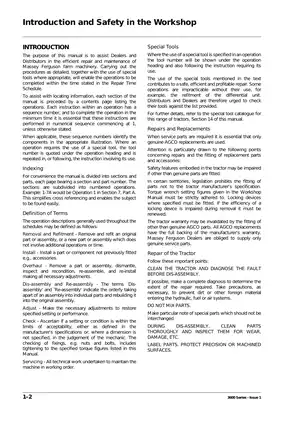

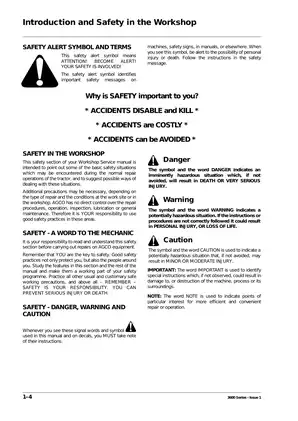

Written to assist dealers and distributors with repair and maintenance, this manual assumes workshop experience; the axle sections specify qualified technicians.
Engine Service and Tractor Separation
The engine identifications are 33.380 DT for the 3615, 33.379 DT for the 3625, 33.378 DT for the 3635, and 33.377 DTA for the 3645. Internal engine overhaul is not included. Engine-related procedures concentrate on removal, installation, separation, and external equipment.

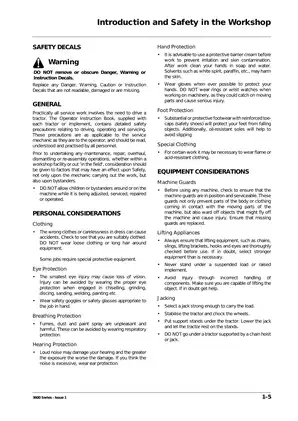

Routine maintenance tables accompany the repair sections. Use proper lifting equipment and cribbing before removing heavy drivetrain components.
Transmission Builds, Clutches, and Synchronizers
Configuration tables distinguish Synchro Shuttle, Power Shuttle, Synchro Splitter, and Power Splitter arrangements. Travel-speed tables also cover Power Hi-Lo configurations. Operation-specific applicability tables help match the repair procedure to the fitted transmission.
Clutch sections include Teflon shaft-seal replacement, clutch-pack inspection, and compressed-air function checks. The synchronizer replacement section identifies A and B assemblies: complete assemblies are interchangeable, but their individual components are not.
Input-shaft removal cautions identify puller contact that can damage the shaft. Transmission Power Flow FRW/REV drawings show how the gear paths differ between arrangements.
PTO Speeds and Ground Drive Applicability
PTO specifications distinguish 540, 540/540E, and 540/1000 versions. Ground Drive PTO is optional on the documented configurations other than the 8+8 transmission.
Exploded assembly views and applicability tables distinguish the relevant shaft, clutch, and brake arrangements before component work is selected.
Hydraulic Lift Faults and Valve Operation
The hydraulic chapter describes an open-center system with a tandem gear pump. Powershuttle valve procedures distinguish the on/off, flow-divider, and proportional valves, together with associated sensors.
Rockshaft diagnostic charts connect jerky lifting, poor lifting capacity, and loads that drift down with checks for filtration, pump supply, valve leakage, and linkage adjustment. Reaction-spring and pushrod checks extend beyond basic lift-lever adjustment.
The Circuit Diagram of Hydraulic Lifting Device accompanies explanations of neutral, delivery, and discharge operation. Hydraulic diagram 24+24 Syncro Powershuttle HI-LO traces the steering, PTO, and auxiliary-valve circuits.
Axle Setup, Contact Patterns, and Labor Planning
The axle chapters identify CA149967 2RM/2WD and the 20.16 4WD builds CA642064 and CA642094. The two 4WD builds have separate backlash and bearing-preload specifications.
Double U-joint seal and bushing replacement, toe-in and steering-stop adjustment, and testing after assembly are included. The Bevel gear marking test relates tooth-contact patterns to pinion and ring-gear setup. Pinion instructions explain how excessive tightening can damage the collapsible spacer.
Axle labor-time schedules support repair planning, with the stated times assuming that the axle has already been removed from the tractor.
Regional Wiring and Workshop References
The MF3600 engine line and V2.0 Powershuttle harness are among the named electrical drawings. The Powershuttle documentation identifies control-unit connections, forward and reverse pressure switches, solenoids, and the serial connector.
Separate North American and rest-of-world platform layouts distinguish regional circuits. Cab and air-conditioning wiring are also included.
Reference tables distinguish engine power from estimated PTO output and list fluid capacities, including cab/platform coolant differences. Component torque tables cover drivetrain and axle assemblies, chassis connections, and front-weight mounting. Battery tests and ISKRA alternator specifications support electrical checks.
Illustrated tool references include CA715358 for clutch service and CA715888/CA715887 for clutch-shaft seal installation and sizing.
Examples of Axle Backlash and Brake Wear Specifications
For the 20.16 front axle, the bevel-gear backlash specification is 0.17–0.23 mm for CA642064 and 0.24–0.32 mm for CA642094. These separate specifications accompany the differential setup procedures.
The mechanically controlled transmission brakes have a nominal brake-disc thickness of 4.6–4.7 mm and a worn-disc minimum thickness of 3.9 mm. The brake reference section distinguishes these friction-disc values from counterdisc specifications.
