Arctic Cat Prowler 650 H1 & XT 2007 Factory Service Manual

• Coverage: Covers the 2007 Arctic Cat Prowler and Prowler XT in a 183-page PDF with linked section navigation.
• Engine and transmission repair: Includes powerplant removal and installation, cylinder-head and piston service, crankcase separation, crankshaft and countershaft work, clutch and driven-pulley service, and secondary bevel-gear setup.

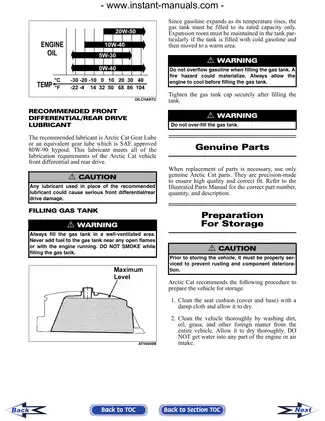

• Fuel, lubrication, and cooling: Details Keihin CVK36 carburetor overhaul, vacuum-pulse fuel-pump testing, oil-pump pressure and oil-cooler restriction checks, plus radiator, thermostat, fan, and water-pump service.
• Electrical diagnosis: Provides component tests for the CDI ignition, magneto and stator, charging and starting circuits, relays, switches, lighting, and front-drive actuator, with XT-specific speed and fuel-level sensor checks.
• Driveline and chassis work: Covers front-differential and rear-gear-case repair, shim selection, axle and CV-boot service, universal joints, hubs, hydraulic brakes, A-arms, shock absorbers, steering, and wheel alignment.

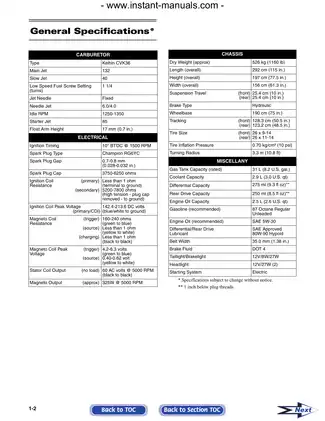

• Shop data and visual references: Supplies component torque tables, capacities, wear and clearance limits, electrical test specifications, troubleshooting charts, a carburetor schematic, an oil-flow chart, and labeled assembly views.

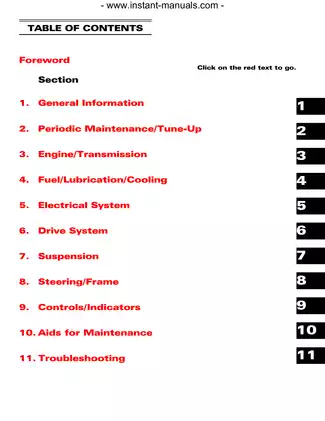

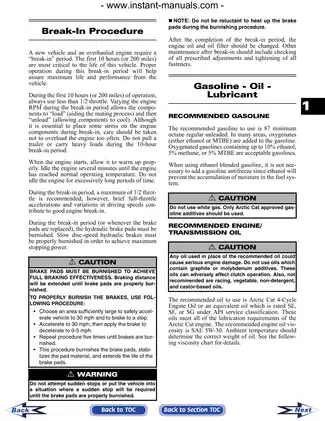

This Arctic Cat factory service manual is divided into eleven numbered sections: nine vehicle-system sections, Aids for Maintenance, and Troubleshooting. It is suited to experienced mechanics and technicians because the deeper repair work assumes shop support equipment, precision measuring tools, a press, an engine hoist, and several named factory tools.

Engine and Transmission Scope

Engine/transmission work is arranged by access level. Top-side, left-side, and right-side components can be serviced with the powerplant in the frame, while splitting the center crankcase halves requires engine/transmission removal. Internal coverage moves through valve, rocker-arm, camshaft, piston, ring, cylinder, crankshaft, countershaft, oil-pump, centrifugal-clutch, one-way-clutch, and driven-pulley inspection and assembly.

The countershaft dogs and gears are directional; installing a major component backward can damage the transmission or force another complete teardown. At the top end, incorrect cam-sprocket tab-washer placement can allow the alignment pin to escape and cause severe engine damage.

Fuel, Cooling, and Electrical Diagnosis

The Keihin CVK36 section provides removal, disassembly, cleaning, jet and float inspection, accelerator-pump diaphragm assembly, installation, and idle adjustment references. Lubrication procedures include oil-pump teardown, pump-pressure testing, and a separate oil-cooler restriction test. Cooling-system work addresses the combined radiator/oil-cooler assembly, thermostat testing, fan replacement, water-pump replacement, and refill checks for trapped air.

Electrical coverage is built around voltage, resistance, output, and peak-voltage testing. It traces ignition-coil and CDI faults, magneto and stator output, regulator/rectifier performance, starter and relay operation, dash switches, the 2WD/4WD selector, and the front-drive actuator. The manual provides component test data and connector/wire-color references, but no standalone full-vehicle wiring-diagram section.

XT-only content is identified for the differential lock, speed sensor, fuel-level sensor, speedometer/tachometer/LCD, and front bumper. The standard Prowler uses separate indicator-light guidance and calls for a suitable tachometer where the XT procedure uses its dash display.

Driveline, Chassis, and Shop References

Front-differential and rear-gear-case procedures cover input-shaft and pinion teardown, bearing and axle-seal work, shim selection, backlash and end-play checks, lock-collar thread direction, and XT differential-lock hardware. Axle chapters include inner and outer boot replacement, bearing-ring orientation, clamp placement, and joint inspection. Suspension and steering sections add shock-spring service, A-arm and ball-joint replacement, steering-knuckle bearings, rack-and-pinion replacement, and front toe adjustment. Brake coverage includes hydraulic-system bleeding, pad replacement and burnishing, parking-brake setup, and master-cylinder replacement.

Named visual aids include the Carburetor Schematic, Oil Flow Chart, countershaft exploded sequence, front-differential shim-selection views, separate Prowler/XT wheel-and-hub views, and condition/remedy troubleshooting tables. Factory-tool callouts include Driven Pulley Compressor P/N 0444-121, Oil Pressure Test Kit P/N 0644-495, 48 mm Internal Hex Socket P/N 0444-104, Pinion Gear/Shaft Removal Tool P/N 0444-127, and U-Joint Separator Tool P/N 0444-128.

Several assemblies are designated non-serviceable, including the front-drive actuator, water pump, starter motor, CDI unit, hydraulic caliper, master cylinder, and rack-and-pinion assembly. For those items, the repair scope is testing, removal, and replacement rather than internal overhaul. Parts identification is also outside this publication; the manual directs the reader to a separate Illustrated Parts Manual.

These procedures involve supported vehicles, compressed clutch and shock springs, fuel, hot coolant, corrosive brake fluid, and live ignition voltage. Review the factory warnings and use the specified lifting, support, and service equipment before beginning repair work.
