- Suzuki LT 50
- Suzuki LT 50 F
- Suzuki LT 50 G
- Suzuki LT 50 H
- Suzuki LT 50 J
- Suzuki LT 50 K
- Suzuki LT 50 L
Production year(s): 1985, 1986, 1987, 1988, 1989, 1990
1985-1990 Suzuki LT 50, LT 50 F, LT 50 G, LT 50 H, LT 50 J, LT 50 K, LT 50 L service manual
Models covered in this manual:
File specifications
File type: PDF
Language: English
Number of pages: 192
Printable: Yes
Estimated download time: 1.48 Minutes
$18.99
Pay with Bitcoin
Product Information
Table of Contents

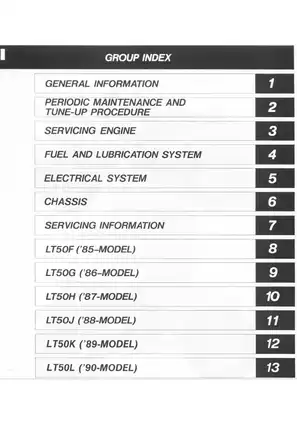

GROUP INDEX
- GENERAL INFORMATION
- PERIODIC MAINTENANCE AND TUNE-UP PROCEDURE
- SERVICING ENGINE
- FUEL AND LUBRICATION SYSTEM
- ELECTRICAL SYSTEM
- CHASSIS
- SERVICING INFORMATION
- LT50F ('85-MODEL)
- LT50G ('86-MODEL)
- LT50H ('87-MODEL)
- LT50J ('88-MODEL)
- LT50K ('89-MODEL)
- LT50L ('90-MODEL)

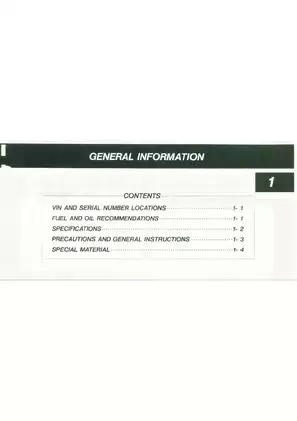

GENERAL INFORMATION

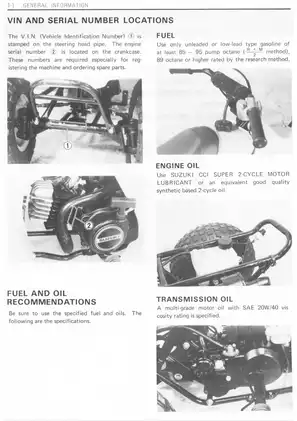

- VIN AND SERIAL NUMBER LOCATIONS ........... 1-1
- FUEL AND OIL RECOMMENDATIONS .............. 1-1
- SPECIFICATIONS ............................ 1-2
- PRECAUTIONS AND GENERAL INSTRUCTIONS ...... 1-3
- SPECIAL MATERIAL .......................... 1-4

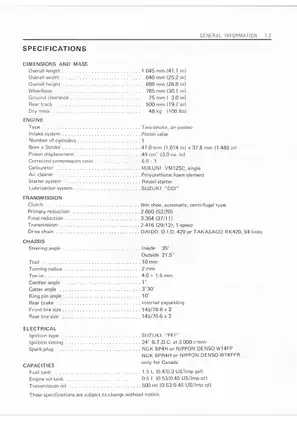

SPECIFICATIONS
- DIMENSIONS AND MASS
- Overall length: 1,045 mm (41.1 in.)
- Overall width: 580 mm (22.8 in.)
- Overall height: 665 mm (26.2 in.)
- Wheelbase: 720 mm (28.3 in.)
- Ground clearance: 95 mm (3.7 in.)
- Dry weight: 40 kg (88 lbs)
- ENGINE
- Type: Air-cooled, 2-stroke, single cylinder
- Bore x stroke: 39.0 x 41.8 mm (1.54 x 1.64 in.)
- Piston displacement: 49 cc (3.0 cu in.)
- Compression ratio: 7.0:1
- Carburetor: MIKUNI VM13SC, single
- Starting system: Recoil starter
- Lubrication: REIJU
- TRANSMISSION
- Clutch: Wet, automatic, centrifugal type
- Transmission: Single speed
- Gear ratio: 2.250 (27/12)
- Final reduction ratio: 3.846 (50/13)
- CHASSIS
- Front tire: 145/70-6
- Rear tire: 145/70-6
- Turning radius: 2.0 m (6.5 ft)
- Trail: 10 mm (0.39 in.)
- Front brake: Drum
- Rear brake: Drum
- Suspension: Front: Independent, rear: Swingarm
- ELECTRICAL
- Ignition type: SUZUKI "PEI"
- Spark plug: NGK BPR5HS or NIPPON DENSO W16FP
- Generator: Flywheel magneto
- Battery: 6V, 4.5Ah
- CAPACITIES
- Fuel tank: 2.0 L (0.53/0.44 US/Imp. gal.)
- Oil capacity: 0.95 L (1.01/0.84 US/Imp. qt.)
