1985–2001 Suzuki LT50, LT50F, LT50G, LT50H, LT50J, LT50K, LT50L, and LT50X/Y/K1 Service Manual OEM (P/N 99500-20128-03E)

• 138-page Suzuki factory service manual PDF, Part No. 99500-20128-03E, with model sections for the LT50F (1985), LT50G (1986), LT50H (1987), LT50J (1988), LT50K (1989), LT50L (1990), and LT50X/Y/K1 (1999–2001).
• Engine repair coverage includes removal and installation, complete disassembly and reassembly, crankshaft and connecting-rod inspection, cylinder and piston service, automatic centrifugal clutch testing, and recoil-starter repair.
• Fuel and lubrication procedures cover the vacuum-operated fuel cock, Mikuni VM12SC carburetor disassembly and adjustment, mixture diagnosis, Suzuki CCI oil-pump overhaul, air bleeding, and pump-output testing.
• Electrical troubleshooting explains flywheel-magneto and CDI/ignition-coil operation, spark and resistance tests, engine-stop switch checks, wiring diagrams, and wire-and-cable routing.
• Chassis repair sections detail front and rear wheel service, hub and axle bearings, steering shaft and tie rods, toe-in adjustment, rear axle and sprocket work, and drum-brake inspection and reassembly.
• Factory reference material includes maintenance schedules, symptom/cause/remedy troubleshooting charts, special-tool listings, component torque specifications, capacities, adjustment data, electrical test values, wear limits, and exploded assembly views.

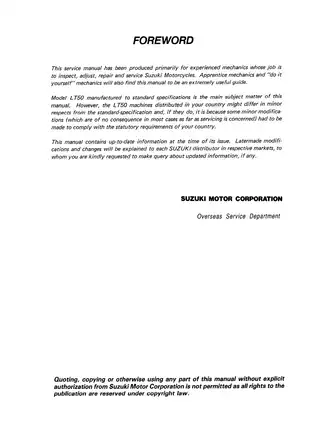

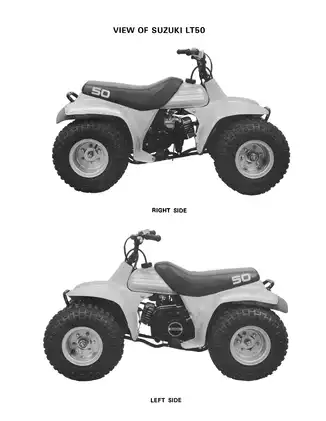

This is Suzuki’s workshop publication for the standard-specification LT50, rather than a basic owner’s manual. Suzuki produced it primarily for experienced mechanics and also identifies apprentice and do-it-yourself mechanics as users. The internal-engine measurements, special-tool operations, and running tests nevertheless assume sound mechanical knowledge and suitable shop equipment.

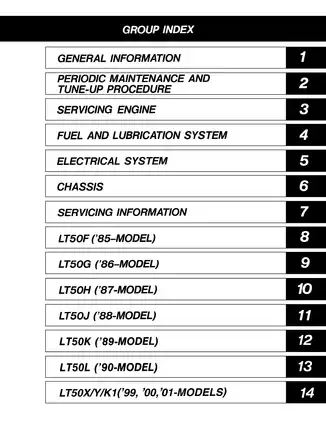

Model Coverage and Manual Structure

The main chapters contain the common inspection and repair procedures. Separate supplements provide revised specifications and service data for the listed model codes and years. These supplements are meant to be used with the base repair chapters; they are not separate teardown manuals for every model year.

The LT50K section also documents its exhaust-flange power-reduction plate. The LT50L and LT50X/Y/K1 sections carry forward later specification and service-data changes. Suzuki notes that minor market-specific differences may exist between standard-specification machines and units modified to meet local regulations.

Engine and Drivetrain Work

The engine chapter follows the unit from removal through final installation and adjustment. It covers crankcase separation, crankshaft removal and rebuilding data, bearing and oil-seal inspection, connecting-rod checks, cylinder-head flatness, cylinder wear, piston-to-cylinder condition, piston-pin wear, and piston-ring inspection.

Automatic centrifugal clutch service goes beyond simple disassembly. The manual provides engagement and lock-up tests, followed by checks of the clutch shoes, springs, and drum when results fall outside specification. Reassembly information covers crankcase sealing, bearing and oil-seal installation, magneto rotor fitting, piston and ring orientation, lubrication points, and recoil-starter repair.

Carburetion, Oil Injection, and Ignition

The Mikuni VM12SC section includes the factory setting table, float-height adjustment, needle-valve inspection, jet and passage cleaning, and fuel-mixture diagnosis based on operating range. It explains which metering components influence low-, mid-, and high-throttle operation.

Suzuki CCI lubrication coverage includes oil-pump removal, internal inspection, reassembly, check-valve and oil-passage checks, air bleeding, and a measured discharge test using the specified CCI oil gauge. Electrical procedures cover the magneto, combined CDI/ignition-coil unit, spark-output testing, resistance checks, and stop-switch circuits.

Chassis, Diagrams, and Troubleshooting

Chassis repair procedures cover wheel-hub bearing removal and installation, steering and tie-rod inspection, toe-in adjustment, rear-axle removal, brake-drum and lining inspection, and final drive-chain and brake adjustment. Troubleshooting tables address hard starting, low power, rough running, overheating, abnormal engine noise, sudden shutdown, poor braking, clutch slip or drag, and unstable steering.

Visual references include the ignition-system circuit, main wiring diagram, wire-and-cable routing layouts, crankshaft and clutch exploded views, the oil-pump assembly, steering and front-wheel geometry, and the rear-wheel and brake assembly.

Named factory tools include the conrod stopper 09910-20115, crankcase separating tool 09920-13120, rotor remover shaft 09930-30102, attachment 09930-30170, rotor holder 09930-40113, and CCI oil gauge 09900-21602. The manual also identifies several factory tools that were not available in the U.S.A.

The repair cautions are component-specific. Clearing carburetor jets or passages with wire can damage the metering parts, while excess grease on the brake camshaft can contaminate the linings and cause brake slippage. The clutch lock-up and oil-pump tests involve a running engine and moving drivetrain parts, so they require a secure shop setup and experienced judgment.
