Honda Models Covered & Key Technical Specifications

Models & Model Codes: TRX680FA (TRX680FA6), TRX680FGA

Model Years: 2006–2009 (2006, 2007, 2008, 2009)


  • Engine displacement: 674.9 cm3 (41.19 cu-in)

  • Engine type: Single cylinder, longitudinally installed, OHV

  • Cylinder arrangement: Single cylinder

  • Bore and stroke: 102 x 82.6 mm

  • Compression ratio: 9.2:1

  • Transmission type: Automatic (torque converter + 3-speed drive system and reverse)

  • Fuel system: Programmed Fuel Injection (PGM-FI)

  • Coolant capacity (radiator and engine): 2.0 liters (2.1 US qt)

  • Engine oil capacity (after draining): 2.7 liters (2.9 US qt)

  • Front tire size: AT25x8R12

Honda Manual Features & Selected Content Preview

This Honda Motor Co., Ltd. service publication covers the 2006–2009 Honda TRX680FA and TRX680FGA ATVs. Issued in November 2005, it documents maintenance, fault diagnosis, and mechanical repair for the PGM-FI, dry-sump engine and selectable four-wheel-drive platform.

PDF Search, Diagram Detail, and File Contents

Search and diagram limitations: An embedded OCR text layer supports searches throughout the main service chapters, but some illustration labels are not searchable. There are no embedded PDF bookmarks. System diagrams are generally readable when enlarged; some small PCM pin and wire-code labels in the full wiring diagram remain blurred at higher magnification.

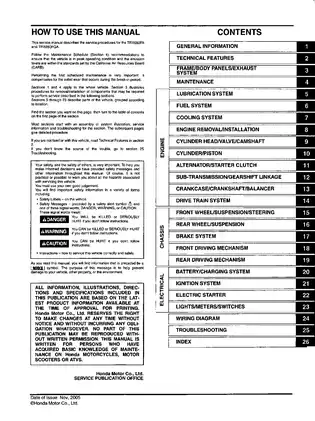

The ZIP download contains one 567-page printable PDF, including one cover page, three introductory pages, and a three-page index. A separate text file provides parts-catalog links; it is not an additional manual.


PGM-FI, Automatic Transmission, and ATV Repair Coverage

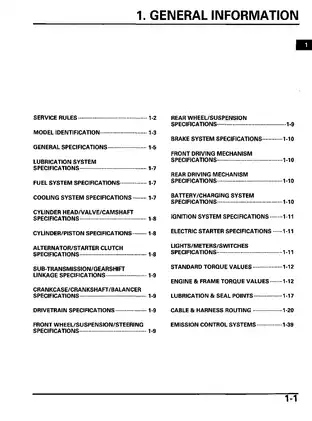

The following highlights are a selection of the contents, rather than a complete table of contents. Other topics include recoil-starter service and tire puncture repair.

  • PGM-FI diagnosis: HDS and SCS fault retrieval, MIL and DTC troubleshooting, fuel-pressure testing, sensor checks, and throttle-body and injector service.

  • Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, valve-guide replacement, seat refacing, camshaft timing, piston inspection, and crankcase assembly.

  • Automatic transmission: Hydraulic pressure tests, shift-valve-body and solenoid service, torque-converter inspection, shift-clutch repair, and separate D-N-R sub-transmission work.

  • Front and rear drive units: Drive-shaft and CV-joint service, differential and final-drive disassembly, backlash measurement, tooth-contact checks, shim selection, and bearing replacement.

  • Brakes and chassis: Body and exhaust removal, suspension and steering service, wheel-hub and knuckle repairs, wheel alignment, master-cylinder and caliper work, and brake bleeding.

  • Electrical troubleshooting: Charging-system tests, ignition checks, starter-circuit diagnosis, starter-motor overhaul, combination-meter inspection, GPS fault tracing, and wiring diagrams.

  • Scheduled maintenance: Fuel and throttle checks, air-cleaner and spark-plug service, valve-clearance inspection, lubricant and coolant changes, drive-shaft boots, spark arrester, and chassis inspections.

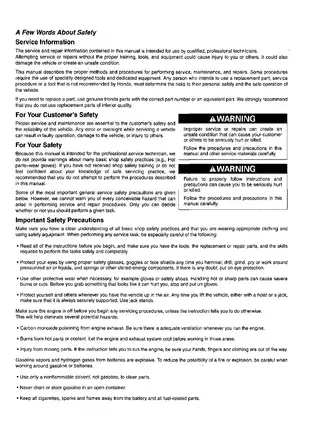

The manual is intended for qualified professional technicians with service training, appropriate tools, and workshop equipment.

PGM-FI and PCM Diagnosis

The PCM combines engine, transmission, and selectable-4WD control. AUTO and ESP modes, gear-position inputs, drive-mode and gearshift switches, shift solenoids, the clutch-pressure-control solenoid, and the front final clutch are covered.

HDS functions include DTC retrieval and clearing, freeze data, current data, and PCM reset. Manual MIL blink-code retrieval is also described, although it displays main codes rather than subcodes. When engine-management and drivetrain faults occur together, the diagnostic guidance gives PGM-FI faults priority.

Fuel-system procedures address the sub-fuel-tank pump, throttle body, injector, ECT sensor, bank-angle sensor, PCM, and IACV. Connector and relay tests support fuel-supply and idle-speed diagnosis. The throttle body is factory preset; the manual warns that disturbing its white-painted fasteners can cause a malfunction.

Transmission Tests and Internal Repair

Hydraulic line-pressure and individual shift-clutch tests are paired with a troubleshooting chart linking abnormal readings to likely faults in the valve body, solenoids, clutches, feed pipes, torque converter, or oil pump.

The repair procedures distinguish work that can be done with the engine installed from work requiring removal and crankcase separation. That distinction supports repair planning: the torque converter and first shift clutch can be serviced in the frame, while mainshaft and second/third shift-clutch service require the cases to be split.

Internal coverage includes the emergency valve, hydraulic clutch assemblies, front and rear crankcase covers, selector linkage, and cable adjustment. A faulty torque converter is replaced as an assembly.

Engine, Lubrication, and Cooling

Compression testing and top-end procedures extend through inspection and reassembly. Lower-engine material covers the connecting-rod small end, crankshaft and balancer checks, crankcase bearings, and case assembly. Alternator and starter-clutch service are documented separately.

The lubrication and cooling chapters cover oil-pressure testing, oil-pump overhaul, oil-cooler service, coolant replacement and bleeding, thermostat testing, radiator and fan service, and water-pump repair.

Drive Units, Brakes, and Model-Specific Equipment

Front and rear drive-unit procedures include oil-seal replacement and assembly checks. The differential instructions warn that an overly thick ring-gear shim can lock the gears during cover tightening; careless drive-shaft joint or stopper-ring handling can also damage oil seals.

Chassis procedures extend to steering-shaft and tie-rod service, suspension pivots, brake pads and discs, and hydraulic and parking-brake components.

TRX680FGA material includes separate combination-meter information and GPS receiver troubleshooting for communication errors and prolonged startup. Australia-type horn circuits are identified. Identification pages illustrate the VIN, engine serial number, throttle-body identification, color code, and regional labels.

Schematics, Specifications, and Workshop References

Visual references include the PGM-FI system diagram, drivetrain control diagram, automatic-transmission hydraulic circuits, connector and harness-routing views, differential tooth-contact illustrations, and wiring drawing 0030Z-HN8-A600.

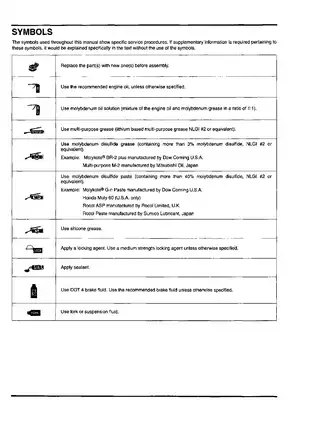

Assembly illustrations accompany component-specific torque tables, lubricant and capacity data, service limits, electrical test values, and lubrication/seal-point charts. Factory-tool references include SCS connector 070PZ-ZY30100, pressure-gauge set 07406-0020005, valve spring compressor 07757-0010000, and rear-drive pinion holder 07SMB-HM70200.

Fuel-pressure tests, brake bleeding, transmission-pressure checks, running-engine diagnosis, and raised-vehicle work require the manual’s precautions for pressurized fluids, ventilation, ignition sources, and secure vehicle support.

Fuel-Pressure and Shift-Clutch Specification Preview

The fuel-pressure test specifies 284–304 kPa (41–44 psi) with the engine idling. Its diagnostic guidance distinguishes excessive pressure from low-pressure conditions involving fuel delivery, hoses, the filter, or the pump assembly.

For the assembled transmission shift clutches, the initial clearance between the end plate and top disc is 0.7–0.9 mm. The clutch chapter includes measurement guidance and selective end-plate thickness tables for restoring the specified clearance.
