Honda CR125R 1984–1985 Workshop Manual

Honda’s shop manual covers 1984–1985 CR125R motocross competition motorcycles, with model-year-specific service information for engine, chassis, and ignition work.

PDF Search, Bookmarks and Page Count

Search and diagram detail: OCR text search works across most text pages, but the cover and safety notice are not searchable, and recognition of some diagram labels is incomplete. Embedded bookmarks provide chapter navigation and a direct link to the wiring diagram. Small wiring labels require zooming.

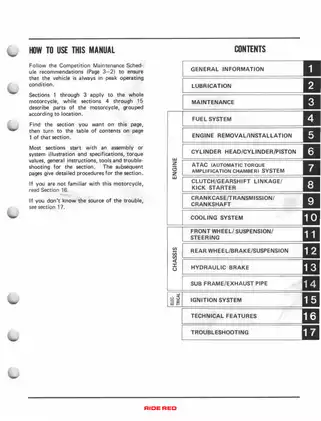

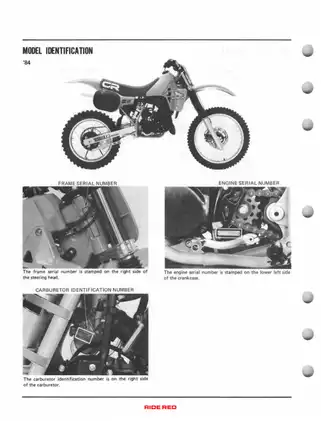

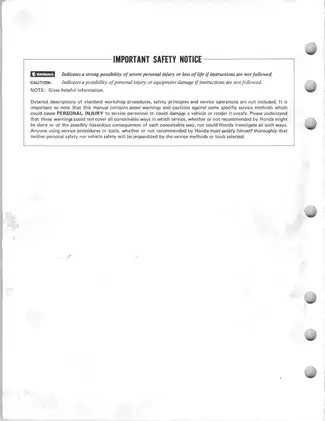

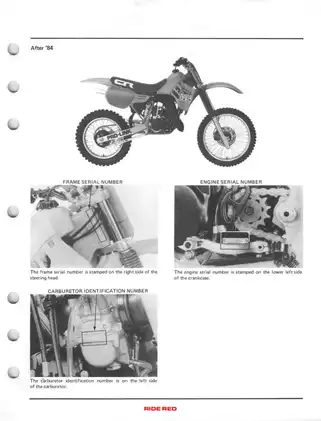

One printable English PDF contains 255 pages, including the cover, safety notice, contents page, two model-identification pages, and eight memo pages.

Engine, ATAC and Chassis Service

The following selected contents outline the main repair areas. Further topics include wheel rebuilding, steering-stem bearing replacement, and subframe and exhaust removal.

• Engine and drivetrain: Cylinder and piston inspection, crankcase separation, transmission service, crankshaft bearing replacement, clutch repair, and kick starter disassembly and inspection.

• ATAC system: Governor disassembly, rack and cam inspection, exhaust manifold service, and butterfly valve adjustment.

• Fuel system: Piston-valve carburetor overhaul, float-level adjustment, reed valve inspection, and tuning for racing conditions.

• Cooling system: Radiator cap and system pressure testing, coolant replacement and air bleeding, and water pump seal and bearing replacement.

• Suspension: Step-by-step front fork and Pro-Link shock overhaul procedures, plus swingarm pivot and suspension linkage bearing service.

• Brakes: Hydraulic front brake bleeding, pad and disc inspection, master cylinder and caliper repair, and rear drum brake service.

• Ignition diagnosis: Stator and coil tests, ignition timing checks, engine stop button testing, and a wiring diagram.

This manual is suited to mechanics already familiar with motorcycle repair; detailed explanations of standard workshop procedures are not included.

Model-Year Differences and Service Data

Cylinder, piston, and clutch spring specifications distinguish the two model years. Cooling coverage separates the earlier mechanical water pump seal from the later water seal design.

Transmission oil capacities, spark plug recommendations, and engine and chassis torque tables support servicing, including cylinder head and flywheel fasteners. Coolant capacities distinguish routine changes from filling after disassembly. The Competition Maintenance Schedule uses running hours and race counts.

Engine Service and ATAC

Service access: Engine removal is required for the crankshaft, transmission, shift drum, and shift forks. Cylinder head, wet multi-plate clutch, and external shift linkage service can be performed with the engine installed.

The ATAC (Automatic Torque Amplification Chamber) system operating views in Technical Features explain the governor linkage and valve position. Its adjusting screw restores the valve setting after service.

Cylinder repair cautions: Reboring notes explain how an incorrectly shaped exhaust port bridge can cause piston seizure. Cylinder installation cautions identify the risk of catching and breaking piston rings on a port.

Special tool references include crankcase puller 07937-4300000 and crank assembly kit 07965-1660100.

Carburetor Calibration

The 1984 PE35D and 1985 PJ01A piston-valve carburetors have separate settings and assembly instructions; the latter also has a combined choke/idle-speed control.

For trackside tuning, altitude and temperature correction factors accompany jetting recommendations. The Carburetor Operation chart shows which circuits influence each throttle range, while the Jet Needle/Air Screw Chart connects correction factors with adjustment choices.

These baselines apply to an unmodified engine using the specified premix. Modified engines or different mixtures require corresponding calibration changes.

Suspension Repair and Setup Limits

Shock service includes oil replacement, air bleeding, and reservoir work. The 1985 damper rod procedures extend to seal holder, piston, and damping valve disassembly; the 1984 instructions call for damper rod replacement if its seal leaks.

The shop manual supplies standard spring preload data and handling troubleshooting. It directs detailed adjustment for rider weight and riding conditions to the separate Owner’s Manual, which is not included in this PDF. Shock service requires a proper nitrogen charging system.

Always observe standard shop safety protocols and use properly calibrated torque wrenches on engine and suspension fasteners.

Electrical Tests and Fault Tracing

The Engine Lacks Power troubleshooting chart connects checks with likely causes in the fuel, ignition, compression, and drivetrain systems, helping narrow down the source of a performance problem before disassembly. Other charts address hard starting, faults at low and high engine speeds, and poor handling.

Separate CDI resistance tables apply to each model year. Their readings are specific to the listed Sanwa 07308-0020000 or Kowa TH-5H testers; the manual warns that another tester can give false readings. Cable and Harness Routing drawings support reassembly.

Examples of Piston Ring and Clutch Wear Data

For piston ring inspection on the covered models, the standard end gap is 0.15–0.35 mm, with a 0.45 mm service limit. These figures accompany the ring and cylinder inspection procedures.

Clutch inspection data lists disc thickness at 2.92–3.08 mm standard, with a 2.85 mm service limit.
