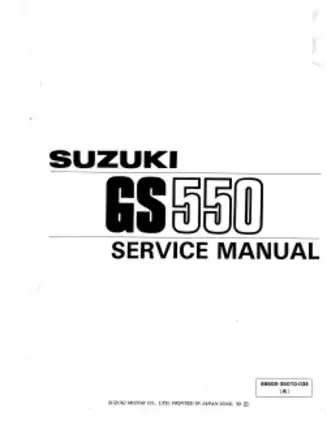

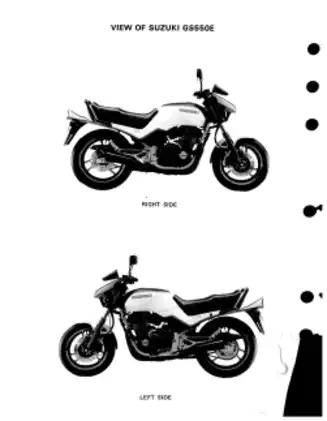

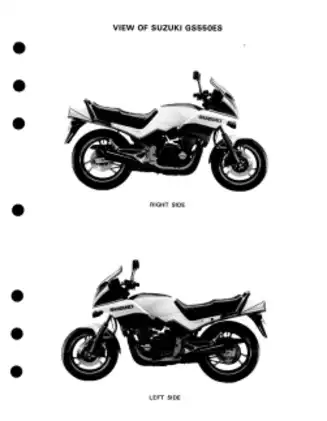

1977–1984 Suzuki GS550E, GS550ES & GS550L Service Manual (P/N 99500-35010-03E)

This Suzuki service manual covers the 1977–1984 GS550 family, including the GS550E, GS550ES, and GS550L. Publication P/N 99500-35010-03E, printed in June 1983, uses main E/ES chapters and a dedicated GS550L section that identifies variant-specific service differences.

• Engine repair: Engine removal and reinstallation, crankcase separation, cylinder-head servicing, camshaft timing, piston inspection, and crankshaft bearing selection.

• Clutch and transmission: Wet multi-plate clutch inspection and assembly, starter-clutch service, countershaft and driveshaft disassembly, and gearshift mechanism inspection.

• Carburetion and lubrication: Mikuni carburetor disassembly, float and fuel-level checks, carburetor synchronization, oil-pressure testing, and lubrication-system diagrams.

• Chassis and brakes: Anti-dive fork service, steering-stem bearings, full-floating suspension, caliper and master-cylinder repair, brake bleeding, and GS550L rear drum-brake service.

• Electrical diagnosis: Starter-motor inspection and reassembly, transistorized ignition tests, AC generator checks, regulator/rectifier testing, and model-specific wiring diagrams.

• Maintenance and service data: Periodic maintenance schedules, valve adjustments, spark plug servicing, drive-chain adjustment, troubleshooting charts, torque tables, and component wear limits.

Written primarily for experienced Suzuki mechanics, the manual also serves apprentice and do-it-yourself mechanics who can work with the specified tools and inspection equipment.

TSCC Engine, Clutch and Transmission Repair

The engine material explains Suzuki’s TSCC (Twin Swirl Combustion Chamber) design and distinguishes components removable with the engine installed from work requiring engine removal. Cylinder-head coverage extends to valve-guide replacement, valve-seat conditioning, rocker-arm inspection, and cam-chain tensioner servicing.

Piston-ring inspection, connecting-rod thrust-clearance checks, and color-coded bearing-selection tables support internal engine assessment. The Plastigauge procedures address crankshaft and connecting-rod movement that can invalidate clearance measurements.

Assembly notes warn that uneven camshaft-holder loading can damage the cylinder head or journal-holder thrust surfaces. Valve-timing illustrations and holder identification marks accompany the camshaft installation material.

Transmission service includes gear and shift-fork inspection, shaft reassembly, and shim selection. The clutch instructions identify the sleeve-hub holder, tool 09920-53710, and illustrate the spring-washer and plate arrangements.

Mikuni Carburetors, Oil Circulation and Emissions

The BSW30SS carburetor section explains diaphragm and piston operation, along with the slow, main, starter, and float systems. Fuel-level inspection and synchronization procedures identify the carburetor balancer, tool 09913-13121.

Separate E/ES and L carburetor specifications help match replacement jets to the correct assembly. The emissions material also explains the special mixture-control components and factory-set pilot screws.

Lubrication coverage traces the oil cooler, pressure regulator, sump filter, and internal oil supply through a lubrication-system chart. Oil-pressure testing and pump replacement information accompany these references. Blowby gas recycling and emission-related malfunction lists connect carburetion, ignition, and engine condition with running problems.

Anti-Dive Forks, Full-Floating Suspension and Brakes

The E/ES fork section includes anti-dive cross-sectional views, modulator plunger and valve inspection, and fork reassembly information. Its bleeding notes address air trapped in the anti-dive hoses or modulator, helping explain a persistently spongy lever after routine bleeding.

Brake coverage distinguishes the E/ES twin front discs and rear disc from the L’s single front disc and rear drum. The dedicated L section provides its front-fork procedures, steering-stem details, and rear brake inspection criteria.

Full-floating suspension service covers linkage bearings and rear-unit removal. The rear shock absorber is nonserviceable apart from spherical ball-bearing replacement; the manual does not present an internal shock overhaul procedure.

This documentation serves as a technical reference; consult a qualified professional before performing brake or suspension repairs.

Ignition, Charging and Wiring References

Electrical inspection covers the signal generator, ignitor, ignition coils, starter relay, and charging system. Component test tables and switch-continuity charts support fault isolation before replacement parts are selected.

Ignition timing control block diagrams and advance-angle characteristic charts explain electronic advance. Separate E, ES, and L wiring diagrams are supported by wire, cable, and hose-routing illustrations.

A Sample of Valve and Camshaft Inspection Data

These cylinder-head values are a small selection of the inspection specifications in the manual.

The intake valve-stem standard diameter is 4.960–4.975 mm, presented alongside valve-guide clearance inspection information.

For both intake and exhaust camshaft journals, the oil-clearance service limit is 0.15 mm. The accompanying inspection material uses Plastigauge and separate shaft and holder measurements to assess wear.

Page Bookmarks, Text Search and Wiring Detail

Search and diagram access: PDF text search is unavailable. Embedded bookmarks cover the file page by page, using image filenames rather than chapter titles. Small wiring labels require zooming; lettering in the additional color diagrams is visibly coarser.

One printable 352-page PDF contains 343 pages of the Suzuki service publication, including six blank pages, plus one introductory photo page and eight additional GS550E/GS550L color wiring-diagram pages. The additional diagrams include repeated layouts in different sizes and orientations. All of these pages are included in the stated total.
