Suzuki VZ800 Marauder V/W/X/Y/K1/K2/K3 1997–2003 OEM Service Manual (P/N 99500-38034-03E)

• 402-page PDF package — a 314-page Suzuki factory service manual, an 87-page illustrated parts catalog, and a 1-page service-manual cover. The service publication is P/N 99500-38034-03E, identified as the 5th edition from February 2002; the 1st edition is dated October 1996.
• Factory repair coverage spans the 1997-2002 VZ800 V, W, X, Y, K1, and K2 models. The companion parts catalog extends component identification through the 2003 K3. K3-specific service procedures are not included.
• Covers engine removal and reinstallation, complete teardown and reassembly, cylinder heads and valves, camshafts and cam-chain timing, pistons, connecting rods, crankshaft, clutch, starter clutch, generator, oil pump, and the five-speed transmission and shift mechanism.
• Details fuel-pump, tank, valve, filter, and dual-carburetor work, including carburetor disassembly and cleaning, diaphragm and float systems, fuel-level and float-height checks, throttle-position-switch inspection, cable setup, and carburetor synchronization.
• Includes radiator and hose service, cooling-fan and thermo-switch testing, water-pump disassembly and reassembly, front-disc and rear-drum brake repair, wheel and bearing inspection, fork service, steering adjustment, and swingarm and rear-suspension work.
• Provides charging, starting, ignition, side-stand interlock, instrument, lighting, battery, and switch diagnostics, backed by wiring diagrams, routing drawings, troubleshooting charts, special-tool listings, torque tables, wear limits, clearances, capacities, and electrical test data.

Model Coverage and Document Scope

The factory workshop manual is built around the 805cc liquid-cooled, OHC, 45-degree V-twin, its five-speed transmission, and chain final drive. The main repair chapters apply to the 1997 VZ800V. A dedicated VZ800W supplement records 1998-specific material, including specification and service-data pages, the turn-signal/side-stand relay, a wiring diagram, and wire-harness routing. The X/Y/K1/K2 section covers 1999-2002 changes, with additional material for idle adjustment, the exhaust and muffler, engine side-box setup, and California evaporative-emission equipment.

These model-year sections are supplements rather than repeated full manuals. When a procedure did not change, they direct the technician back to the earlier V- and W-model chapters.

The illustrated parts catalog adds 1997-2003 V/W/X/Y/K1/K2/K3 exploded views and Suzuki part-number references. It separates year-specific cowling, frame, frame-cover, fuel-tank, fender, muffler, and related assemblies. The Y-model fuel-tank listings are split at frame-number 103782/103783, helping distinguish parts around that production change. K3 appears in the parts material for identification and ordering, but not in the service manual’s factory repair supplements.

Repair and Diagnostic Depth

The engine section distinguishes components that can be removed with the engine in the frame from work requiring powerplant removal, then follows the assembly through disassembly, inspection, bearing selection, and reassembly. Coverage includes rocker arms, valve guides and seats, cam-chain tensioners, cylinders and pistons, connecting rods and crankshaft, clutch release parts, generator and starter clutch, transmission shafts and gears, shift forks, and oil jets and nozzles.

Fuel-system material explains the slow, main, starter, transient-enrichment, diaphragm/piston, and float circuits before moving into repair work. The manual covers fuel-pump testing, fuel-valve and filter service, carburetor cleaning and inspection, fuel-level and float adjustment, throttle-position-switch checks, cable adjustment, and balancing the two carburetors. Lubrication coverage includes oil-pressure testing, oil-pump and filter service, sump-filter inspection, and an engine lubrication system chart.

Chassis and electrical chapters provide shop-level procedures for the front hydraulic brake, rear drum brake, wheels, fork, steering head, swingarm, suspension, charging system, starter motor, ignition, side-stand/ignition interlock, instruments, lamps, switches, and battery. Fault tables address engine, carburetor, radiator, chassis, brake, electrical, and battery complaints.

Factory Drawings, Tools, and Reference Data

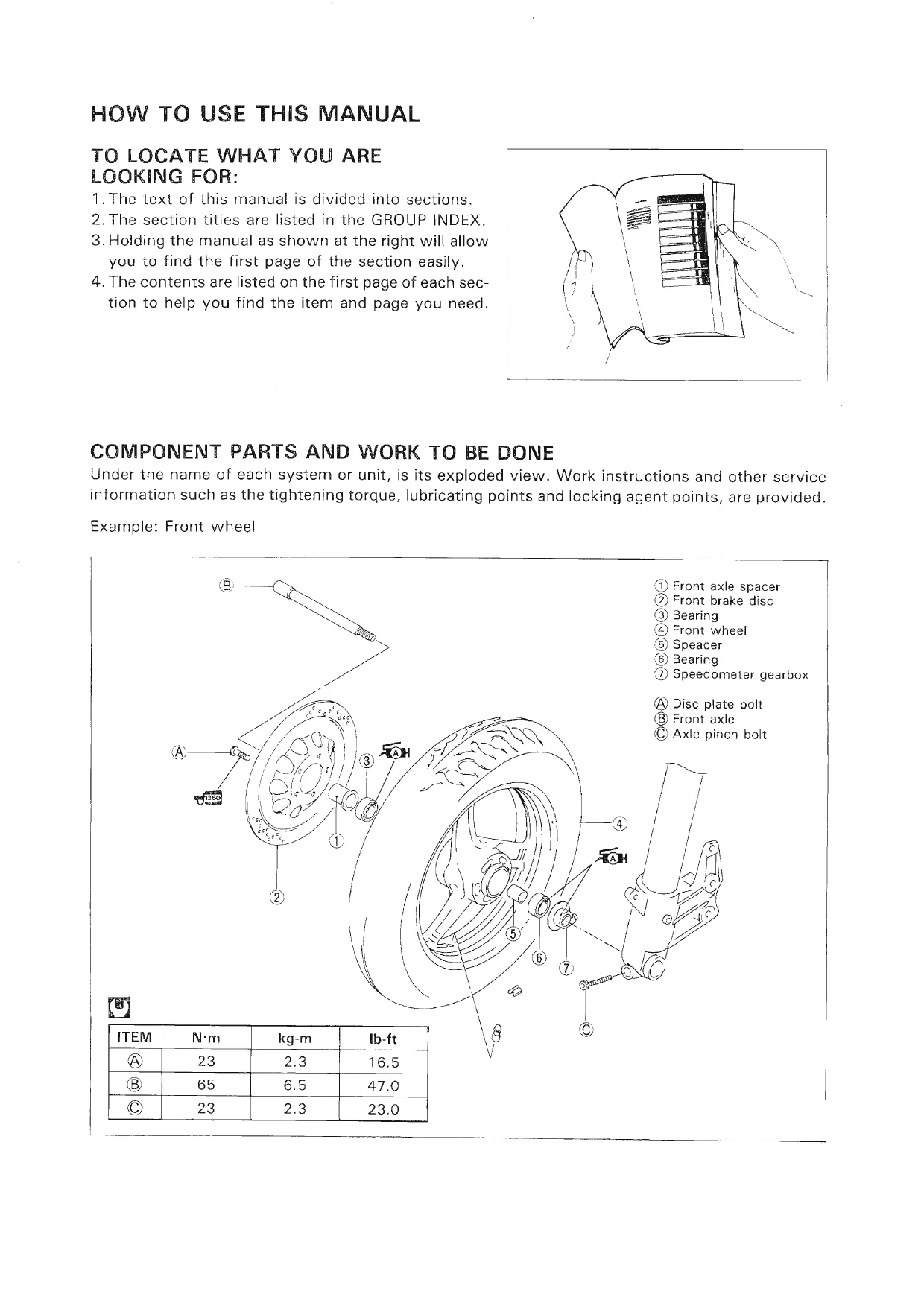

Useful illustrations include the front-wheel exploded assembly, cooling-system construction view, engine lubrication system chart, PAIR air-supply diagram, model-specific wiring diagrams, and wire-harness, cable, fuel-hose, cooling-hose, and brake-hose routing views. The later-model emissions section has separate hose-routing drawings labeled from frame numbers JS1VS53A-X2101115 and JS1VS53A-X2102685.

Representative Suzuki tool callouts include carburetor balancer 09913-13121, oil-pressure gauge and adapter 09915-74510 / 09915-74531, crankcase separating tool 09920-13120, clutch-sleeve hub holder 09920-53740, rotor remover and holder 09930-34970 / 09930-40113, and fork-oil level gauge 09943-74111. The reference section consolidates tightening torques, component clearances, inspection limits, carburetor data, tire pressures, and electrical test specifications.

The manual flags job-specific repair traps. The primary-drive gear bolt has a left-hand thread; treating it like a conventional fastener can damage the assembly. In the carburetor chapter, applying compressed air before removing the diaphragm can damage the diaphragm.

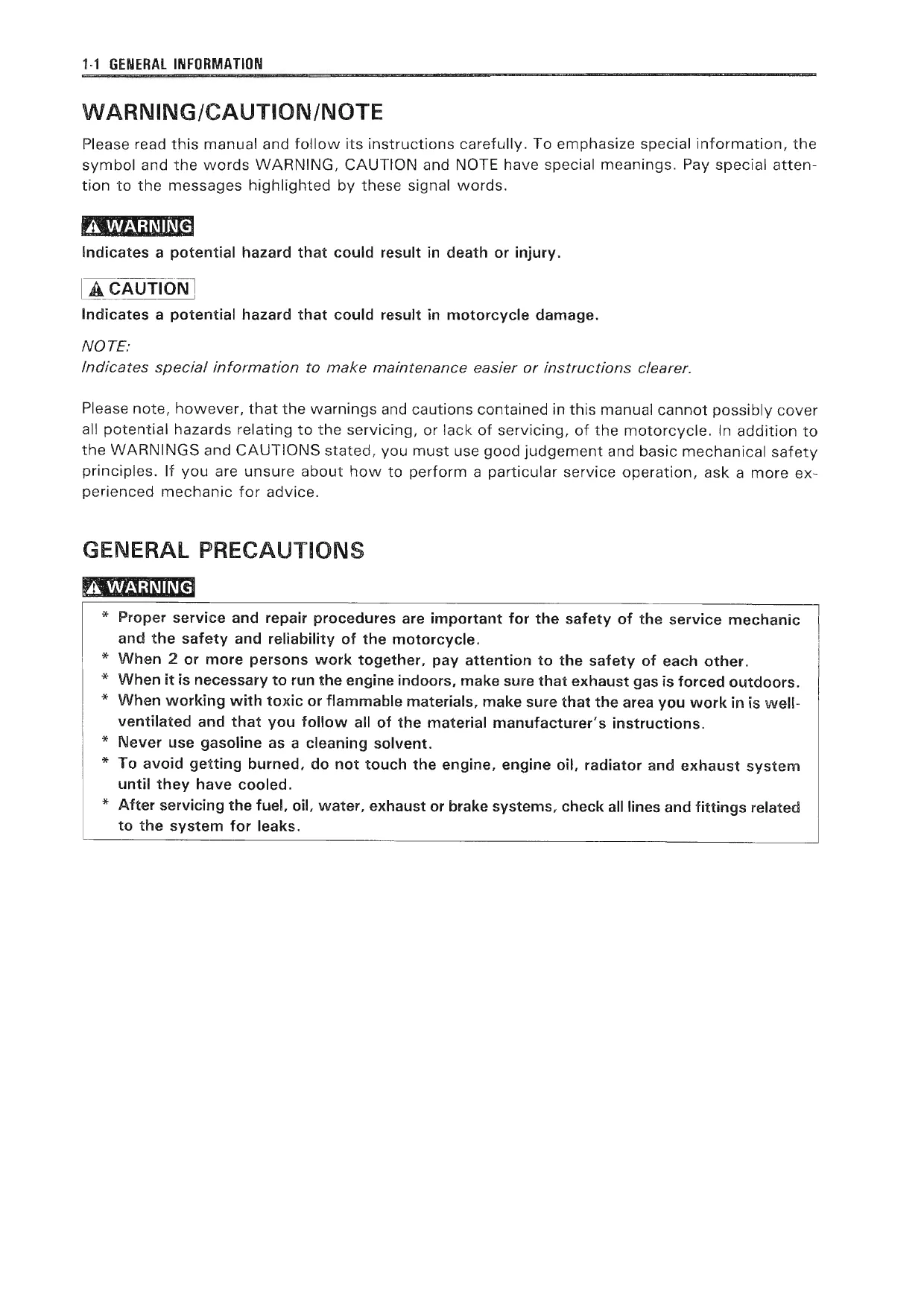

This is a factory workshop publication, not an owner’s handbook, and it assumes normal shop knowledge plus the proper measuring and service equipment. Support the motorcycle securely before engine, wheel, fork, steering, or suspension work, and isolate the fuel and electrical systems before deeper repair operations.
