Kawasaki Models Covered & Key Technical Specifications

Model & Model Code: KLR250 (KL250-D2)

Sub-models / Variants: U.S. Model, Canadian Model, European Model, Swiss Model, South African Model, West German Model, California Model, Australian Model

Model Years: 1984–2005 (1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)

Beginning Frame Numbers: KL250-D2 U.S. and Canadian Models: JKAKLMD1*FA000001; other KL250-D2 models: KL250D-000001.

Included Base Manual: KLR600 (KL600-A1); beginning frame numbers: JKAKL4A1*EA000001 for U.S. and Canadian Models; KL600A-000001 for other models.

Frame Number Note: * represents a digit that varies by machine.


  • Engine: 4-stroke, DOHC, 4-valve, 1-cylinder, liquid-cooled

  • Displacement: 249 mL

  • Bore and Stroke: 74.0 mm x 58.0 mm

  • Compression Ratio: 11.0

  • Transmission: 6-speed, constant mesh, return shift

  • Horsepower: 20.6 kW (28 PS) @ 9,000 r/min; West German Model: 12.5 kW (17 PS) @ 9,000 r/min; Swiss Model: 12.5 kW (17 PS) @ 7,000 r/min

  • Maximum Torque: 23 N-m (16.5 ft-lb) @ 8,000 r/min; U.S. and California Models: 23 N-m (16.5 ft-lb) @ 7,500 r/min; West German Model: 19 N-m (13.5 ft-lb) @ 4,000 r/min

  • Lubrication: Forced lubrication (wet sump), 1.5 L capacity

  • Electrical System: 12V 4 Ah battery, 12V 60/55W halogen headlight; Australian and South African Models: 12V 35/36.5W halogen headlight

  • Front Tire: 3.00-21 4PR Dunlop K750A

  • Rear Tire: 4.60-17 4PR Dunlop K750A/K150

  • Fuel Tank Capacity: 11.0 L

Kawasaki Manual Features & Selected Content Preview

Publication Pages

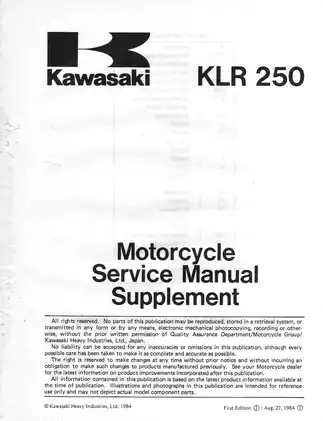

KLR250 Motorcycle Service Manual Supplement — 1985 KL250-D2; P/N 99924-1051-01; first edition August 27, 1984 116
KLR600 Motorcycle Service Manual — KL600-A1; P/N 99924-1050-01; required base manual 171

Kawasaki specifies that the supplement must be used with the included base manual. Its 16 chapters provide the KL250-D2-specific specifications, procedures, and exceptions, with references to the shared operations in the base manual. Using the two together keeps those common procedures tied to the correct KLR250 details.

PDF Search, Bookmarks, and Diagram Detail

Search and diagram access: The supplement has no PDF text search or embedded bookmarks. The base manual has a partial OCR text layer and chapter bookmarks, but some pages cannot be searched. Small wiring-diagram labels require zooming; rotating the diagram pages also makes them easier to read.

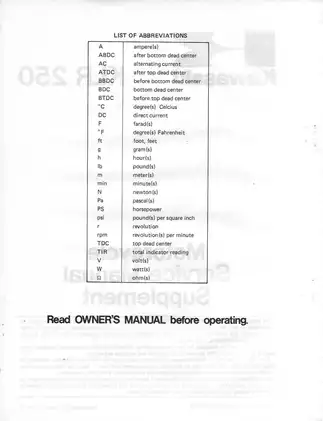

The ZIP contains two printable PDFs totaling 287 pages. That total already includes both manuals’ front and back covers and the base manual’s two opening reference sheets with decimal equivalents, unit conversions, and abbreviations.


Engine Overhaul, Chassis Service, and Electrical Testing

The following is a selected content overview, rather than a complete table of contents. Other included topics range from the periodic maintenance chart to additional considerations for racing.

  • Fuel and intake: Keihin CVK34 carburetor service, fuel-level inspection and adjustment, throttle and choke cables, air-cleaner maintenance, and California evaporative-emission components.

  • Cooling system: Coolant replacement and air bleeding, pressure testing, radiator and thermostat inspection, and water-pump mechanical-seal service.

  • Engine top end: Step-by-step procedures for camshaft removal and installation, cam timing, cylinder-head work, valve adjustment, and piston and cylinder inspection.

  • Clutch and lubrication: Clutch removal and inspection, primary gear and kick-starter service, oil-filter replacement, oil-pump work, and oil-pressure testing.

  • Crankshaft and transmission: Engine removal, crankcase separation and assembly, transmission servicing, crankshaft inspection, and balancer installation and chain timing.

  • Brakes and chassis: Wheel-bearing service, chain and sprocket work, hydraulic front and drum rear brakes, fork disassembly, rear suspension adjustment, and steering-stem repair.

  • Electrical diagnosis: Battery charging and condition checks, magneto and charging-system tests, CDI ignition checks, cooling-fan diagnosis, wiring diagrams, and harness routing.

Written primarily for motorcycle mechanics working in a properly equipped shop, these manuals also support basic owner maintenance and repair where the owner has the necessary mechanical knowledge, tools, and workshop experience.

Fuel, Cooling, and Market-Specific Equipment

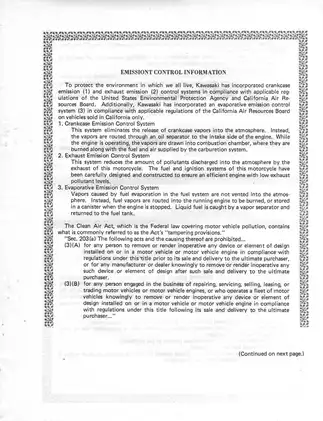

Fuel-system instructions cover cable inspection, adjustment, and lubrication, along with carburetor disassembly, service fuel-level checks, and fuel-tank inspection. The California evaporative-emission section identifies the canister, hoses, and liquid/vapor separator and includes component inspections and a separator test.

The cooling chapters combine leak diagnosis with radiator-cap testing, thermostat checks, and water-pump inspection. The supplement supplies its own mechanical-seal removal notes and impeller-shim selection information.

Country symbols distinguish Australian, Canadian, California, European, Swiss, South African, U.S., and West German specifications. U.S.-model exhaust sections describe muffler and spark-arrester cleaning.

Top-End and Lower-End Repair Details

Valve train: The supplement addresses rocker arms and shafts, camshaft bearing-clearance checks, and KACR automatic compression release. Valve work extends to seat inspection and repair, while the cylinder section includes piston-ring checks and standard and service-limit measurements.

Engine covers and shifting: Right- and left-cover work is supported by external shift-mechanism inspection and installation notes. Clutch references include friction-plate wear, plate warp, housing fingers, and hub splines.

Internal assembly: Shift-drum, shift-fork, and gear-groove inspections accompany crankshaft removal and installation, connecting-rod clearance checks, and crankshaft runout and alignment information. Assembly references identify transmission circlip and splined-washer orientation, output-shaft bushing oil-hole alignment, and the balancer’s punch marks and plated chain links.

Crankshaft disassembly and reassembly require a shop equipped for the specified precision work. Removed oil seals are replacement items; seal-guide references identify shafts that could damage a new sealing lip.

Wheel, Brake, and Suspension Work

Chassis inspection extends to axles, tire wear, spokes, rim runout, chain alignment, sprocket wear, and the rear-wheel coupling. Brake sections cover caliper and master-cylinder work, fluid changes, air bleeding, rear-brake assembly, and brake-light switch adjustment.

Fork service includes oil-level checks, guide-bush inspection, and seal installation. Rear-shock damping and spring preload, steering-stem bearings, and rear-frame removal are also covered.

The wheel chapter warns that supporting the front wheel on its brake disc can warp or damage the disc. Cooling-system pressure work, brake bleeding, battery charging, and supported-wheel or fork service require appropriate equipment and secure motorcycle support.

Electrical Tests, Diagrams, and Workshop Tools

Fault isolation: Battery procedures distinguish initial, ordinary, and test charging. Electrical checks cover loaded charging voltage, stator resistance and insulation, the regulator/rectifier, ignition coil, CDI unit, exciter and pickup coils, and diodes.

Meter and gauge sections include tachometer, temperature-gauge, and sensor tests. Cooling-fan checks distinguish motor, relay, switch, and wiring faults; continuity checks and routing drawings support harness inspection.

Named references include the KL250-D2 Wiring Diagram, Ignition Timing/Engine Speed Relationship chart, Battery Charging Rate/Time Table, Balancer Chain Timing view, Drive Shaft/Output Shaft exploded assembly, and Wiring Routing drawing.

Exploded views carry component-specific torque, lubrication, liquid-gasket, and locking-agent callouts. Service-data sections add tightening sequences, fluid information, clearances, wear limits, and electrical test specifications; the troubleshooting guide groups symptoms and possible causes.

Tool references include Fuel Level Gauge 57001-1017 and Oil Pressure Gauge 57001-164 with Adapter 57001-1188. Major assembly work identifies Crankshaft Installing Jig 57001-1174, Flywheel Holder 57001-1184, Flywheel Puller 57001-1196, Front Fork Oil Seal Driver 57001-1104, and Stem Bearing Remover 57001-1107.

The flywheel section warns that striking the puller bar or magneto can bend parts or weaken the magnets.

A Preview of Valve-Clearance and Oil-Pressure Data

For the KL250-D2, the valve-adjustment section specifies 0.19–0.24 mm clearance for both intake and exhaust valves with the engine cold at room temperature.

The lubrication section specifies oil pressure above 98 kPa at 4,000 r/min with the oil at 90°C. These model-specific test conditions accompany the pressure-gauge and adapter references.
