Kawasaki Tecate KXT250 ATV Service Manual Set 1984–1986 (P/N 99924-1046-02)

215 Pages • ZIP Download: 2 Printable PDFs (English)

4.5starstarstarstarstar_half(2)
$17.11 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Kawasaki Models Covered & Key Technical Specifications

Model: Tecate KXT250

Sub-models / Variants: KXT250-A1 (US Model), KXT250-A1 (Canadian Model), KXT250-A2, KXT250-B1

Model Years: 1984–1986 (1984, 1985, 1986)


  • Engine: 2-stroke, single cylinder, liquid-cooled, 249 mL

  • Bore and stroke: 70.0 x 64.9 mm

  • Carburetion: Mikuni VM32SS (KXT250-A1); Mikuni VM34SS (KXT250-A2, KXT250-B1)

  • Transmission: 5-speed, constantmesh return shift

  • Front Suspension: Telescopic fork (pneumatic), 220 mm wheel travel (KXT250-A1, KXT250-A2); 250 mm wheel travel (KXT250-B1)

  • Rear Suspension: Swing arm (uni-trak), 210 mm wheel travel (KXT250-A1, KXT250-A2); 250 mm wheel travel (KXT250-B1)

  • Fuel Tank Capacity: 13.8 L (KXT250-A1, KXT250-A2); 8.5 L (KXT250-B1)

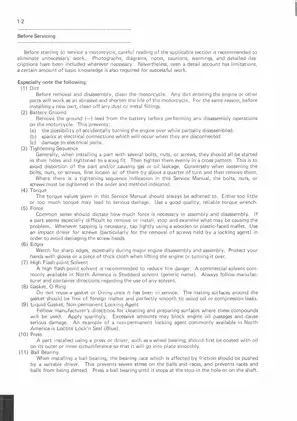

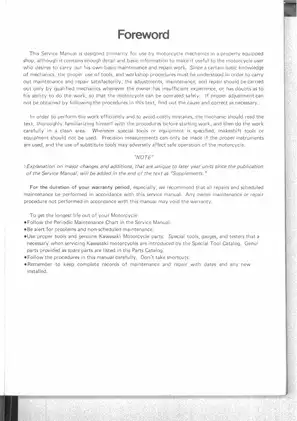

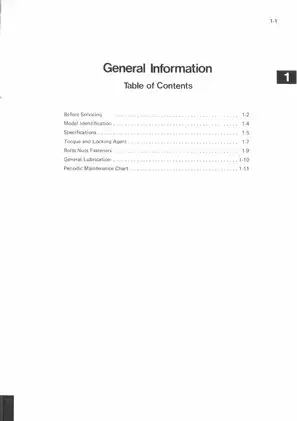

Kawasaki Manual Features & Selected Content Preview

Publication Pages

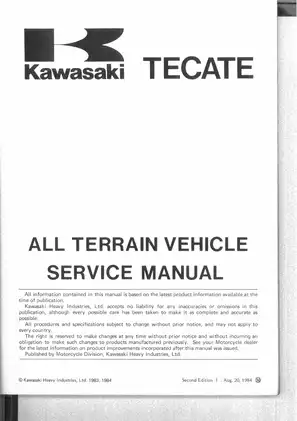

Kawasaki Tecate All Terrain Vehicle Service Manual, P/N 99924-1046-02 — 1984 KXT250-A1, including U.S. and Canadian specifications, plus the 1985 KXT250-A2 update. Second Edition, August 20, 1984. 134
Kawasaki KXT250 Tecate Service Manual Supplement, P/N 99924-1068-51 — 1986 KXT250-B1. First Edition, August 23, 1985. 81

The supplements document model-specific changes and must be used with the included base manual for unchanged maintenance and repair procedures.

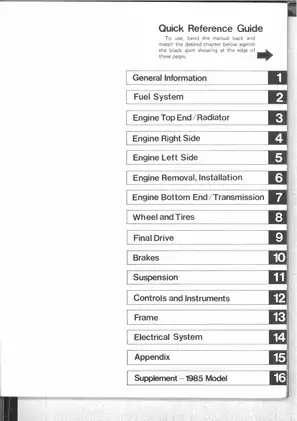

Printable PDFs, Chapter Bookmarks, and Diagram Detail

Text search and wiring labels: Both PDFs have embedded chapter bookmarks, but PDF text search is unavailable. Small wiring-diagram labels are readable when enlarged.

The ZIP download contains two printable PDFs with 215 pages total, including three opening pages in the base manual and five in the B1 supplement. The 15-page A2 update is already included in the base manual’s page count.


Engine Overhaul, KIPS, and Chassis Service

The following selected repair topics illustrate the coverage rather than reproduce the full contents. Other sections include control-cable adjustment and spark-arrester cleaning.

  • Fuel system: Carburetor service fuel-level and float checks, reed-valve inspection, air-cleaner service, and fuel-system cleaning.

  • Top end and cooling: Cylinder-head, piston, ring, and exhaust work; radiator pressure testing, coolant service, water-pump repair, and B1 KIPS exhaust-valve timing.

  • Engine and transmission: Engine removal, crankcase splitting, crankshaft inspection and alignment, transmission assembly, clutch inspection, shift-mechanism checks, and kickstarter service.

  • Wheels and final drive: Tubeless-tire removal and installation, wheel-bearing replacement, drive-chain adjustment and wear inspection, sprocket service, and rear-axle removal.

  • Brakes: Model-specific front drum and hydraulic disc procedures, fluid changing, bleeding, pad and disc inspection, and master-cylinder and caliper repair.

  • Steering and suspension: Steering-bearing service, fork disassembly and assembly, Uni-Trak linkage inspection, and rear-shock disassembly, adjustment, and oil service.

  • Electrical diagnosis: Dynamic ignition-timing checks, CDI, ignition-coil and magneto-stator testing, lighting-circuit diagnosis, model-specific wiring diagrams, and symptom-based troubleshooting.

Written primarily for trained mechanics working in a properly equipped shop, these manuals also provide basic maintenance and selected repair information for mechanically experienced owners with the correct tools.

A2 Revisions and B1 KIPS Diagnosis

The year-specific sections help distinguish parts and procedures before assembly. For the A2, Kawasaki identifies a revised clutch push rod, clutch release, and clutch springs that must not be mixed with the earlier parts. The B1 supplement also revises the A2 carburetor’s service fuel-level and float-height data.

The B1 introduces the Kawasaki Integrated Power-valve System (KIPS), with exhaust-valve assembly and timing illustrations, operating-rod checks, and advancer inspection. Its troubleshooting guide connects poor low-speed running with sub-ports stuck open and high-speed power loss with sub-ports stuck closed, helping direct inspection toward the affected mechanism.

Over-rotating the B1 KIPS advancer lever can disturb the holder’s internal ball arrangement and require disassembly.

Internal Engine Repair and Workshop Tools

Step-by-step procedures cover crankcase separation, transmission assembly, and crankshaft inspection and alignment. Crankshaft disassembly and reassembly require a shop equipped for the specified tolerances.

The base manual identifies an ELECTRO FUSE cylinder and prohibits boring or honing it. Its top-end instructions distinguish cylinder replacement from piston, ring, and clearance inspection.

Misaligning the kickstarter ratchet changes spring preload and can weaken or break the spring.

The engine-disassembly and chassis-disassembly flow charts show component-removal relationships. Carburetor and engine-top exploded views support identification and assembly alongside Kawasaki tool references, including Crankcase Splitting Tool 57001-1098, Bearing Driver Set 57001-1129, and Gear Holder 57001-302.

Brake and Suspension Differences

The A1 uses a cable-operated front drum brake and hydraulic rear disc brake. The A2 update adds hydraulic front-brake service; the B1 supplement provides its revised front-caliper and master-cylinder details.

B1 suspension coverage adds fork guide-bushing inspection, rebound and compression damping adjustments, and Uni-Trak link-length adjustment. Uni-Trak and rear-shock assembly views accompany the procedures, including Fork Oil Seal Driver 57001-1219.

Rear-shock repair involves a nitrogen-charged reservoir, so Kawasaki’s pressure-release warnings and specified shop equipment matter before that work begins.

Electrical Tests and Troubleshooting References

Separate A1, A2, and B1 wiring diagrams support the model-specific ignition and lighting tests. The base manual explains why an ignition-coil resistance check cannot detect every insulation fault under high voltage and describes an arcing-distance test with the Kawasaki Electrotester.

The appendix covers starting, low- and high-speed running, shifting, braking, steering, and suspension faults. Torque and locking-agent tables, capacities, wear limits, pressure-test data, and adjustment specifications accompany the repair chapters.

Examples of B1 Clearance, Fork-Level, and Ignition Data

The B1 piston/cylinder inspection section specifies a standard clearance of 0.054–0.064 mm.

For B1 fork service, the specified oil level is 154 ±2 mm below the top of the inner tube, measured with the fork fully compressed and the main spring removed.

The B1 electrical section lists ignition-coil primary resistance at 0.25–0.35 Ω between the coil terminals. The base electrical precautions specify resistance measurements with the component cold, at room temperature.
