2008–2011 Kawasaki KFX450R ATV Service Manual (P/N 99924-1386-02)

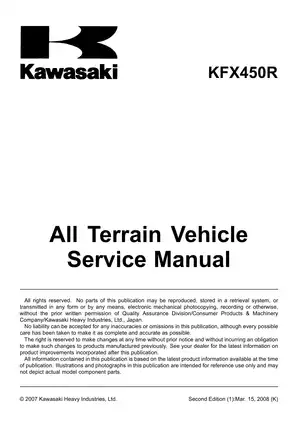

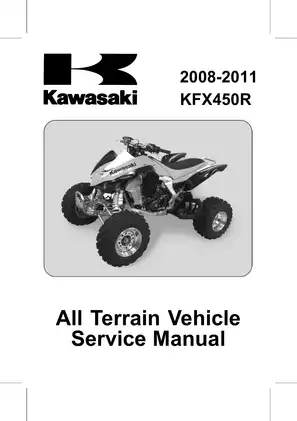

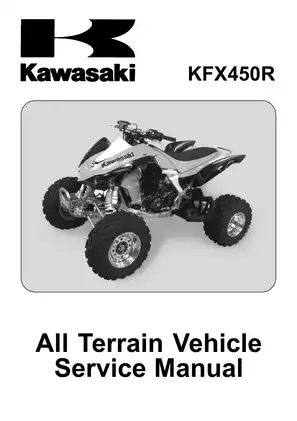

Kawasaki's KFX450R ATV Service Manual for 2008–2011 is the Second Edition, published March 15, 2008 (P/N 99924-1386-02). Model-application entries identify KSF450B8F, KSF450B8FA, KSF450B9F, and KSF450B9FA.

• DFI diagnosis: Self-diagnosis modes, FI blink-code tables, sensor and injector tests, and ECU power-supply checks.

• Engine repair: Engine removal and installation, valve-clearance adjustment, shim selection, camshaft timing, and cylinder-head and piston inspection.

• Clutch and transmission: Wet multi-disc clutch assembly, external shift mechanism service, crankcase disassembly, and transmission and reverse-mechanism repair.

• Cooling and lubrication: Cooling-system pressure testing, water-pump seal and bearing replacement, oil-pump service, and oil-pressure measurement.

• Brakes and chassis: Caliper and master-cylinder rebuilding, brake-line bleeding, drive-chain service, wheel alignment, and swingarm and steering-bearing work.

• Electrical documentation: DFI and model-specific wiring diagrams, ECU terminal assignments, charging and ignition tests, starter-motor overhaul, and routing views.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports basic owner maintenance and repair where mechanical knowledge, tool use, and workshop procedures are already understood.

DFI Diagnosis and Fuel Delivery

The DFI System Troubleshooting Guide links starting and running symptoms to component tests. FI blink-code charts, fail-safe backup modes, and ECU terminal assignments help trace sensor and ignition faults; code reading is documented without a scan tool. The Kawasaki Diagnostic System (KDS) connection is also identified.

Keihin throttle-body service is accompanied by fuel-pressure, fuel-flow, and injector-signal tests. The pressure regulator, screen, and filter are built into the fuel pump; the manual calls for pump replacement rather than separate regulator removal or filter cleaning.

The vehicle-down sensor section includes mounting-orientation guidance and warns that incorrect installation can cause sudden loss of engine power.

Engine, Clutch and Transmission Repair

Valve-guide and seat repair, piston-ring inspection, shim selection, and camshaft timing are covered. The plated cylinder is specified for replacement when worn beyond its service limit, rather than boring or honing. Incorrect handling of the non-return camshaft chain tensioner can damage the tensioner and chain.

Transmission assembly views separately identify the KSF450B8F/B8FA and KSF450B9F/B9FA layouts. Crankshaft and connecting-rod inspection, balancer alignment, and internal gear, shift-fork, and shift-drum checks are included. Crankshaft rebuilding requires a suitably equipped shop.

Clutch sections identify the different friction plates and document stack-length, release-mechanism, and housing-clearance checks. Exploded views are paired with fastener torque and locking-agent tables.

Cooling and Oil Circulation

Cooling procedures cover radiator-cap and system-pressure tests, coolant bleeding, and water-pump seals and bearings. The Coolant Flow Chart and Lubrication System Chart accompany semi-dry-sump lubrication coverage, including separate feed and scavenge pumps, oil screens, relief-valve inspection, and oil-pressure measurement.

Brakes, Suspension and Steering

Brake chapters include caliper and master-cylinder rebuilding, disc wear and runout checks, and parking-brake adjustment. Suspension sections cover damping and spring-preload adjustment, swingarm and linkage bearings, and shock-absorber inspection.

Steering work includes knuckle, tie-rod, and steering-stem inspection, front-wheel toe-in, and steering centering. Fuel and brake service requires the manual's precautions for pressurized lines and safety-critical components.

Wiring Diagrams and Electrical Tests

Separate wiring diagrams distinguish the KSF450B9F EUR model from the other listed configurations. Electrical testing covers the alternator and regulator/rectifier, ignition resistance and peak voltage, and starter circuits.

The Cable, Wire and Hose Routing views cover harnesses, brake hoses, and control cables. Diagnostic tool references include Throttle Sensor Setting Adapter 57001-1538 and Peak Voltage Adapter 57001-1415.

Sample Fuel, Valve and Ignition Specifications

These are a few examples of the fuel-system, valve-train, and ignition specifications in the manual. The Keihin throttle body has a specified bore of 42 mm.

For valve-clearance inspection, the standard intake clearance is 0.10–0.15 mm with the engine cold at room temperature.

The ignition section specifies a spark-plug gap of 0.8–0.9 mm and crankshaft-sensor resistance of 173–211 Ω, measured with the sensor cold at room temperature.

Text Search, Bookmarks and Wiring Detail

Search and diagram labels: Service text is searchable, with embedded bookmarks for chapters and individual procedures. Many diagram labels are image-based and cannot be found by text search. Small component names and wire-color labels in the wiring diagrams are readable when enlarged.

Supplied as one printable, 500-page PDF. The total includes the front matter, model-application back cover, seven blank pages, and three placeholder pages.
