2004–2006 Kawasaki Z750 Service Manual (P/N 99924-1323-03)

• Covers the Kawasaki Z750 ZR750-J1 (2004), ZR750-J2 (2005), and ZR750J6F (2006) in a 563-page PDF of factory publication P/N 99924-1323-03.
• Digital Fuel Injection (DFI) coverage includes fault-code retrieval and clearing, fuel pressure and flow testing, injector checks, and engine vacuum synchronization.
• Engine repair sections address removal and installation, camshaft timing, cylinder head disassembly, valve guide replacement, valve seat repair, and piston and ring inspection.
• Crankcase and drivetrain work extends to bearing insert selection, six-speed transmission disassembly, shift mechanism inspection, and wet clutch plate stack adjustment.
• Cooling and lubrication procedures cover pressure testing, water pump mechanical seal replacement, oil pump service, and oil pressure diagnosis.
• Chassis chapters detail brake caliper and master cylinder rebuilding, brake line bleeding, front fork overhaul, steering bearing replacement, and swingarm bearing inspection.
• Electrical sections cover charging system and stick coil tests, starter motor repair, regional wiring diagrams, and 2006 immobilizer diagnosis and key registration.

Manual Organization and Model Differences

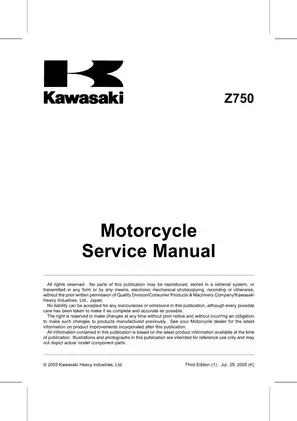

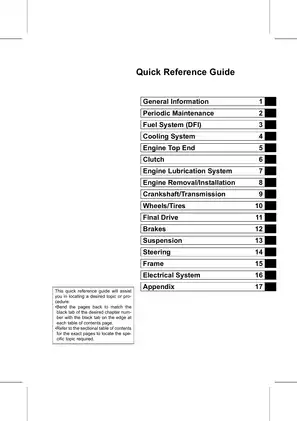

This is Kawasaki’s Third Edition (1), dated July 29, 2005. Its 17 chapters run from periodic maintenance through system repair and the troubleshooting appendix. The engine coverage addresses the liquid-cooled DOHC four-cylinder, while the model-application table supplies beginning frame numbers for each covered year.

The clutch instructions distinguish the spring and spring seat arrangement used on J1/J2 engines ZR750JE000001–ZR750JE026045. Fork specifications also separate the 2006 model’s oil capacity and oil level from the earlier setup.

DFI, Wiring, and Immobilizer Diagnosis

The fuel system section separates current faults from stored fault history. A DFI Diagnosis Flow Chart, sensor input/output checks, and ECU power and ground tests support fault isolation beyond the displayed service code. Separate DFI Wiring Diagrams and ECU terminal assignments distinguish the earlier models from the 2006 version.

The main throttle sensor, subthrottle sensor, and subthrottle valve actuator are factory-set parts of the throttle-body assembly. Their test procedures lead to assembly replacement rather than individual adjustment when the component is defective.

Earlier-model wiring is separated by market, including Canada/New Zealand, Australia, and Malaysia; the 2006 diagrams distinguish Australia from other markets. The immobilizer section covers lost key cases and registration after ignition switch or ECU replacement. It includes a Spare User Key Registration Flow Chart and identifies Key Registration Unit 57001-1582. Master key loss is treated separately because the master key code in the existing ECU cannot be rewritten.

Drivetrain and Chassis Repair Details

Crankshaft and connecting rod bearing tables use factory identification marks and color-coded inserts. Transmission assembly instructions address Kawasaki’s positive neutral finder, while final drive coverage includes chain cutting and riveting, sprocket replacement, and rear wheel coupling bearing and damper inspection.

The suspension chapter details fork seal and guide bushing replacement, plus Uni-Trak rocker arm and tie-rod inspection. Rear shock instructions cover preload and rebound adjustment, inspection, removal, and replacement—not internal damper rebuilding. The appendix’s cable, wire, and hose routing illustrations support reassembly around the steering head, throttle bodies, and under-seat electrical equipment.

Factory Specifications and Assembly Notes

Exploded assembly views identify fasteners, lubrication points, and replacement parts. The repair sections provide component-specific torque tables, fluid capacity specifications, wear limits, and electrical test values. Inlet and exhaust Valve Clearance Adjustment Charts cover shim selection; the Coolant Flow Chart and Engine Oil Flow Chart show the respective circulation paths.

Connecting rod big-end tightening is documented through bolt length measurement and rotation-angle methods, with different guidance for new and reused components. The non-return cam-chain tensioner carries a specific caution: loosening and retightening it without the required reset can damage both the tensioner and chain.

Pressurized fuel systems and brake repairs require appropriate precautions. Always ensure you have the proper mechanical training or consult a qualified technician before attempting major service work.
